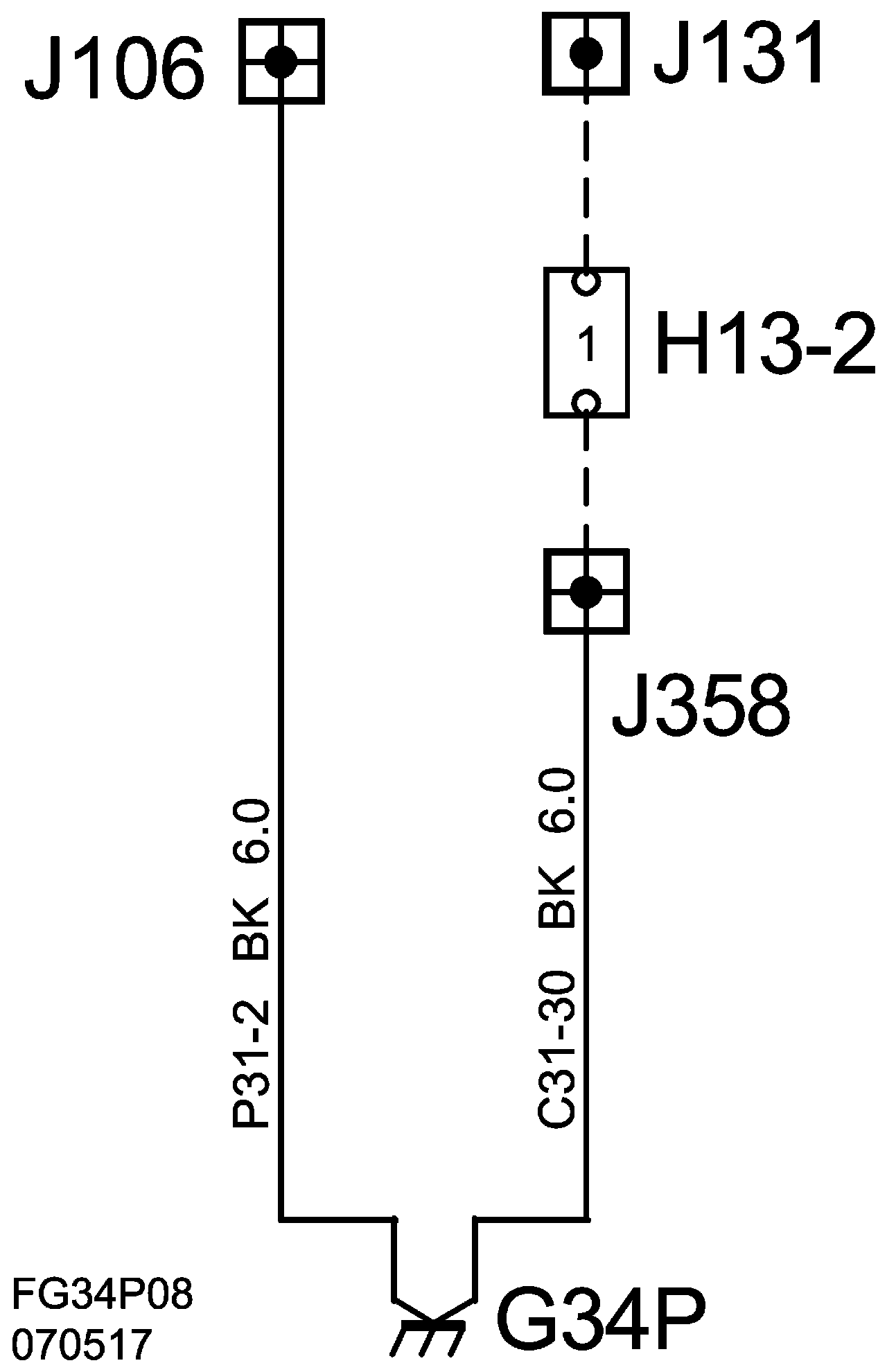

Grounding Point G34P
Grounding Point G34P
Grounding Point G34P
Grounding Point G34P:

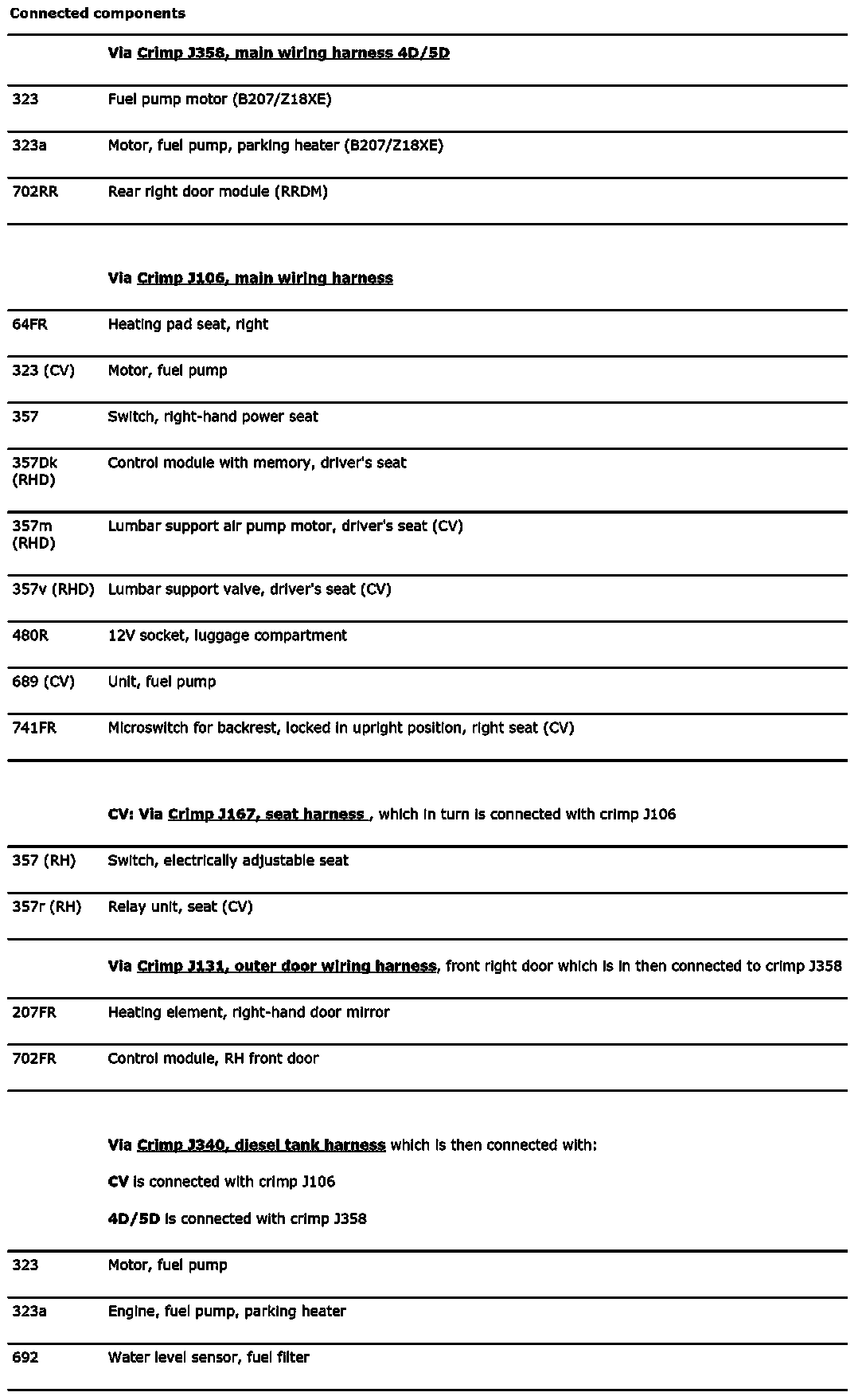

Connected Components:

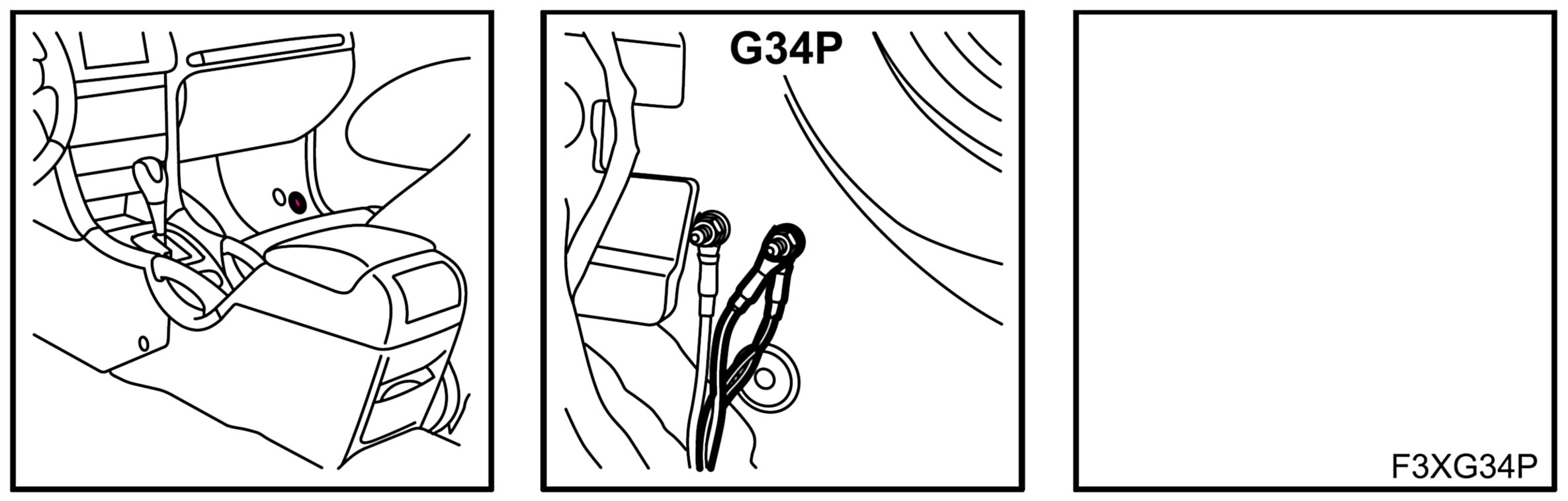

Location:
By the floor below the right A-pillar (black tape)
