Grounding Point G33S
Grounding Point G33S
Grounding Point G33S
Grounding Point G33S:

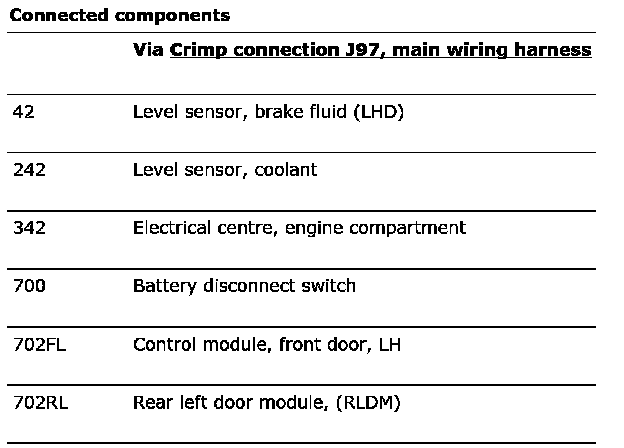

Connected Components:

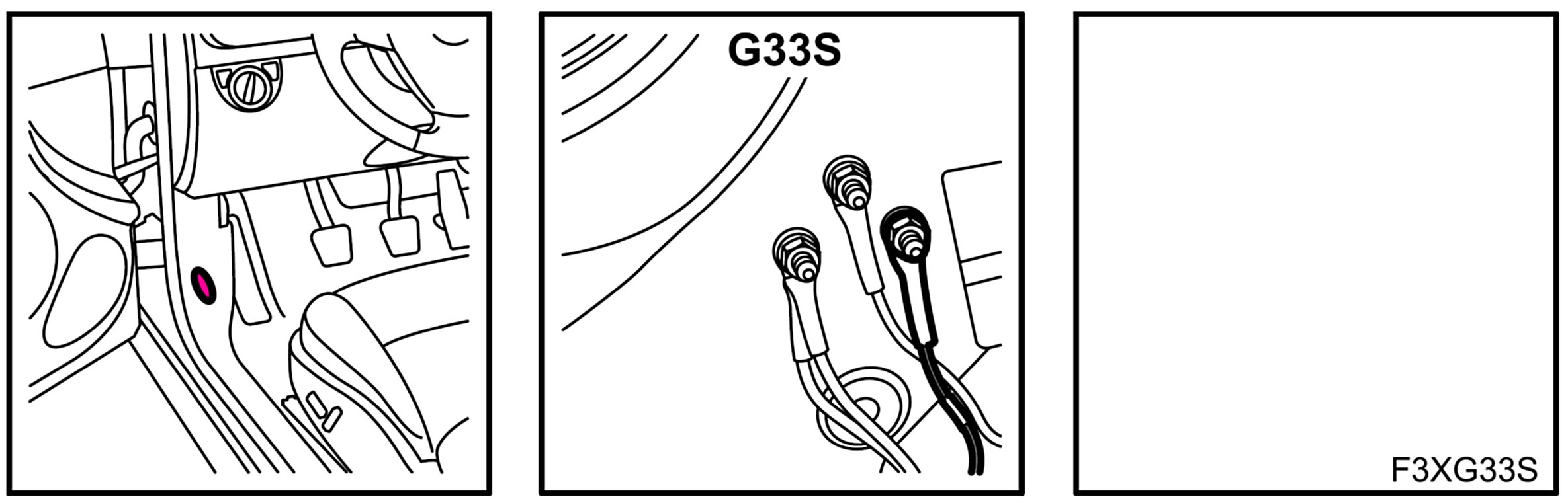

Location:
At the floor below the left A-pillar (BK/WH cable)
