9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

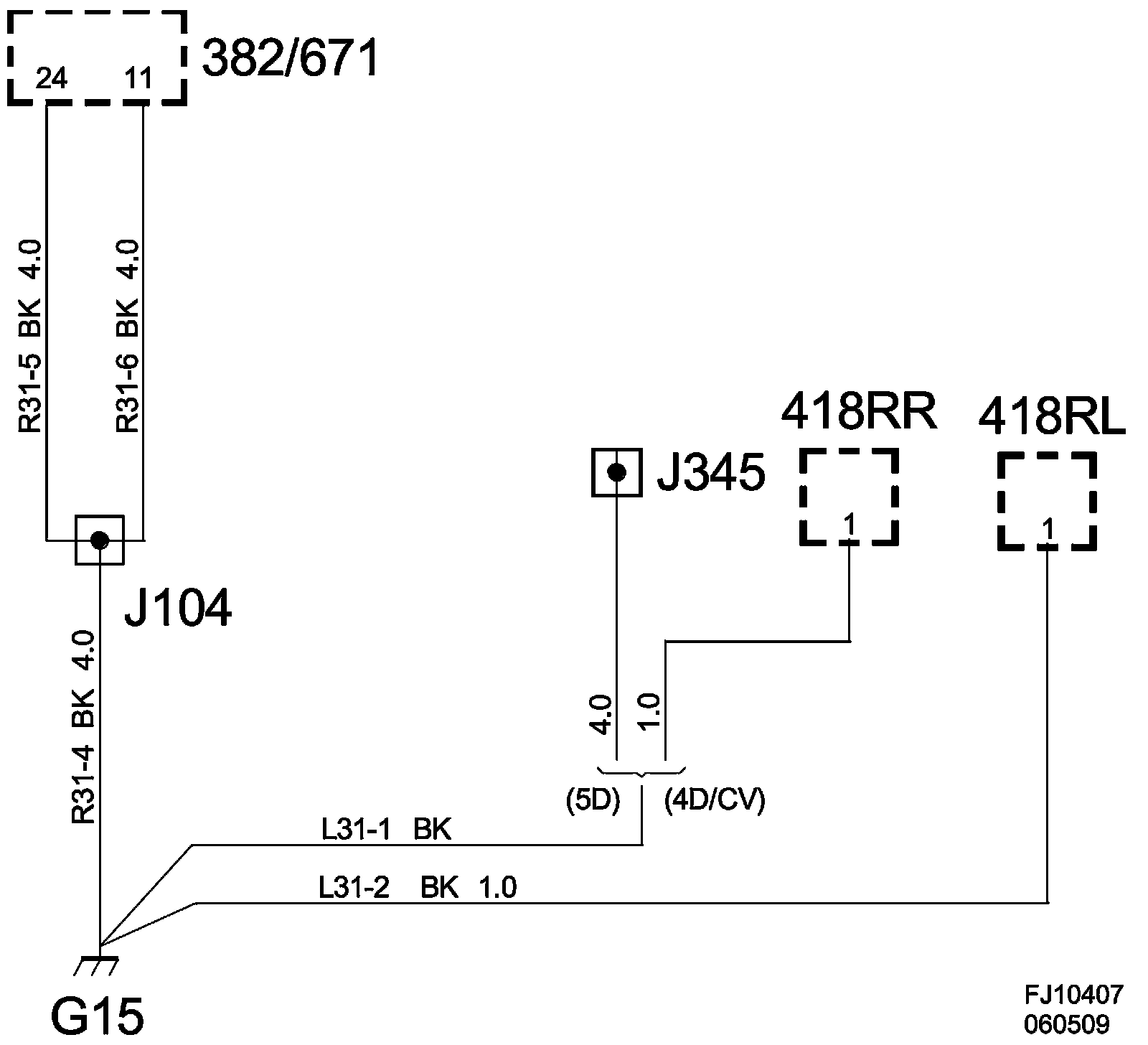

Grounding Point G15
Grounding Point G15
Grounding Point G15
Grounding Point G15:

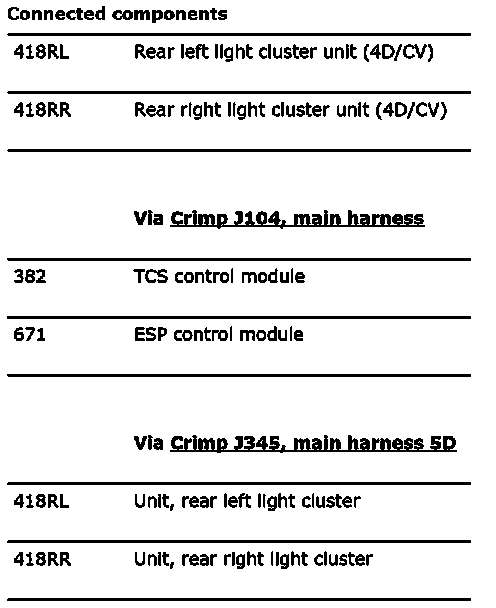

Connected Components:

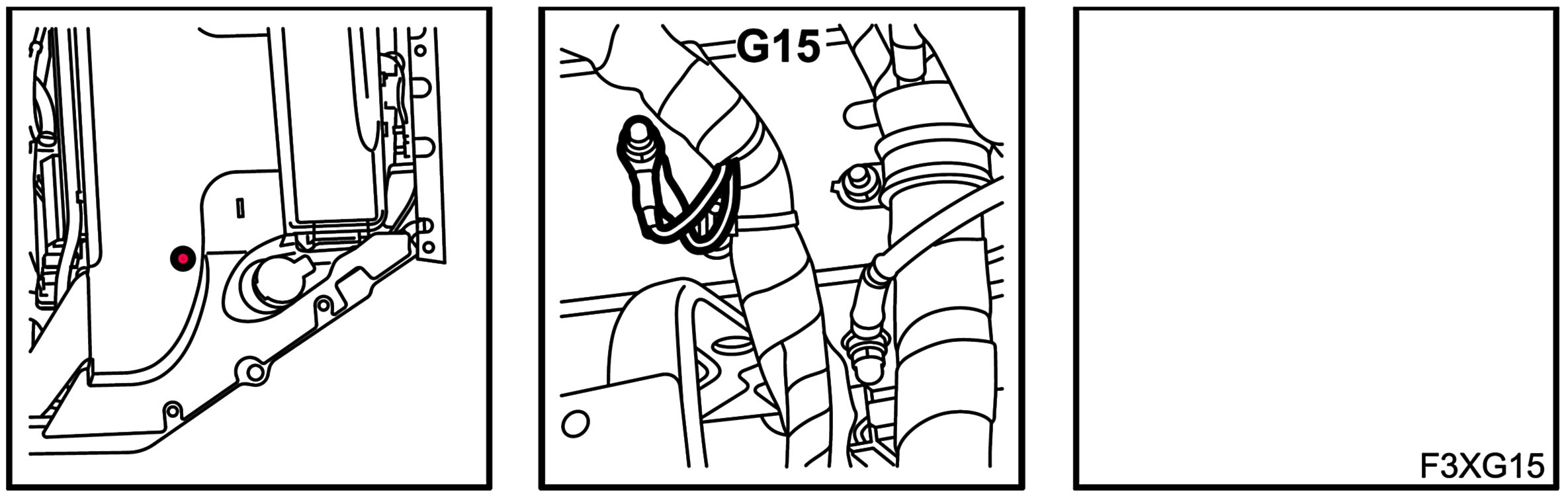

Location:
On left-hand structural member under battery
