Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trailer Connector

Trailer Connector

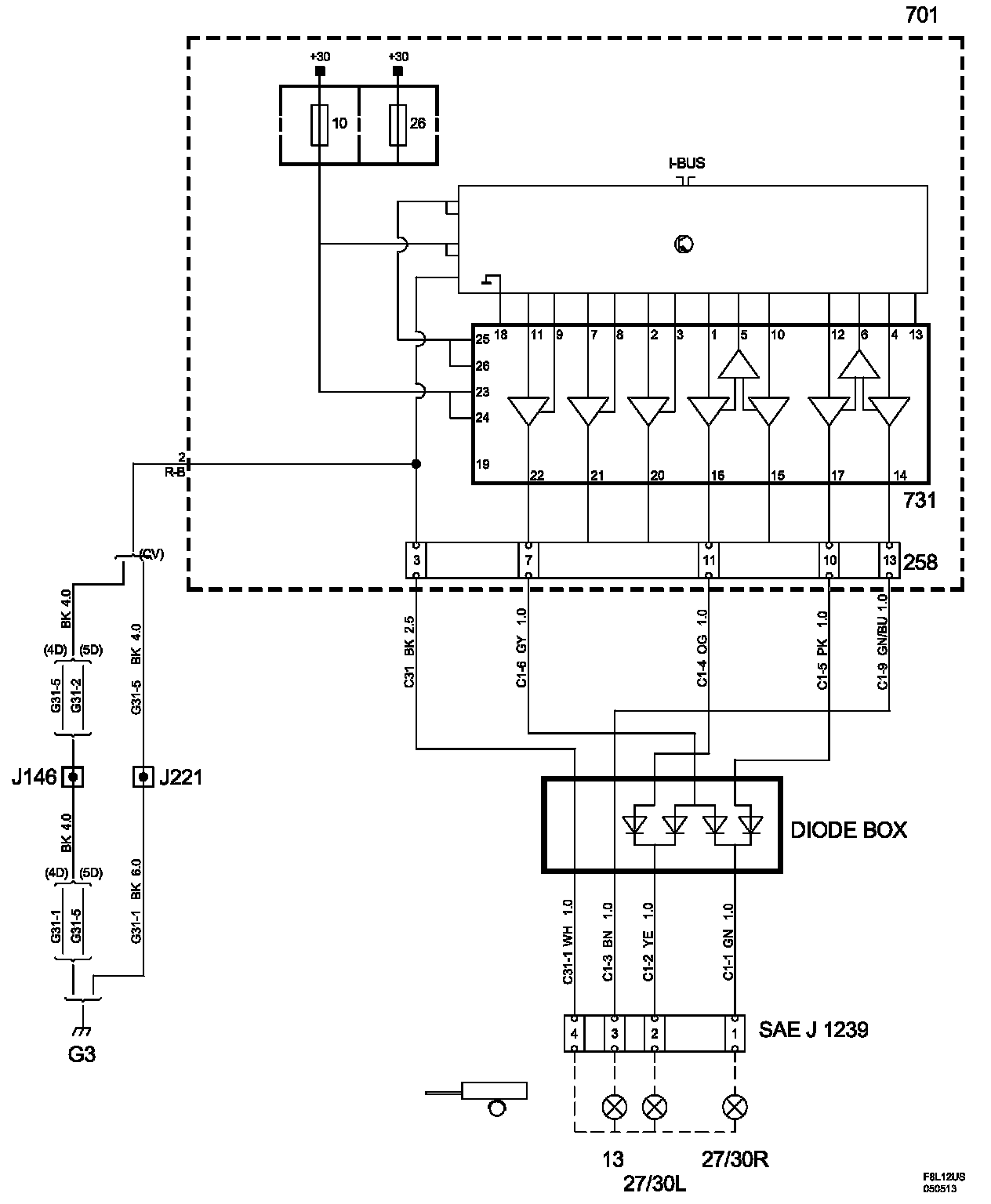

Trailer Installation, US/CA Market:

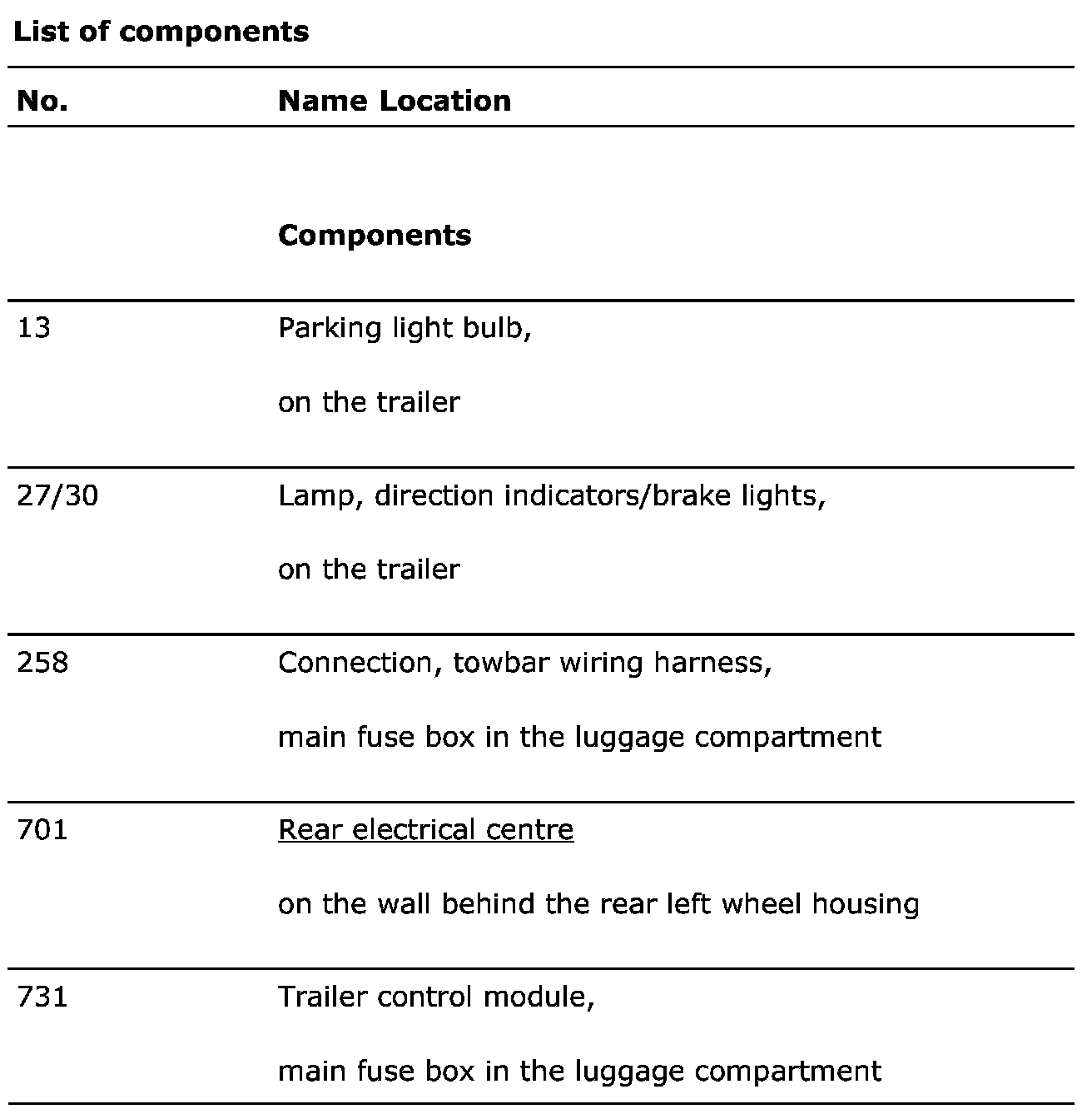

List Of Components (Part 1):

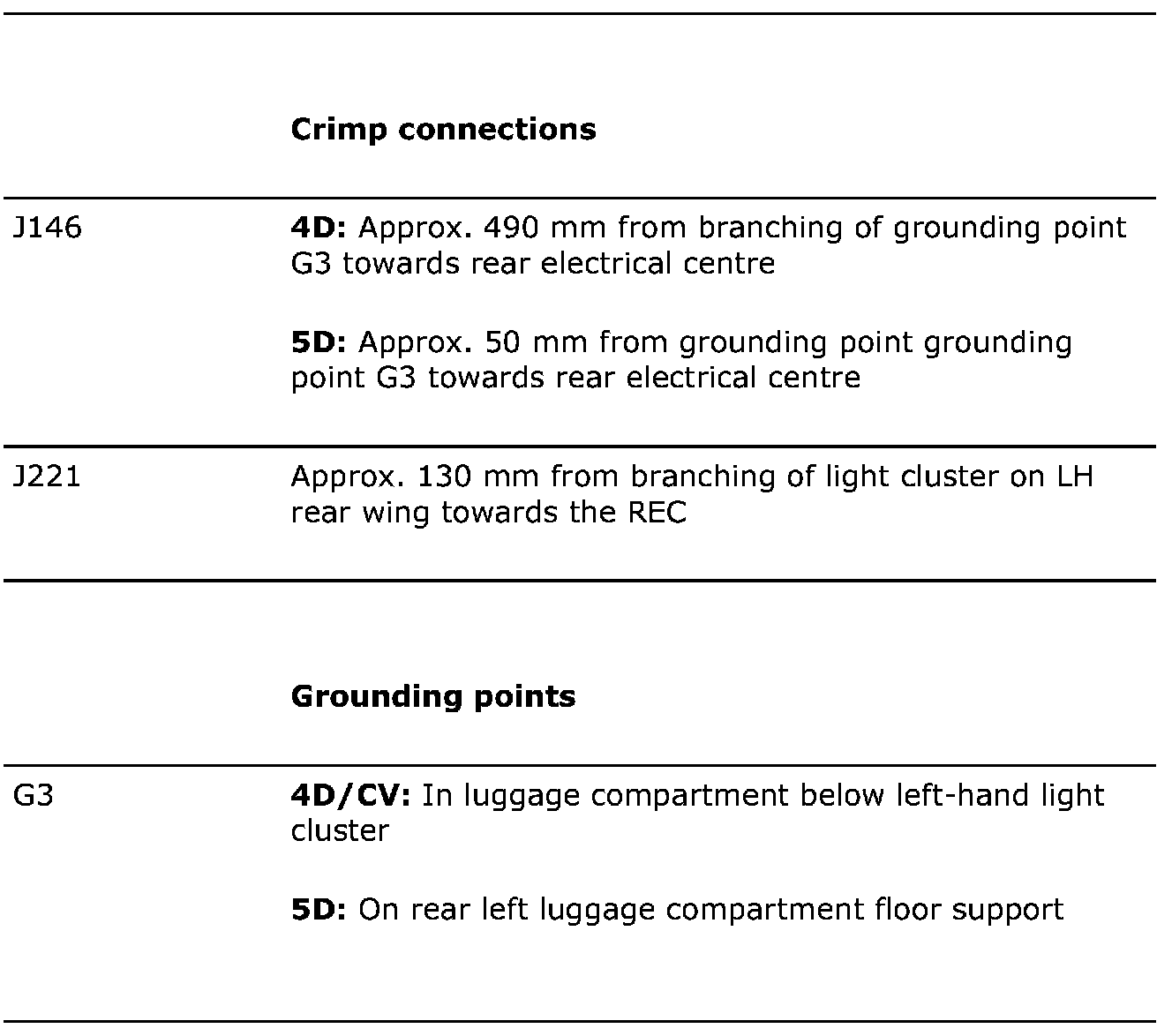

List Of Components (Part 2):
