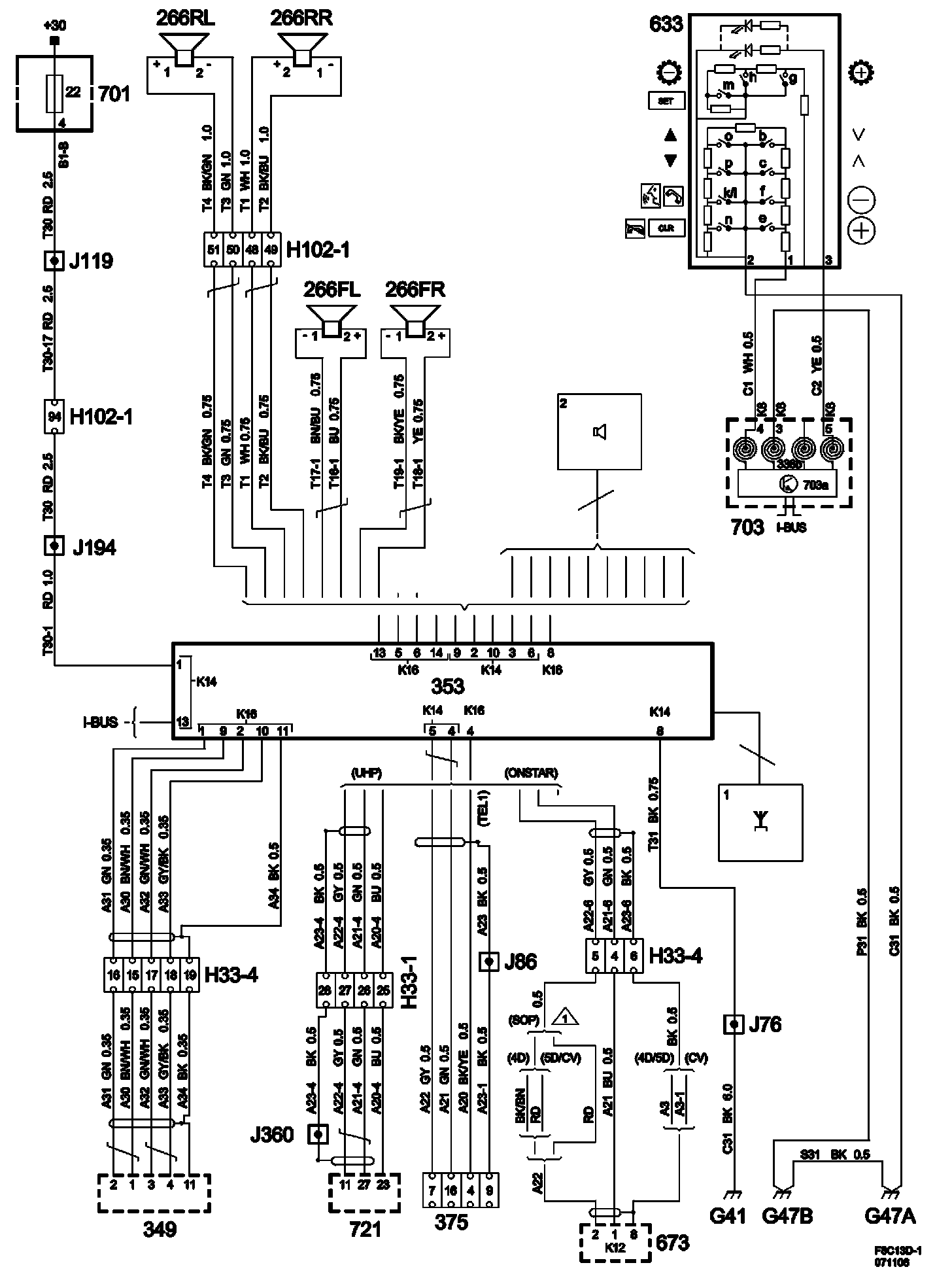

System Diagram



Audio System, Main Unit





List of components
1. Antenna system
2. Audio amplifier
Audio amplifier, bass speaker
Audio amplifier, front
Audio amplifier, rear

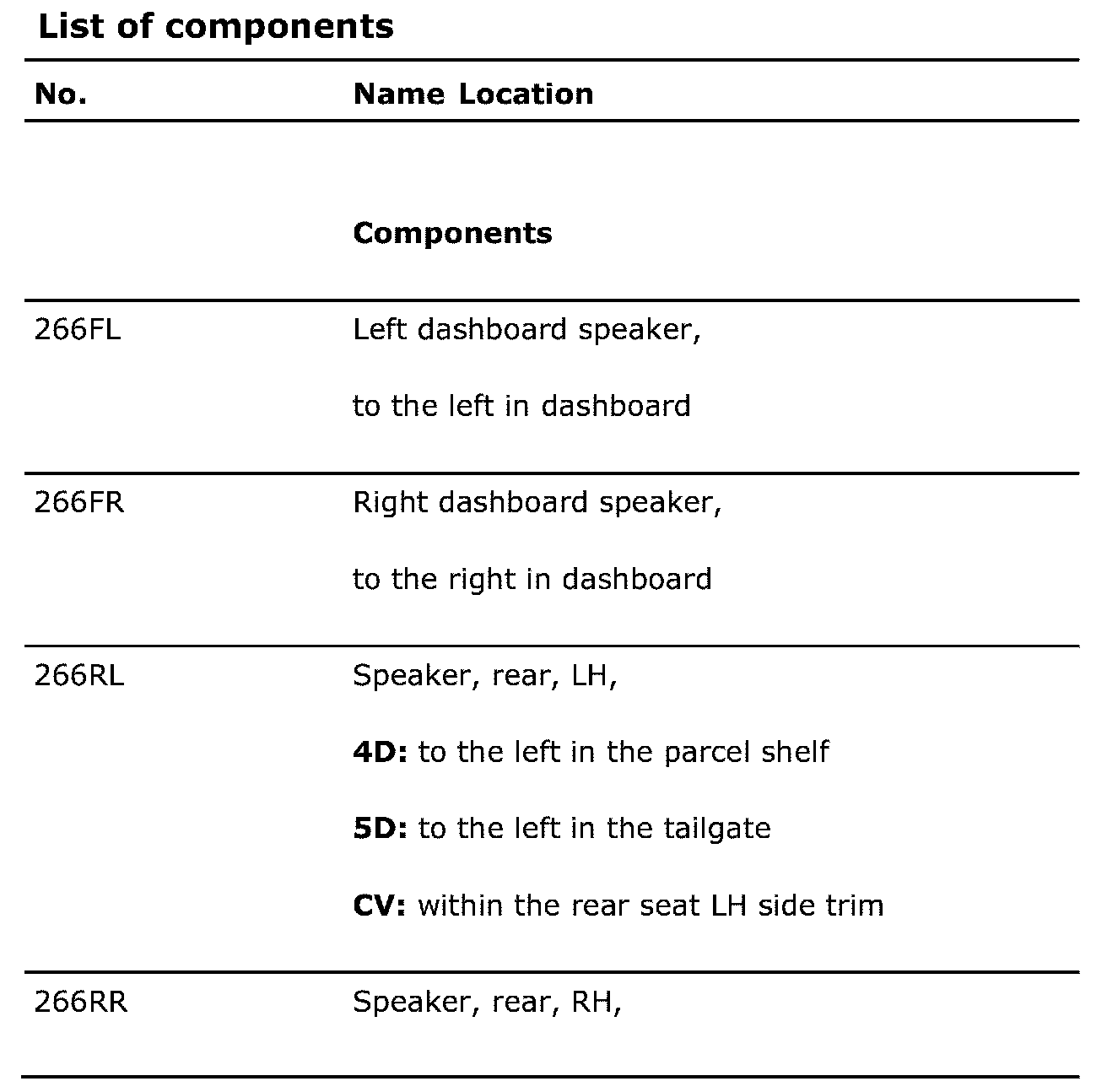

List Of Components (Part 1):

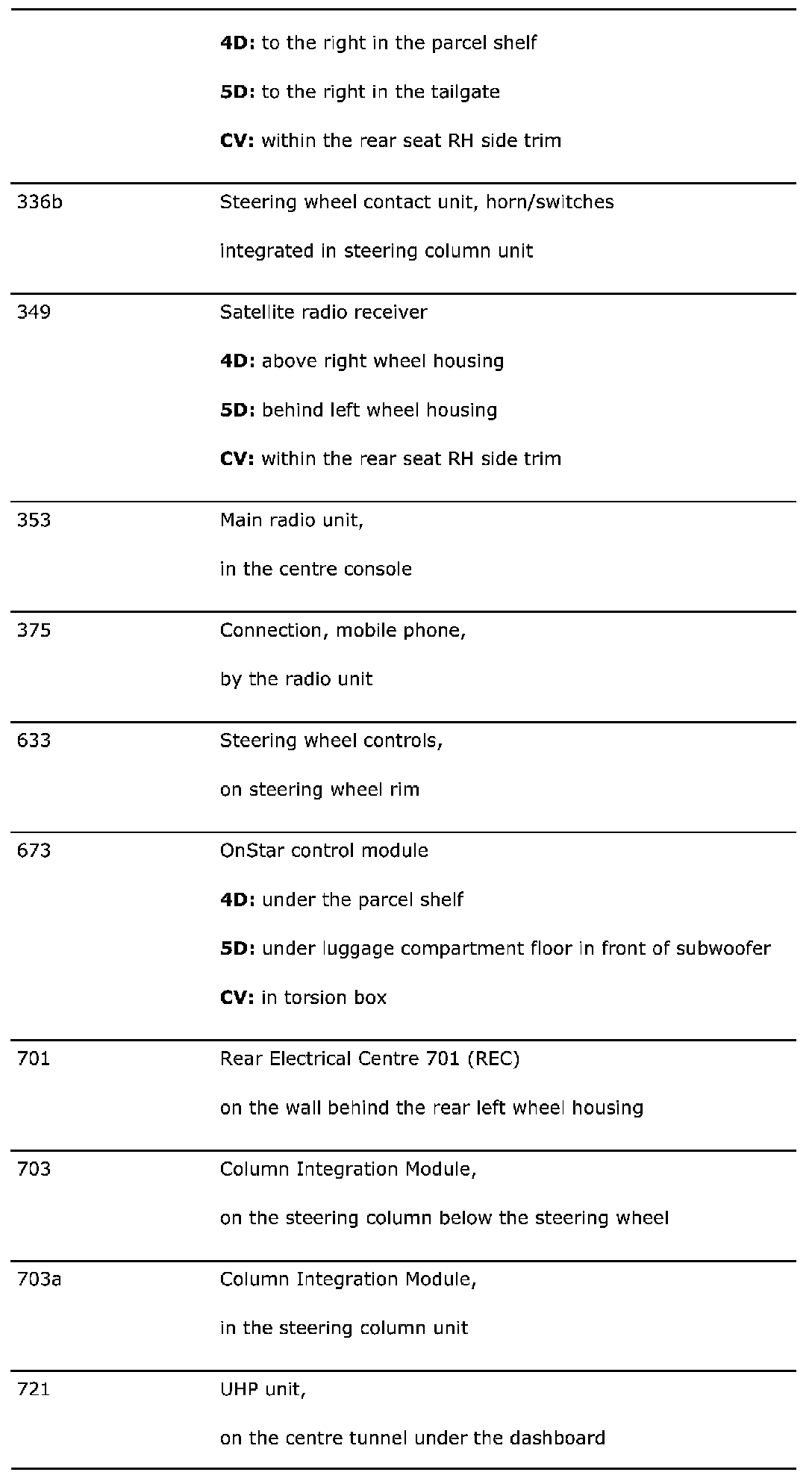

List Of Components (Part 2):

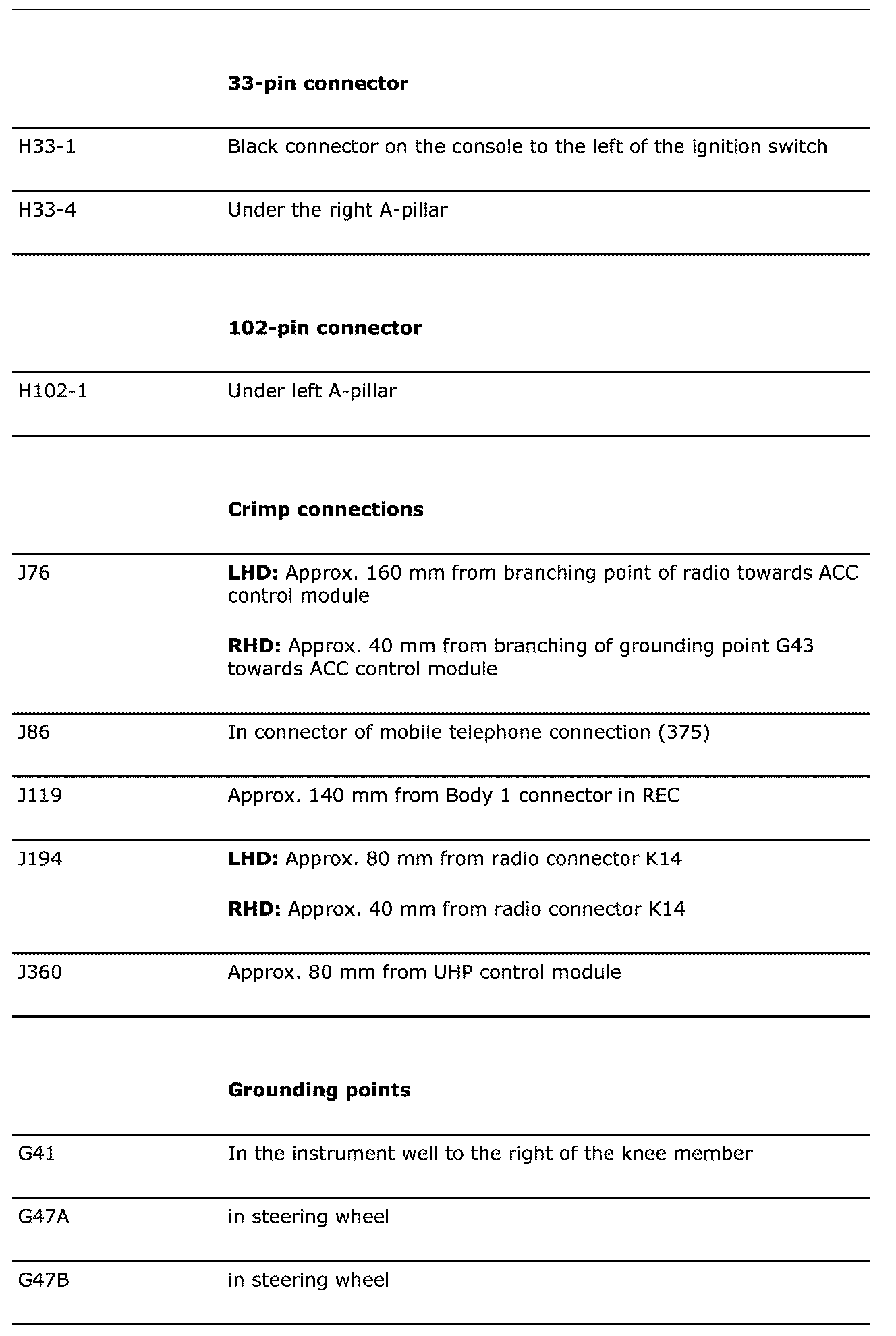

List Of Components (Part 3):
