Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Radio Receiver

Radio Receiver

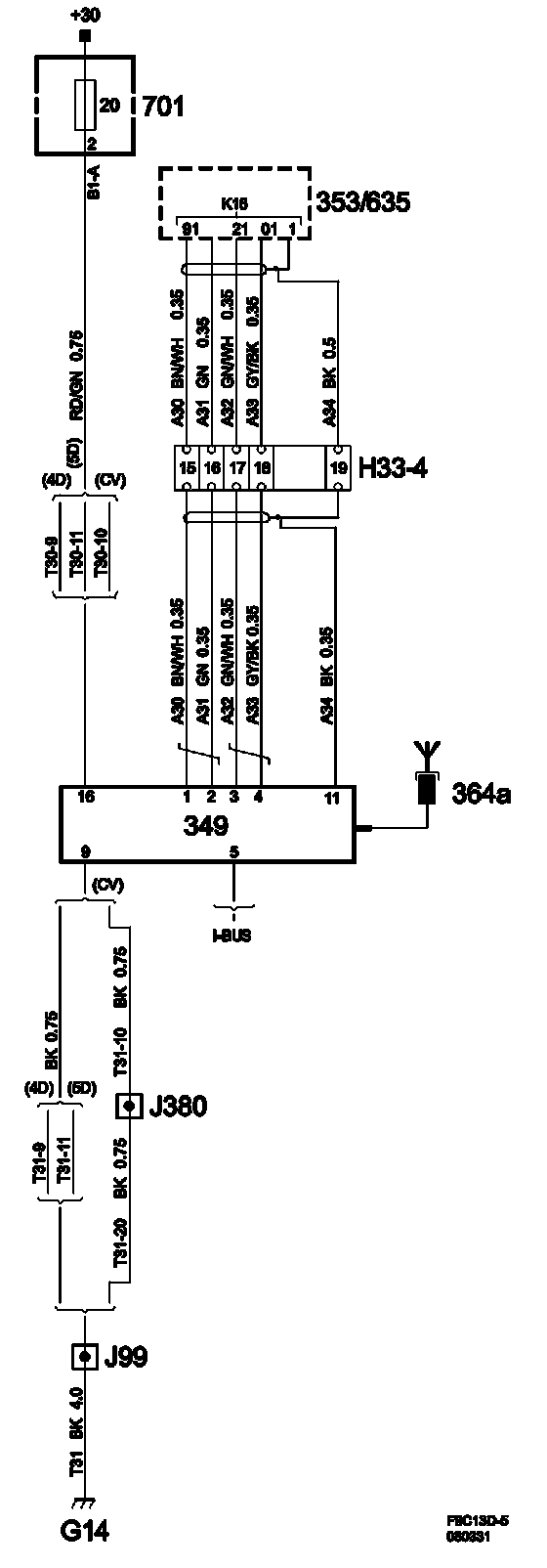

Radio Receiver, Satellite Radio:

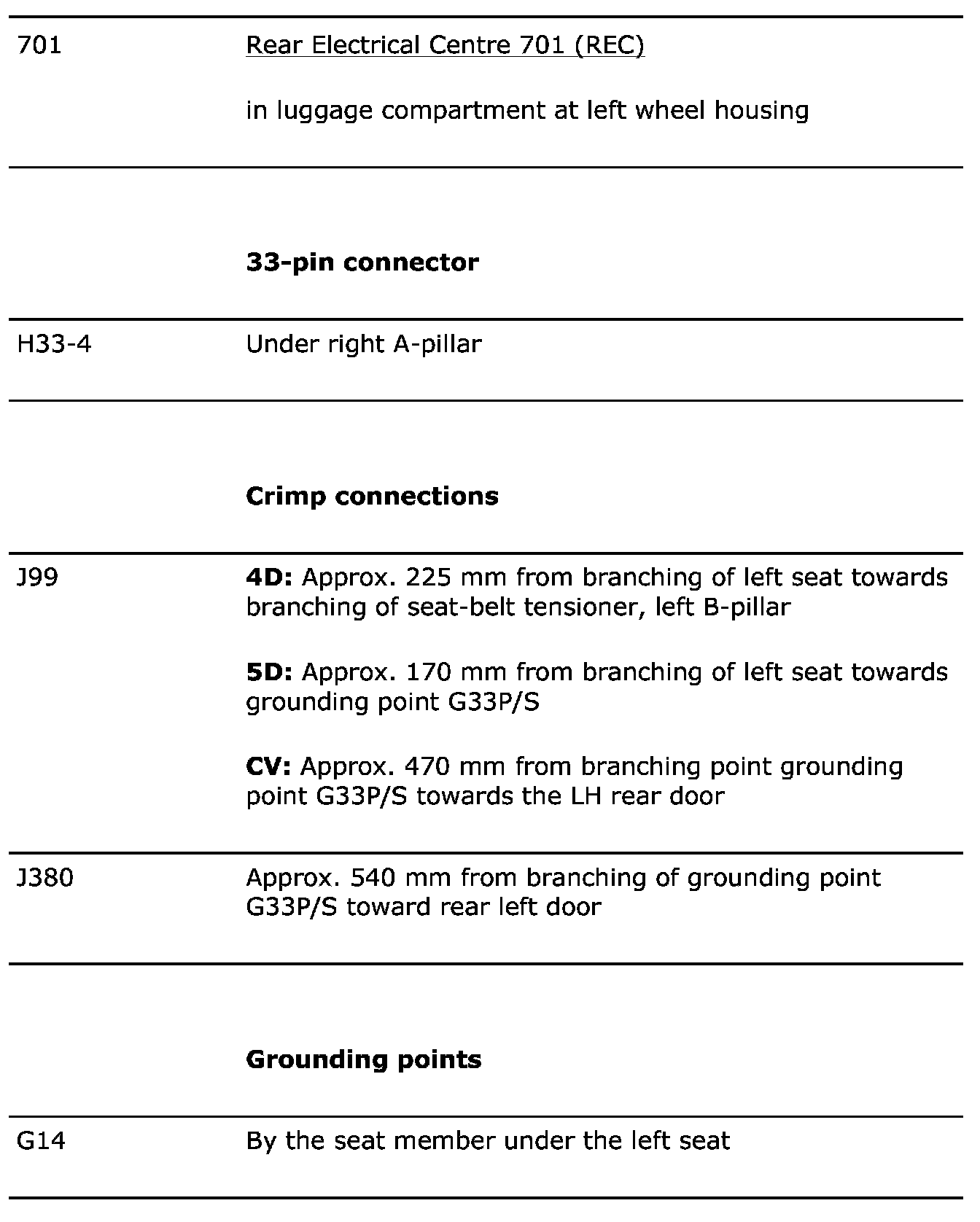

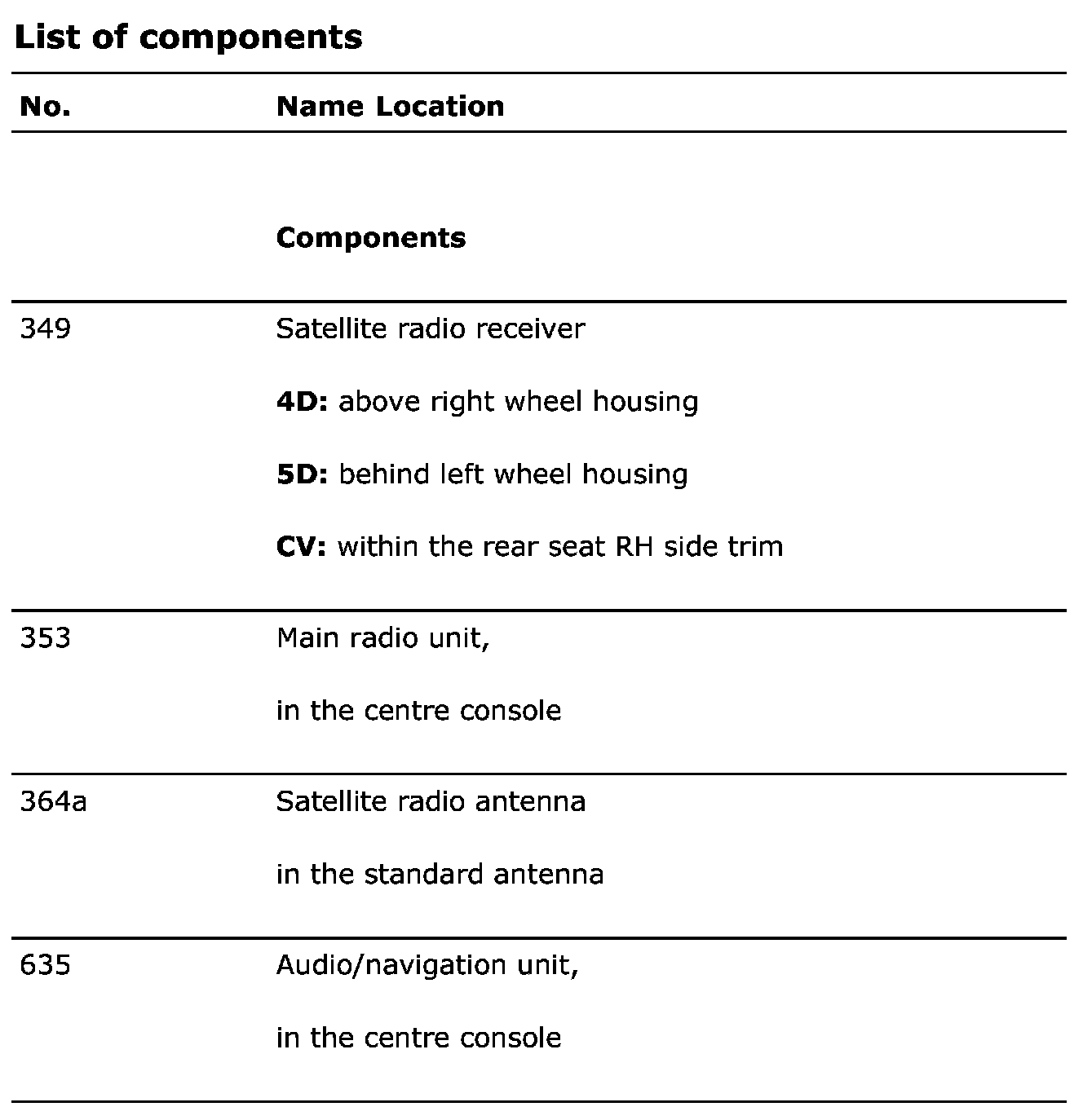

List Of Components (Part 1):




List Of Components (Part 2):
