9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Management System (Part 3/4)
Engine Management System (Part 3/4)

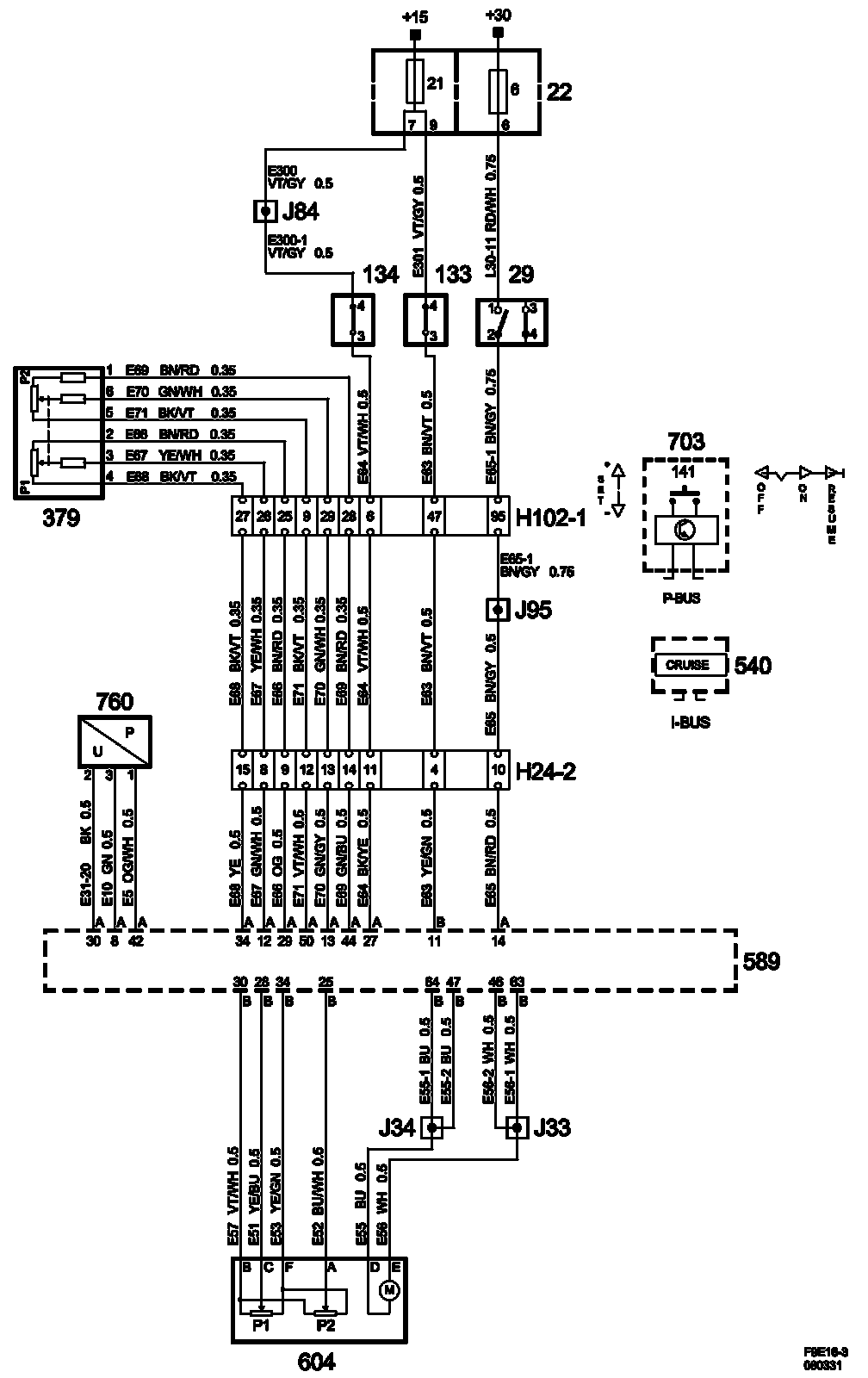

Engine Management System (Part 3/4):

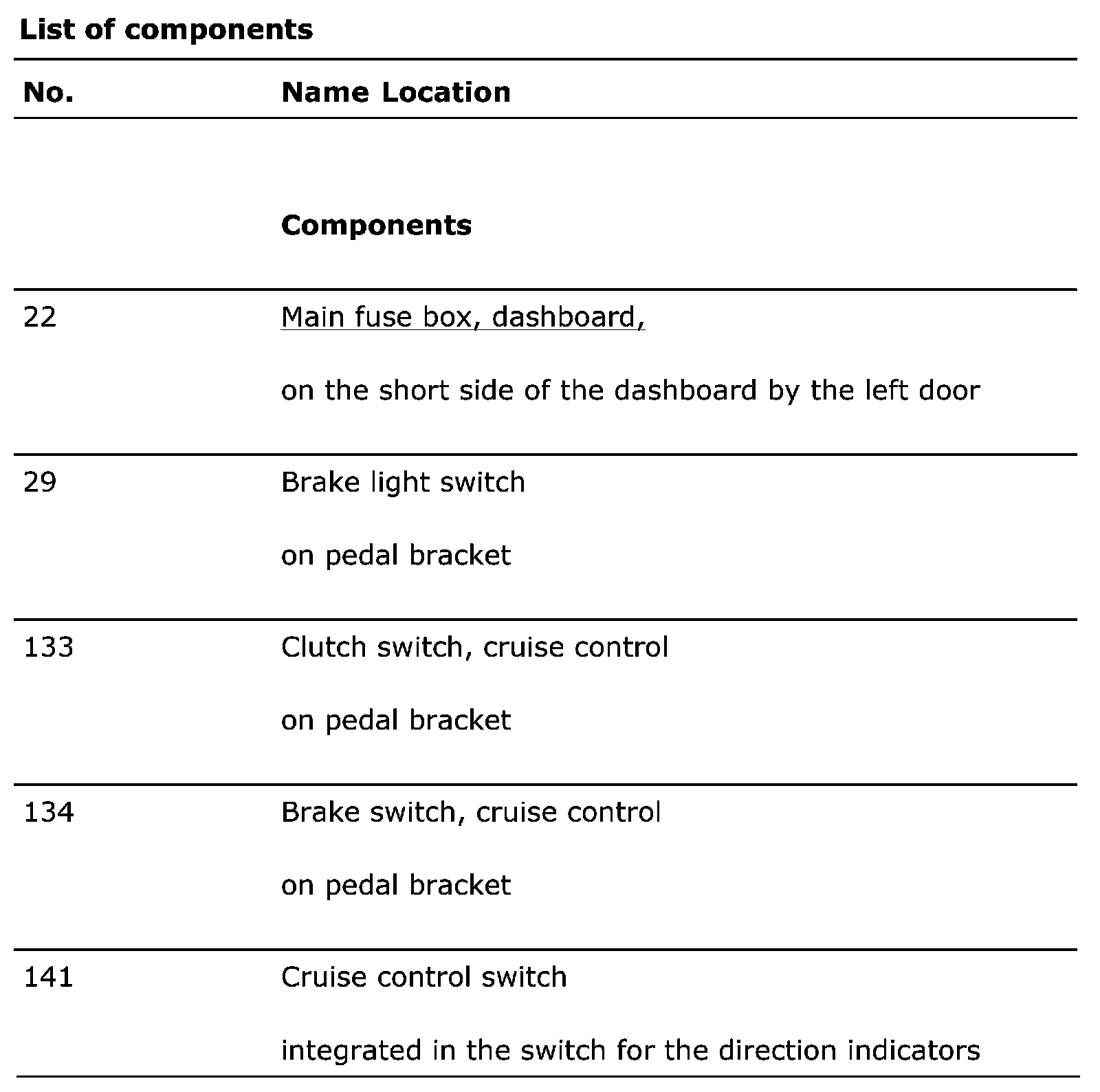

List Of Components (Part 1):

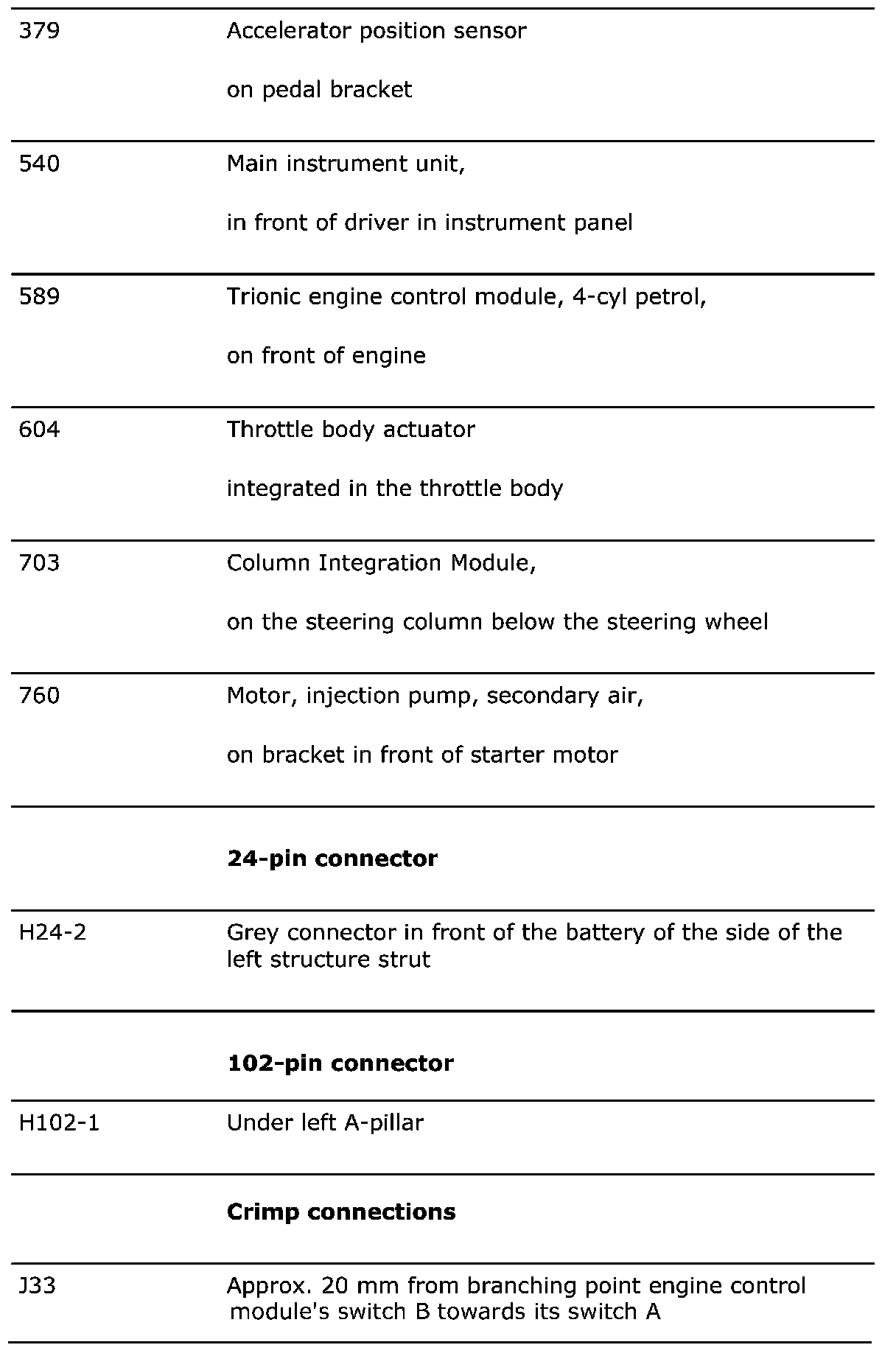

List Of Components (Part 2):

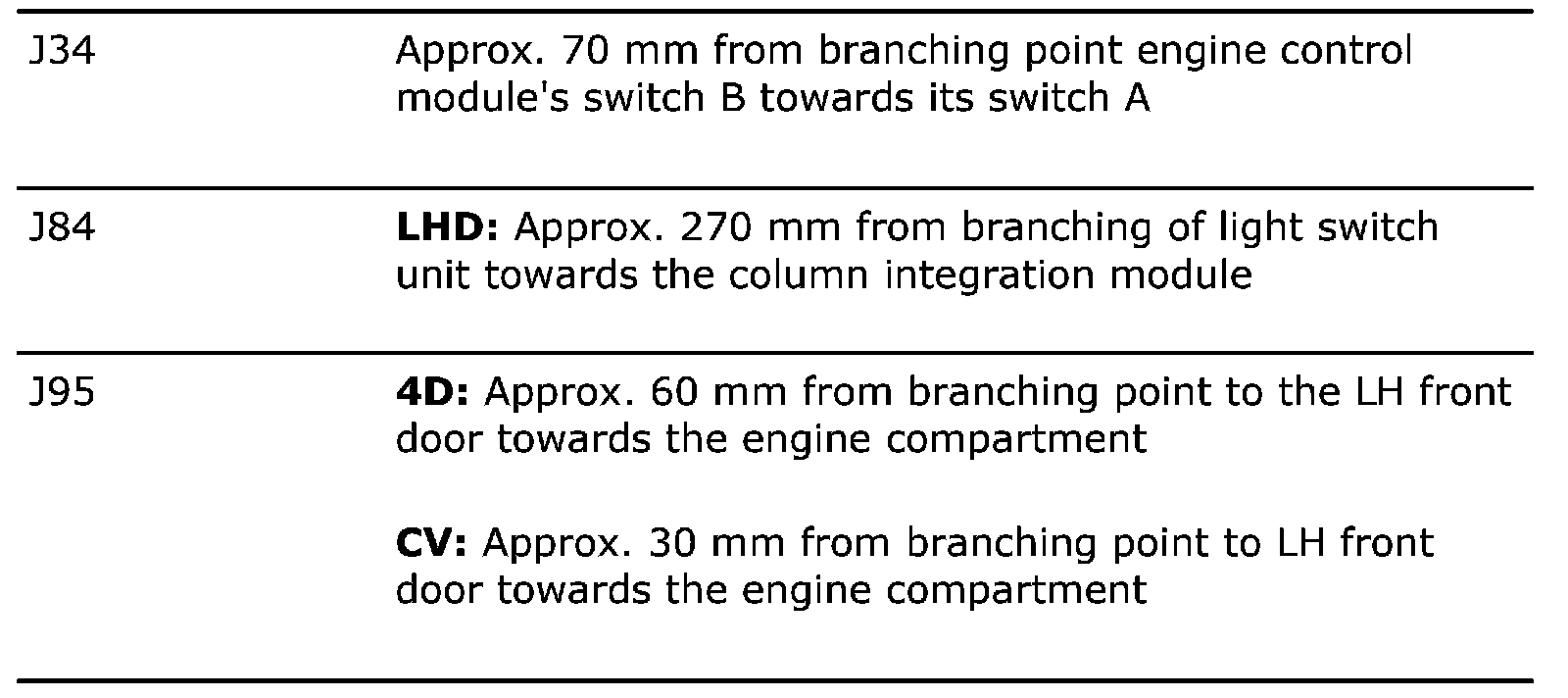

List Of Components (Part 3):
