Communication, P-Bus

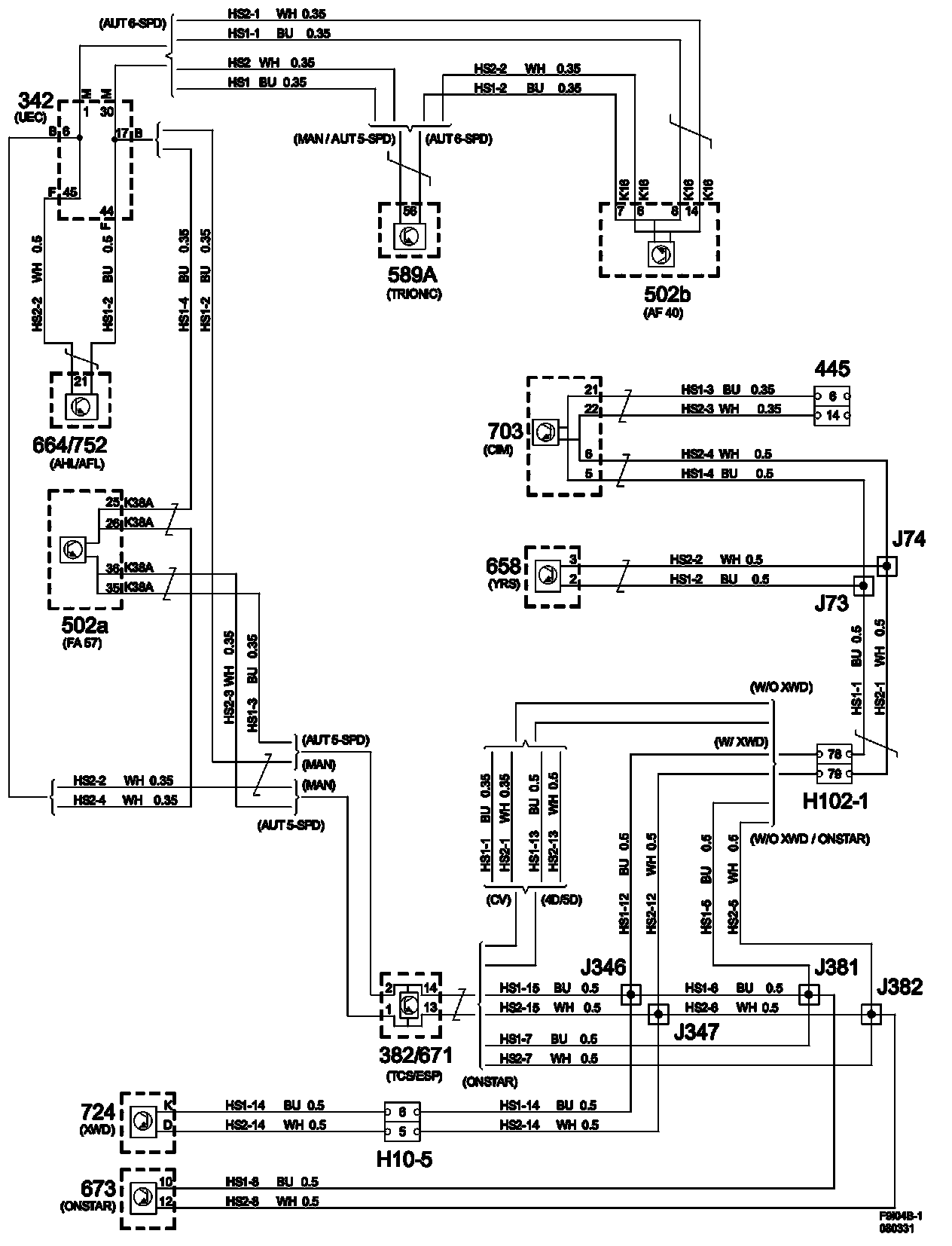

Communication, P-bus:

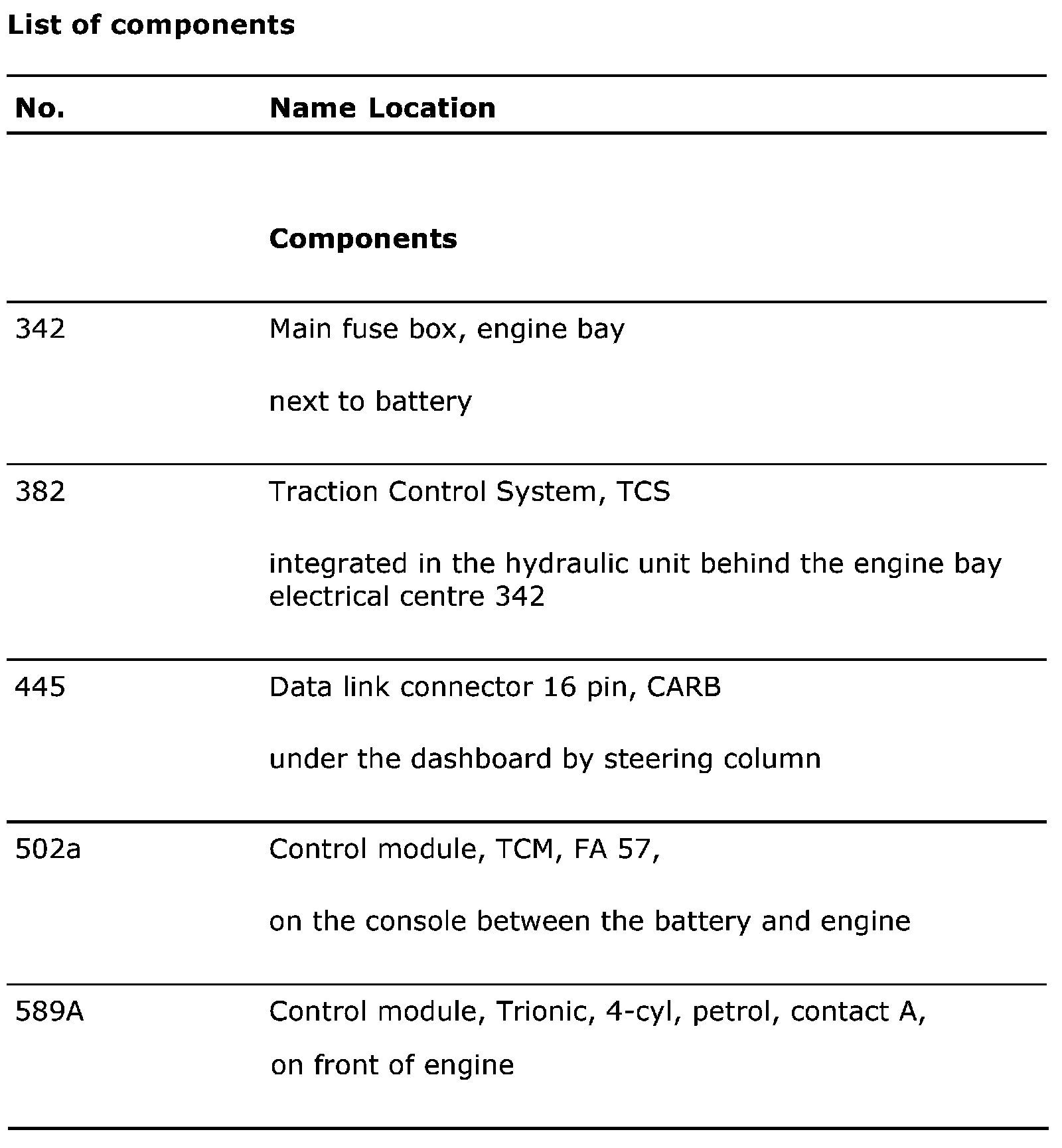

List Of Components (Part 1):

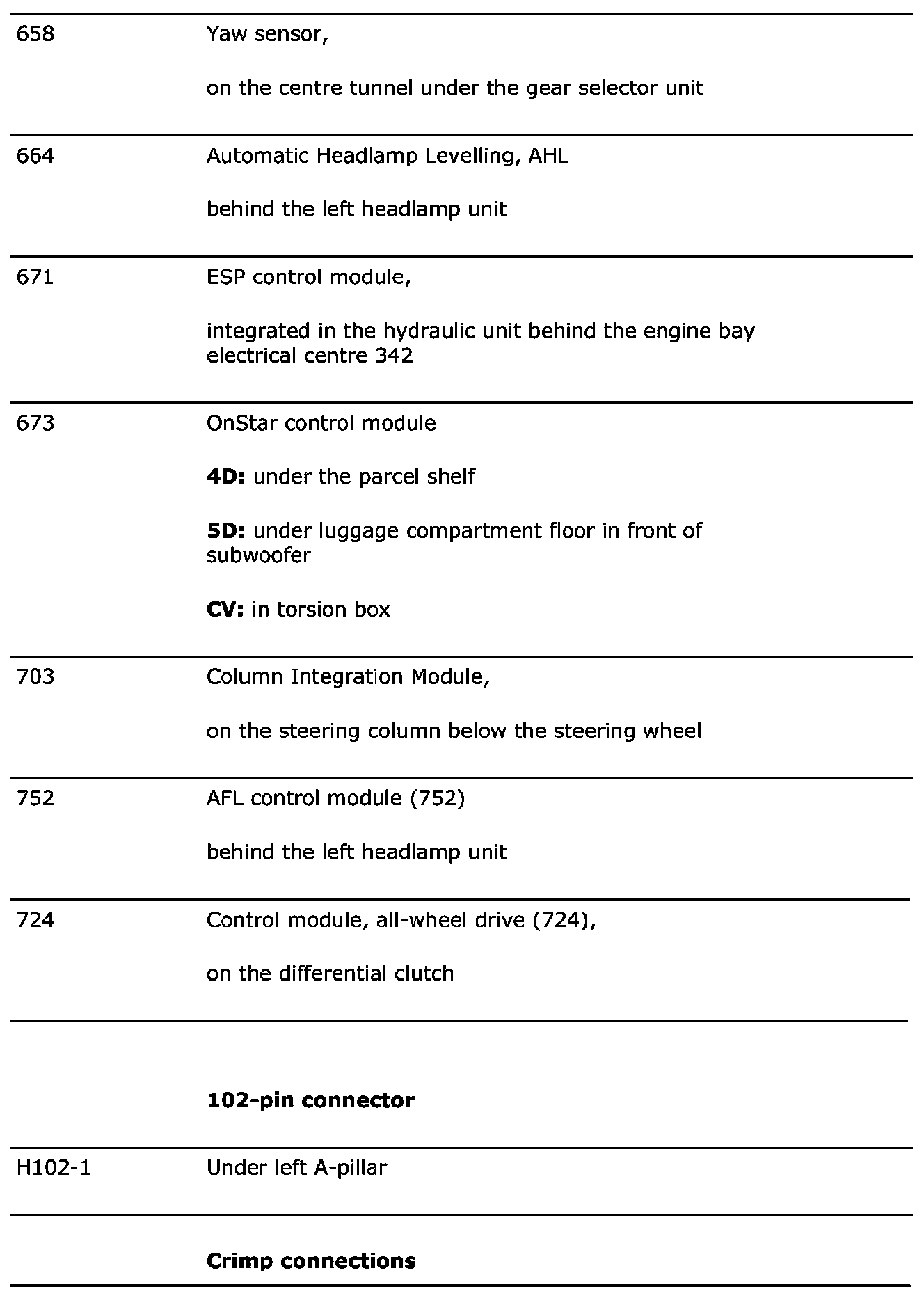

List Of Components (Part 2):

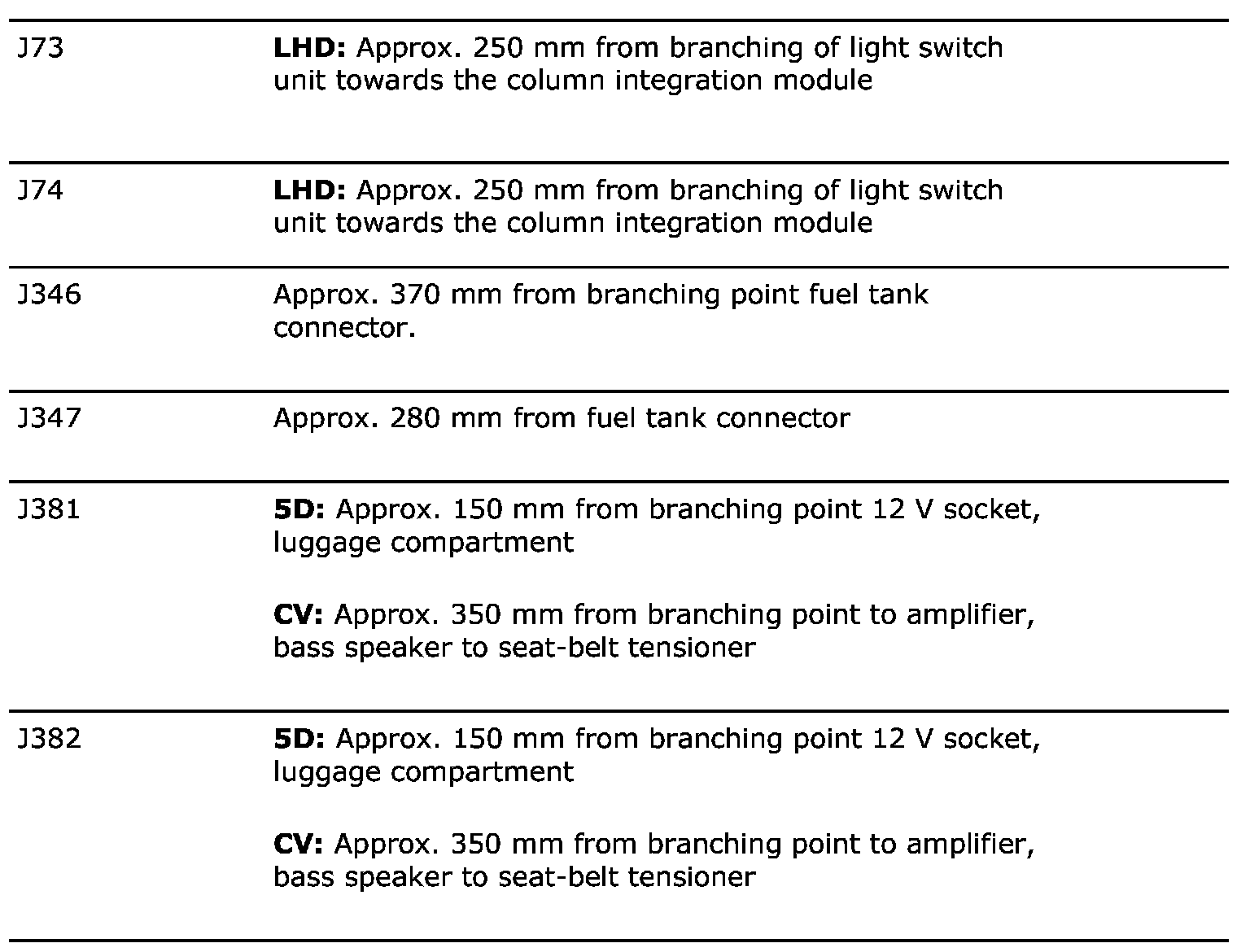

List Of Components (Part 3):
