Crimp J112, Main Wiring Harness
Crimp J112, Main Wiring Harness
Location:
4D:
..
5D/CV:
In branching of bass speaker amplifier (354S)

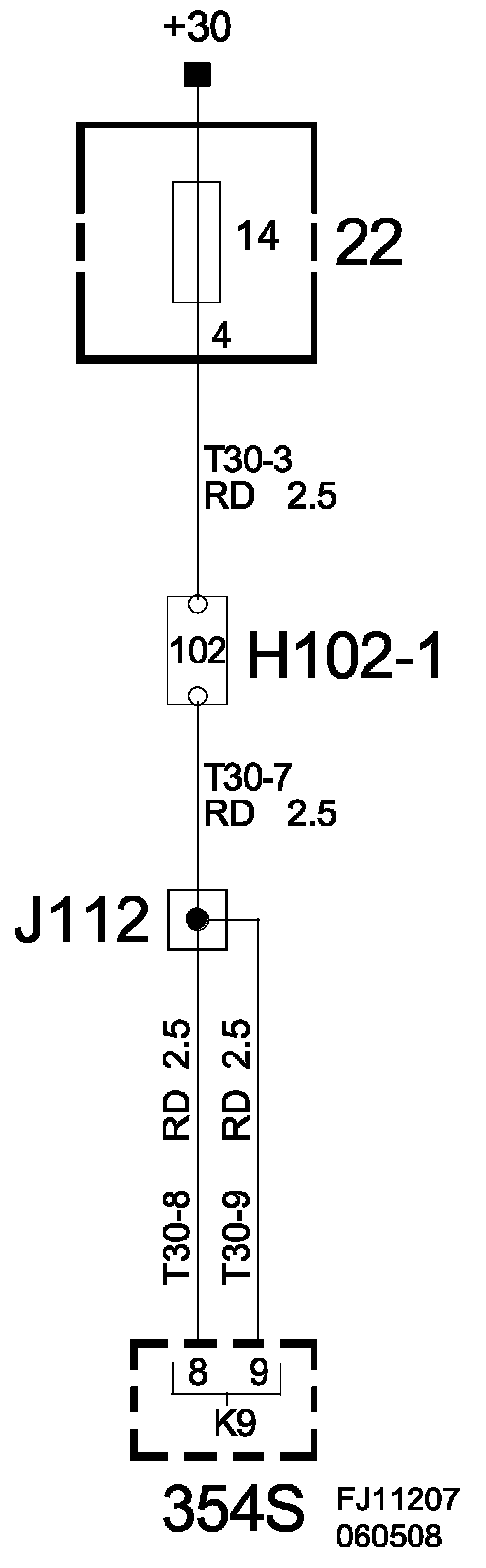

Crimp J112, Main Wiring Harness:

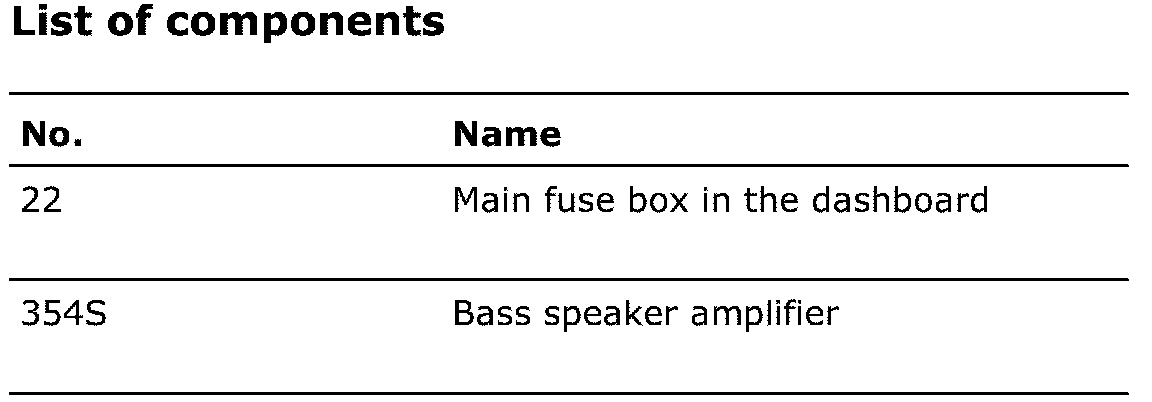

List Of Components:
