Crimp Connection J124, Main Harness



Location: In amplifier branching (354)

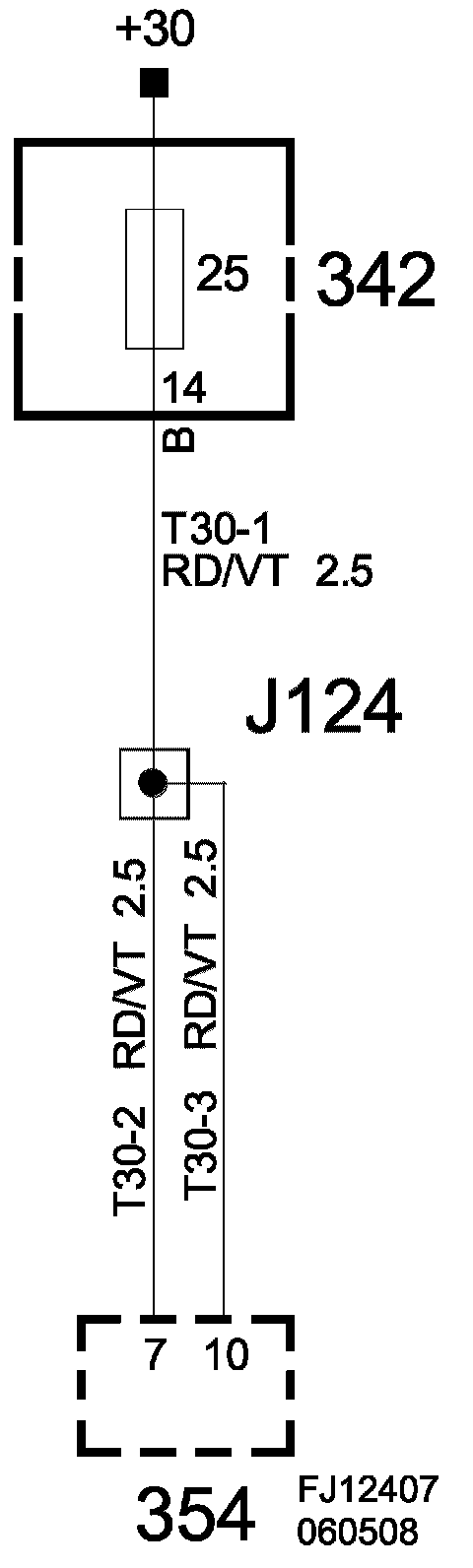

Crimp Connection J124, Main Harness:

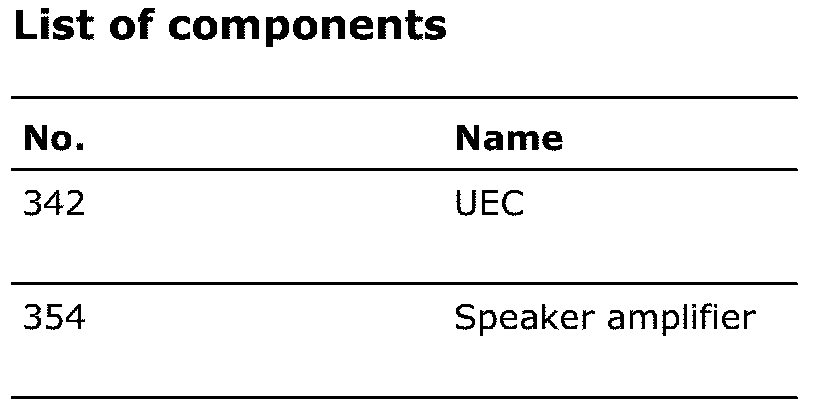

List Of Components:
