Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Crimps (Splices) >> Crimp Connection J76, Dashboard Harness

Crimp Connection J76, Dashboard Harness



Location:

LHD: Approximately 160 mm from branching of radio towards the ACC control module

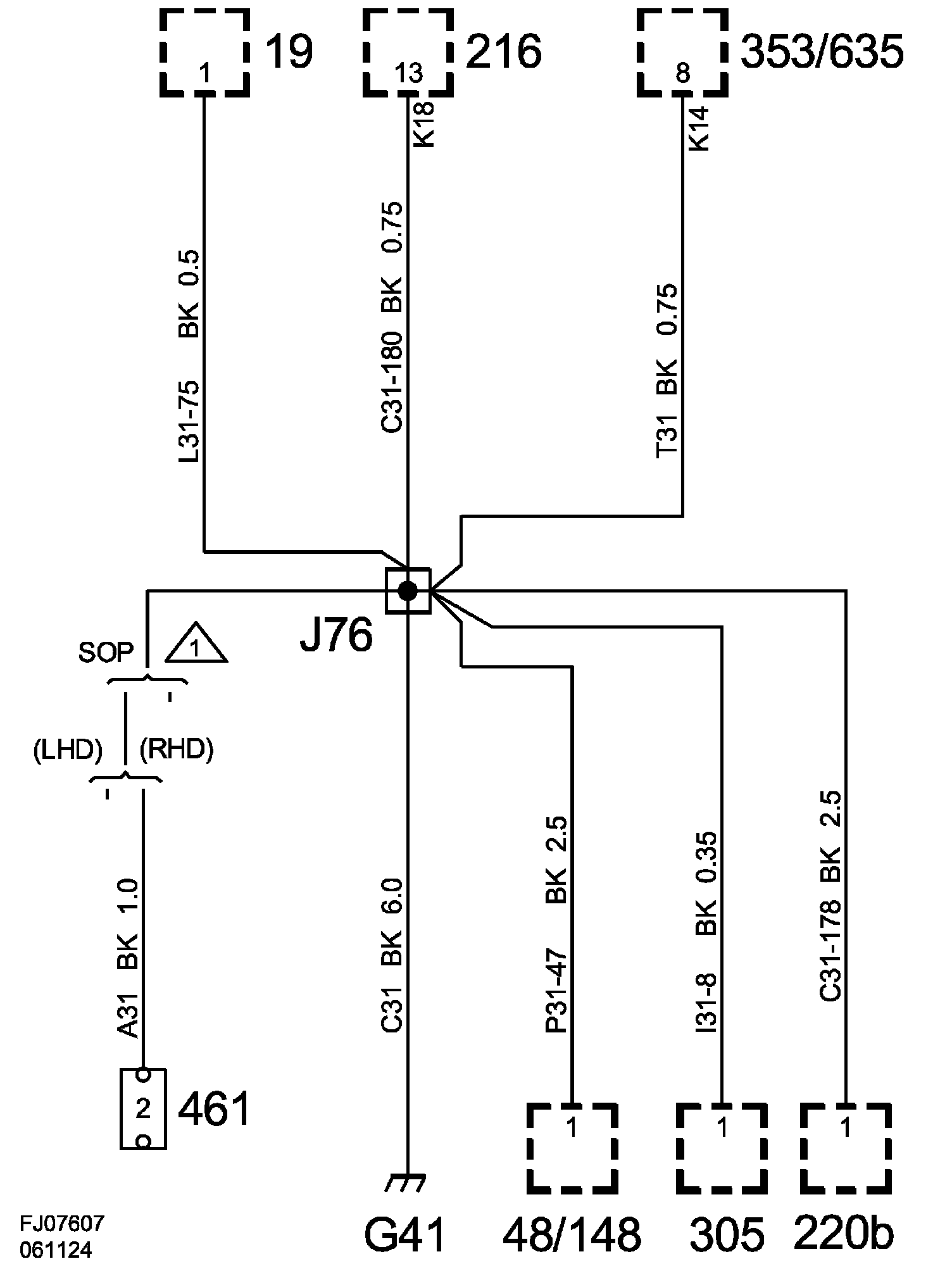

Crimp Connection J76, Dashboard Harness:

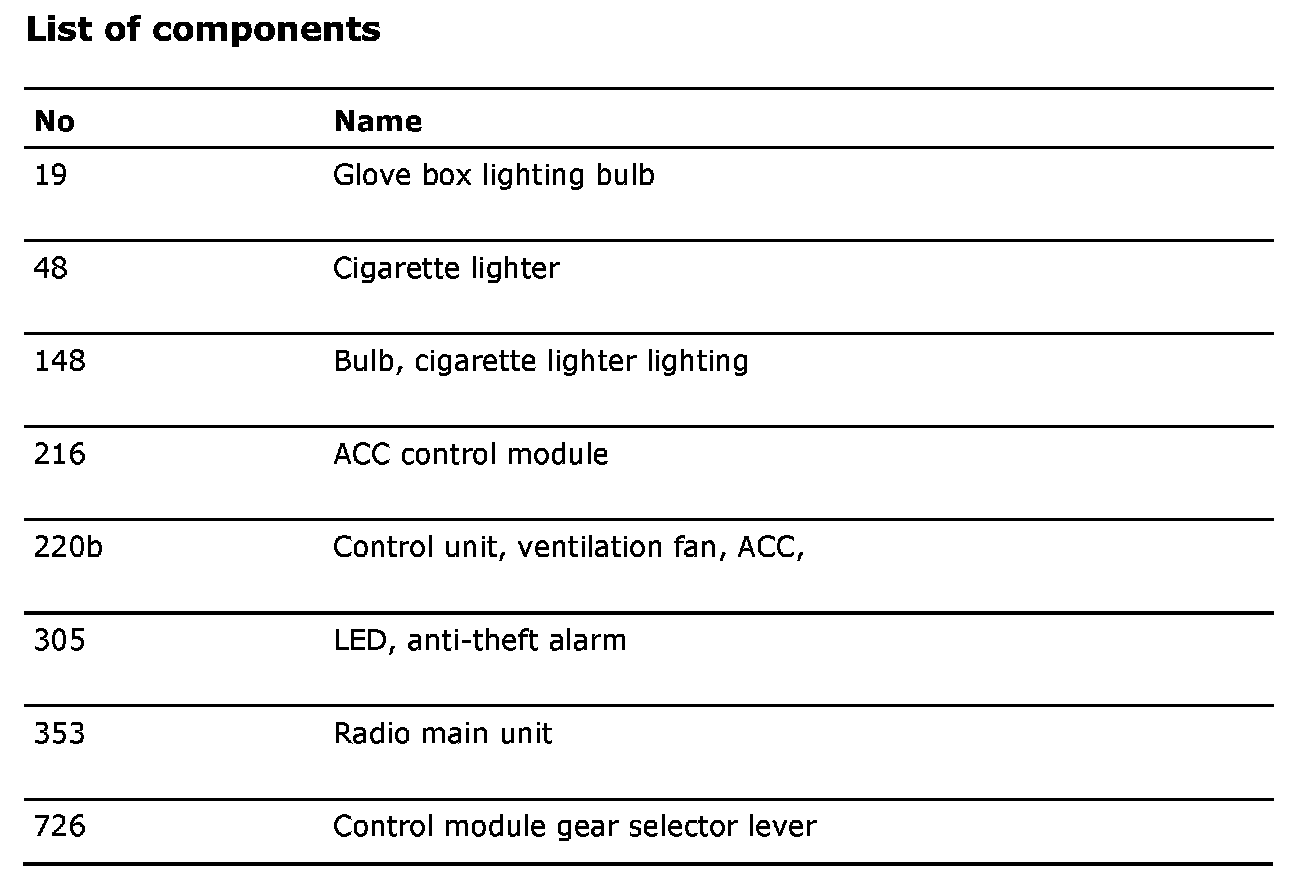

List Of Components:
