Crimp Connection J69, Instrument Harness



Location:
LHD: Approx. 140 mm from branching point light switch unit towards the column integration module
RHD: Approx. 170 mm from connector H33-1

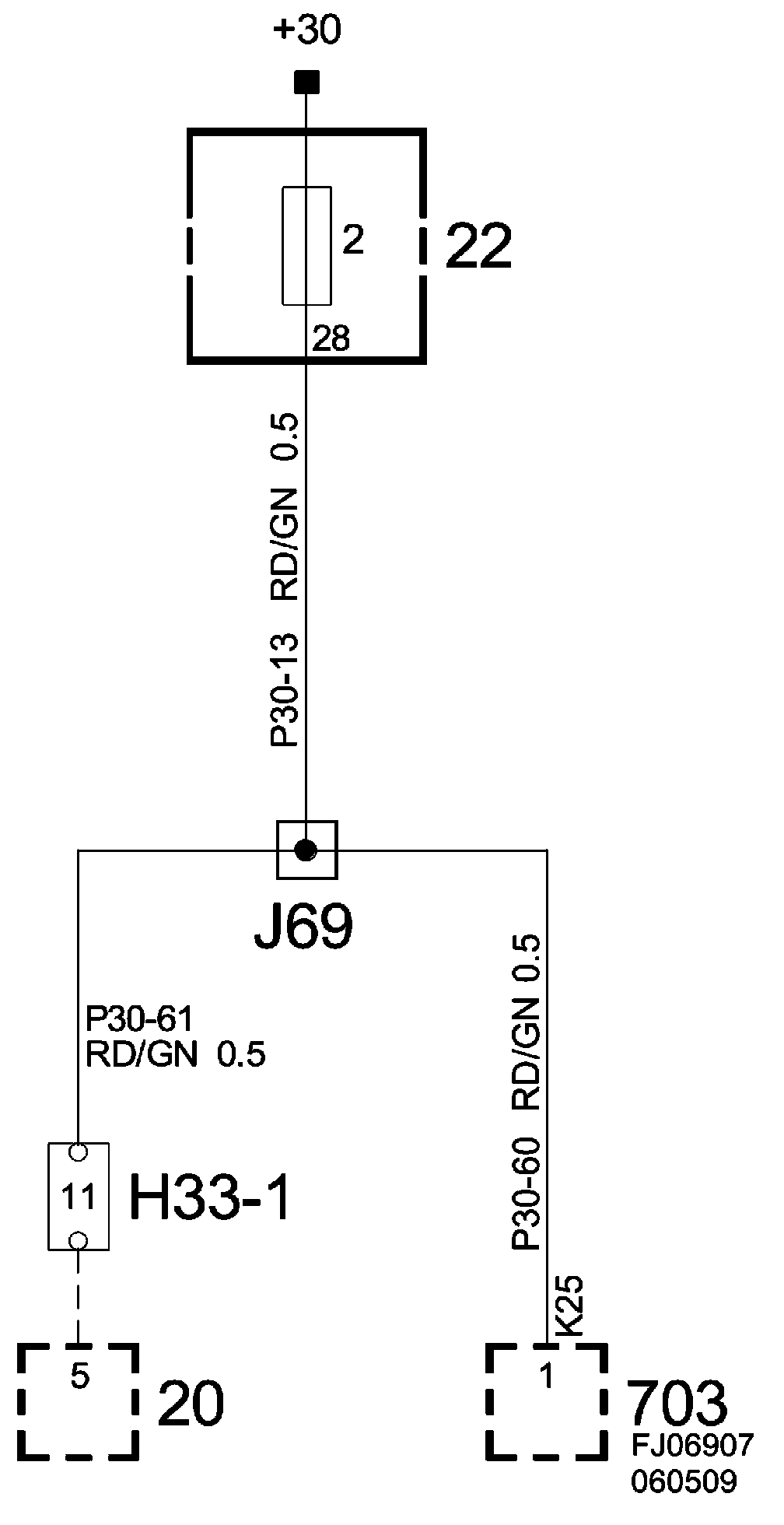

Crimp J69, Instrument Harness:

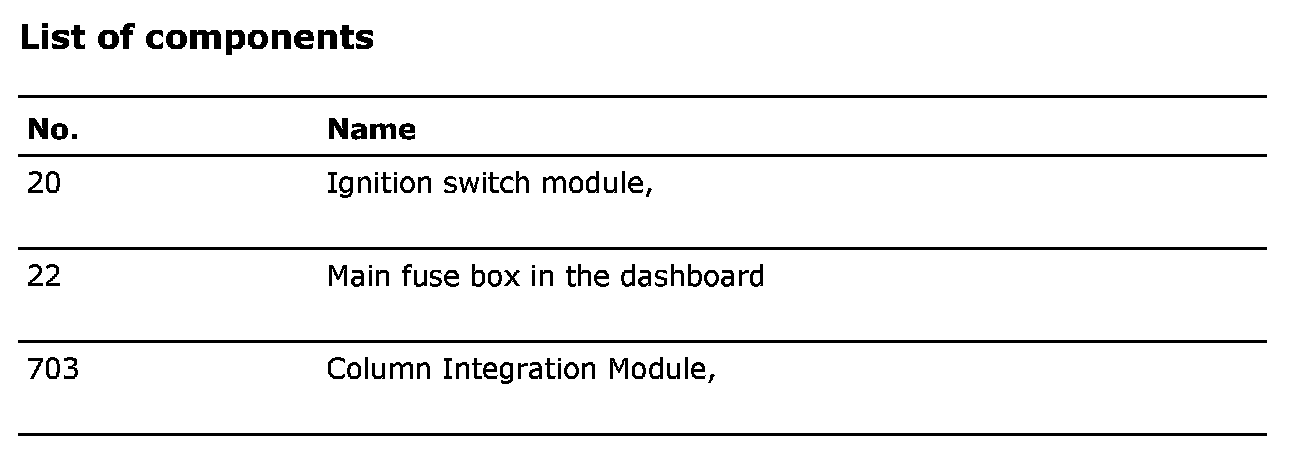

List Of Components:
