Crimp Connection J185, Instrument Harness



Location:

LHD: Approx. 240 mm from branching of switch unit towards column integration module

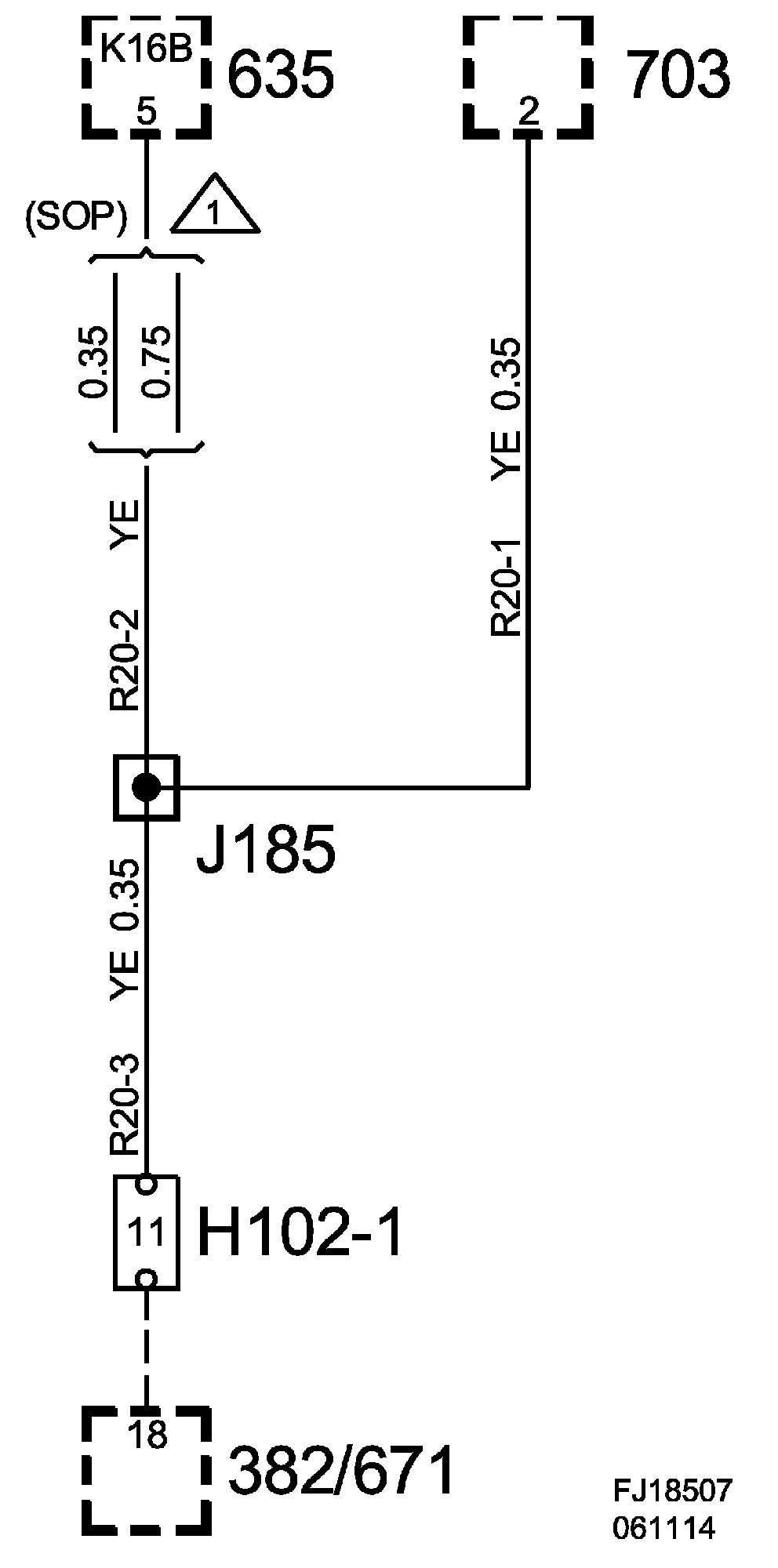

Crimp J185, Instrument Harness:

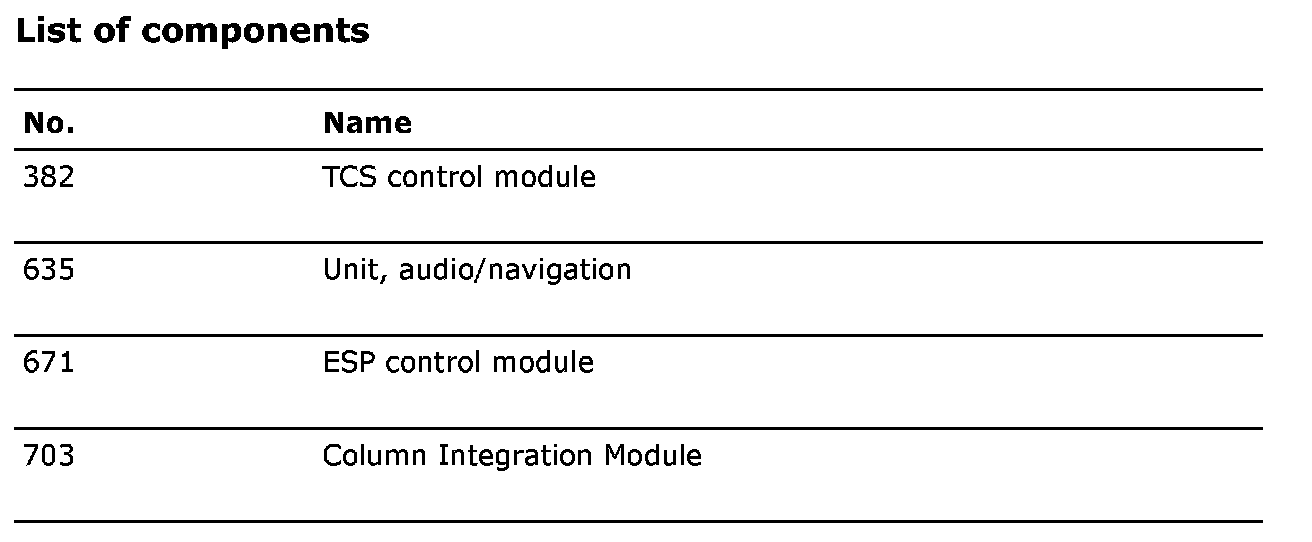

List Of Components:
