Crimp Connection J153, Front Bumper Wiring Harness
Crimp Connection J153, Front Bumper Wiring Harness
Location:
Approx.
240 mm
from connector H10-1

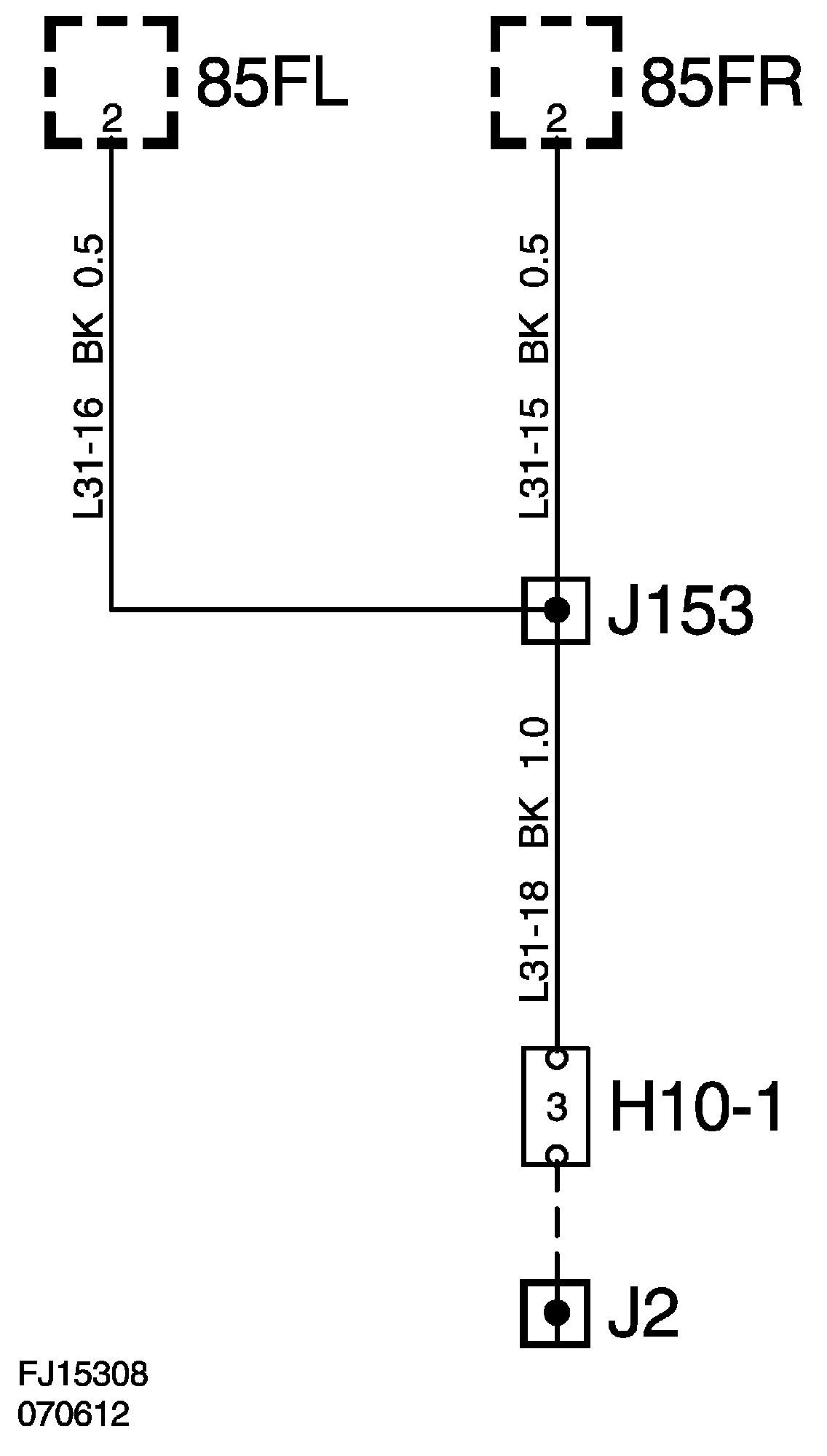

Crimp J153, Front Bumper Wiring Harness:

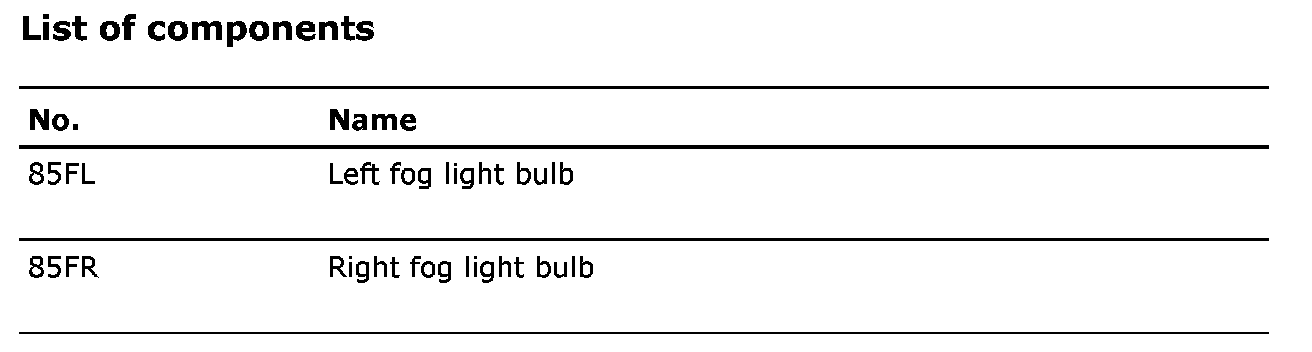

List Of Components:
