Crimp J5, Front Wiring Harness

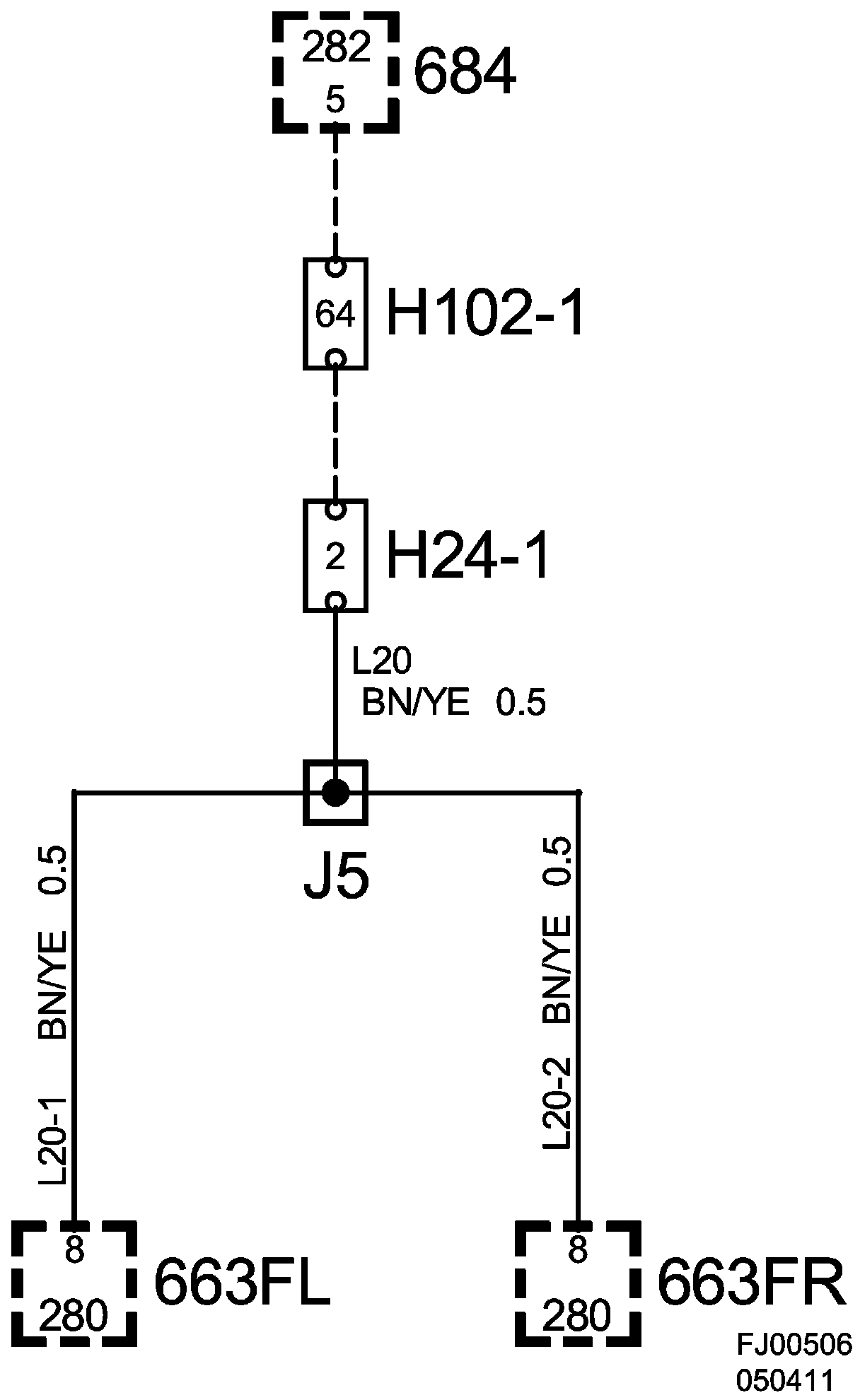

Crimp J5, Front Wiring Harness:

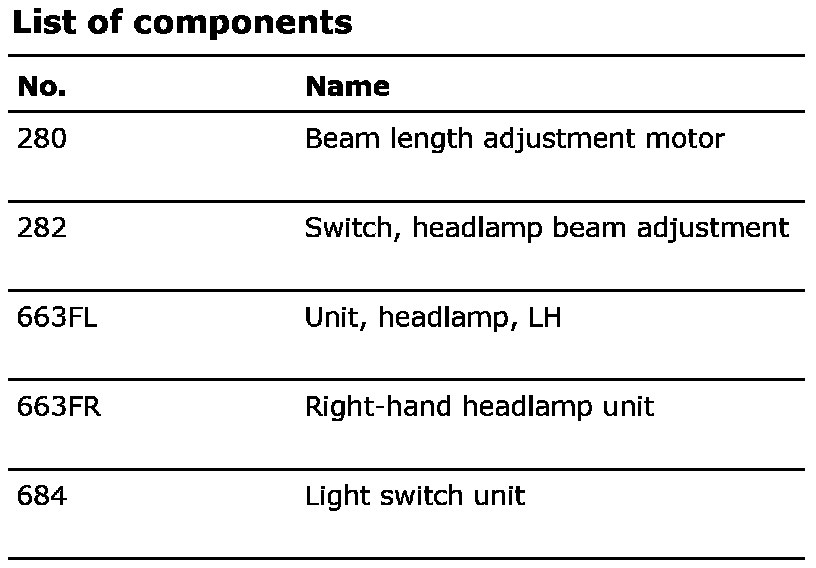

List Of Components:






Location: Approx. 270 mm from branching of grounding point G30 towards the right headlamp
