Crimp (Splices)
>>
Crimp J345, Main Wiring Harness
Crimp J345, Main Wiring Harness

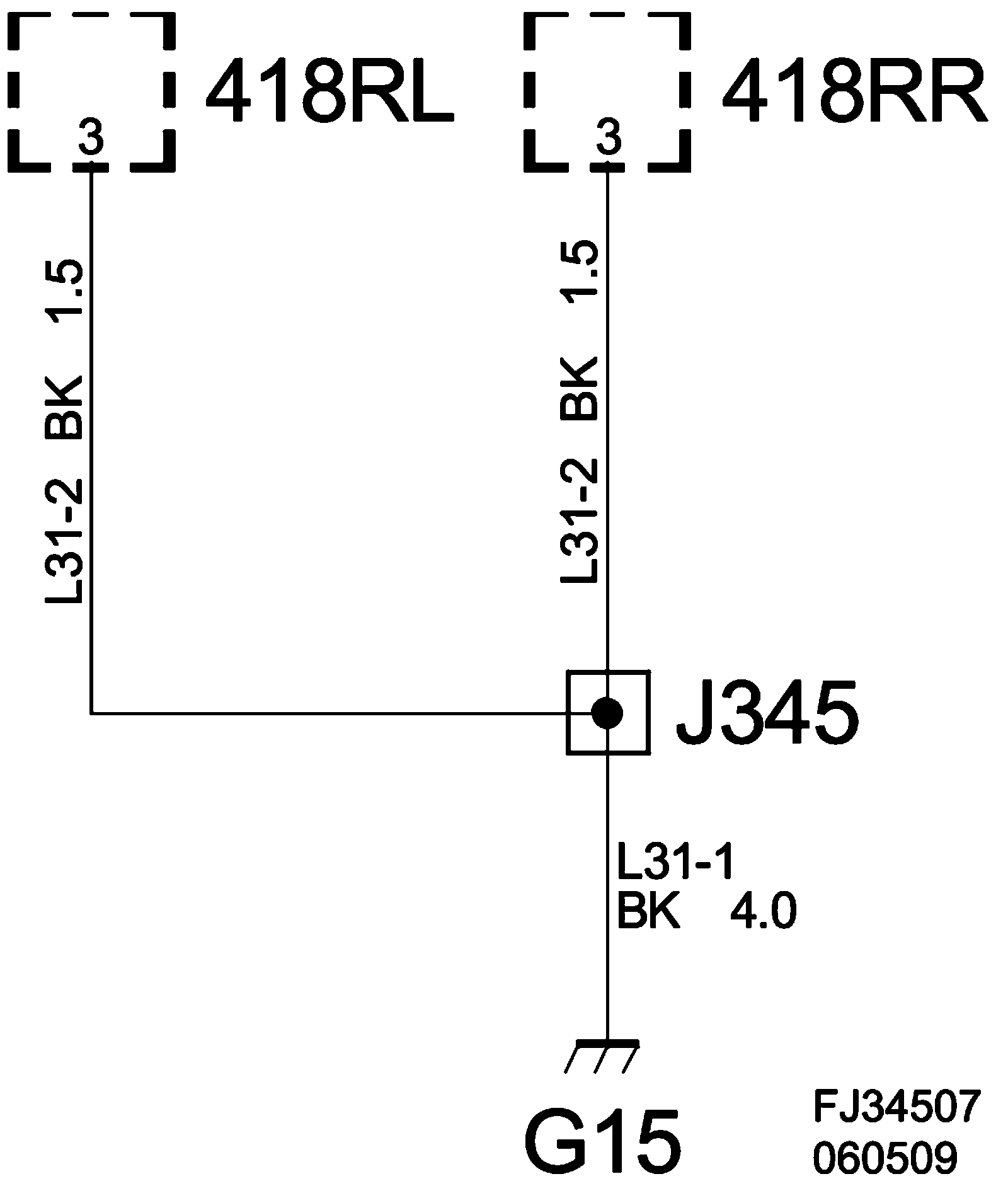

Crimp J345, Main Wiring Harness 5D:
Location:
Approx. 130 mm from Body 1 connector in REC
