Crimp J18, Front Harness
Crimp J18, Front Harness

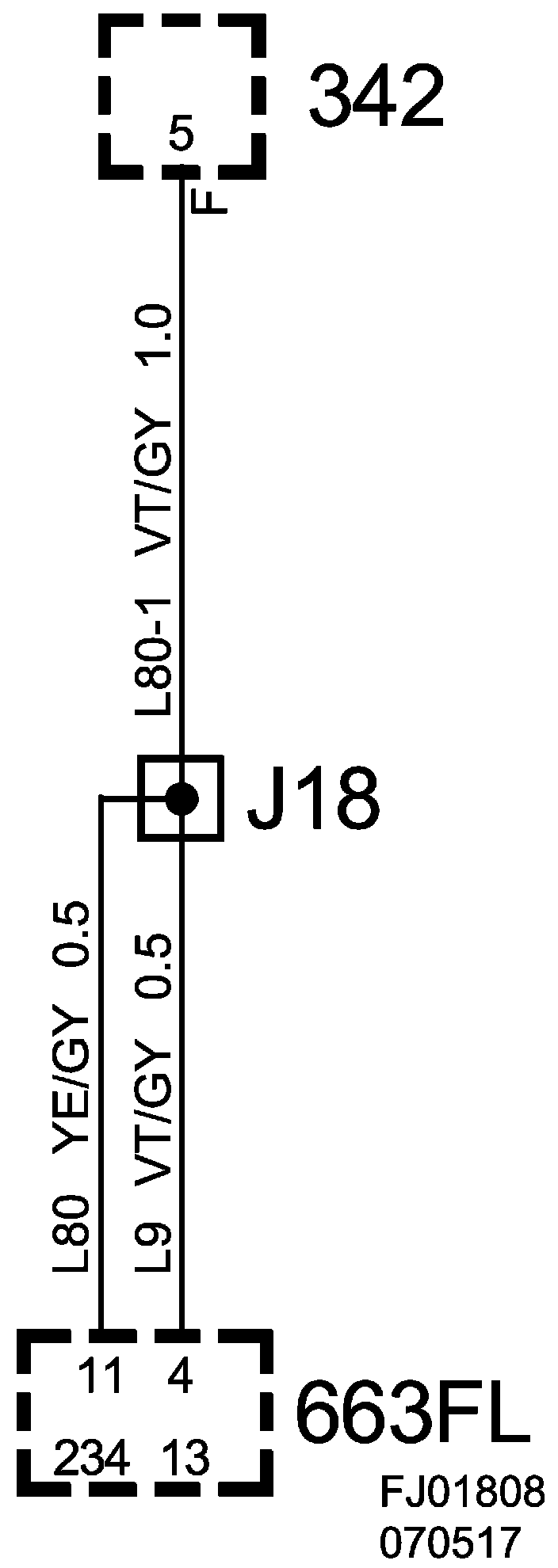

Crimp J18, Front Harness:

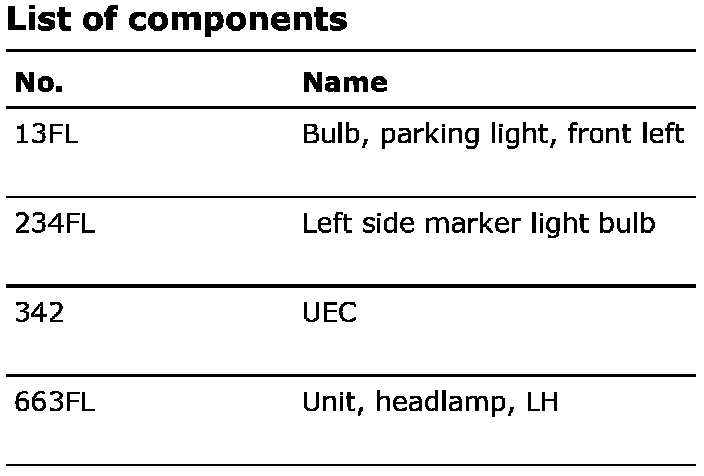

List Of Components:
Location:
Approx. 140 mm from contact of left headlamp
