Crimp J129, Roof Harness

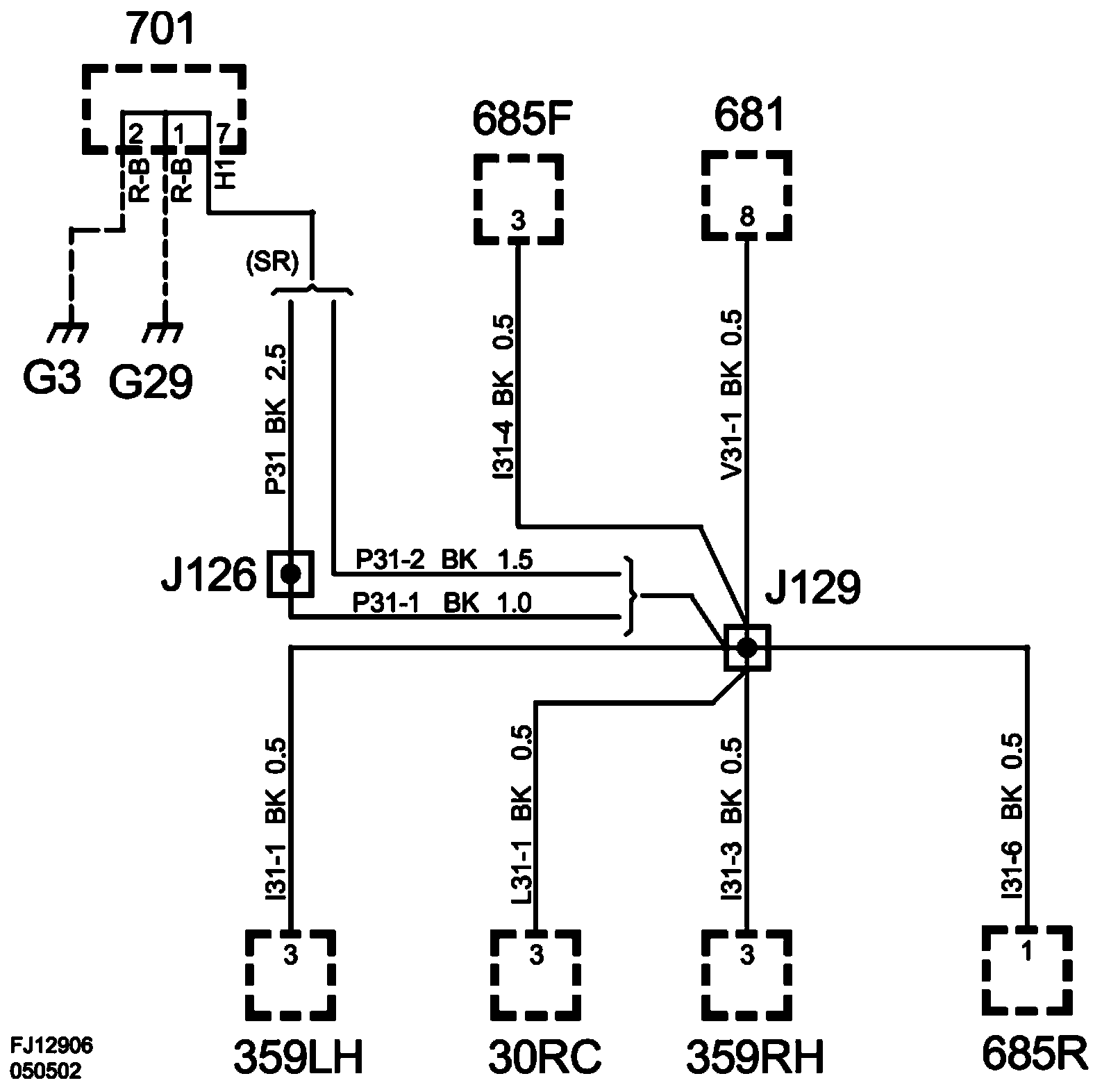

Crimp J129, Roof Harness:

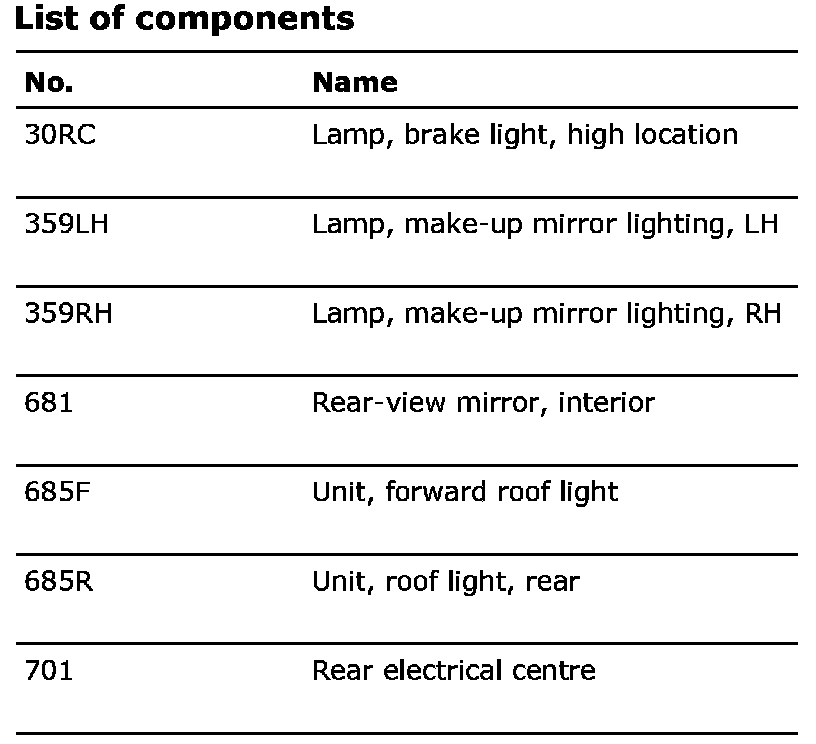

List Of Components:






Location: Approx. 40 mm from the branching point to the LH make-up light towards the luggage compartment electrical centre.

Crimp J126, roof harness
