Crimp Connection J84, Dashboard Harness



Location:
LHD: Approx. 270 mm from branching of light switch unit to column integration module

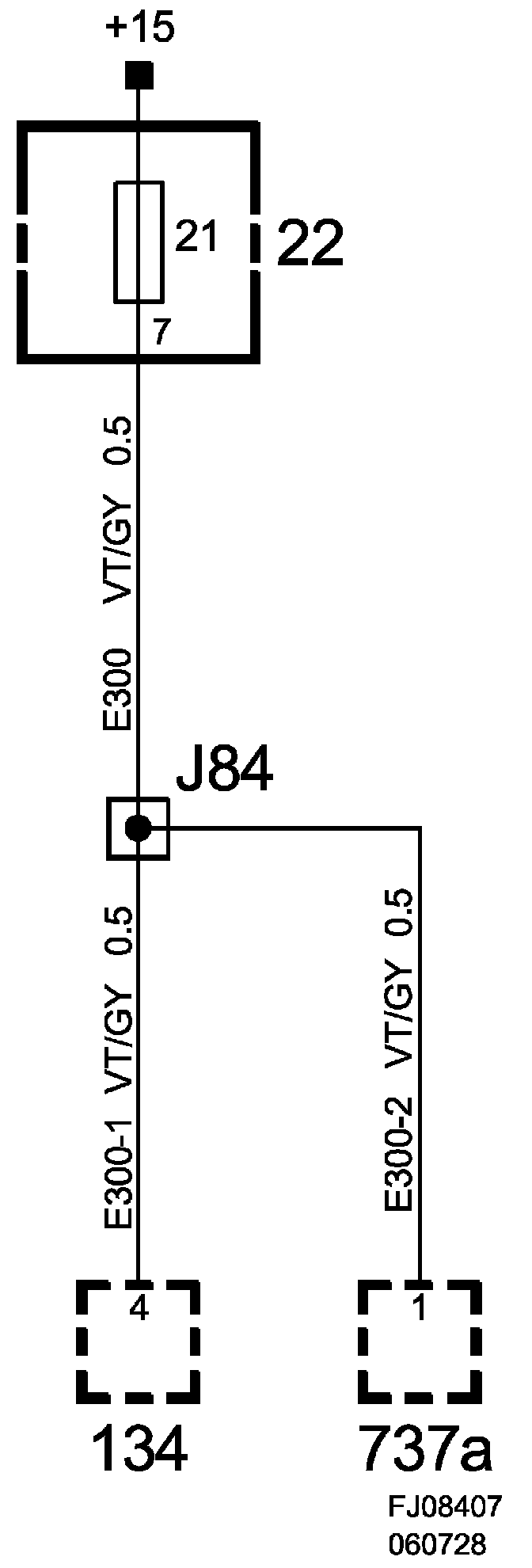

Crimp J84, Dashboard Harness:

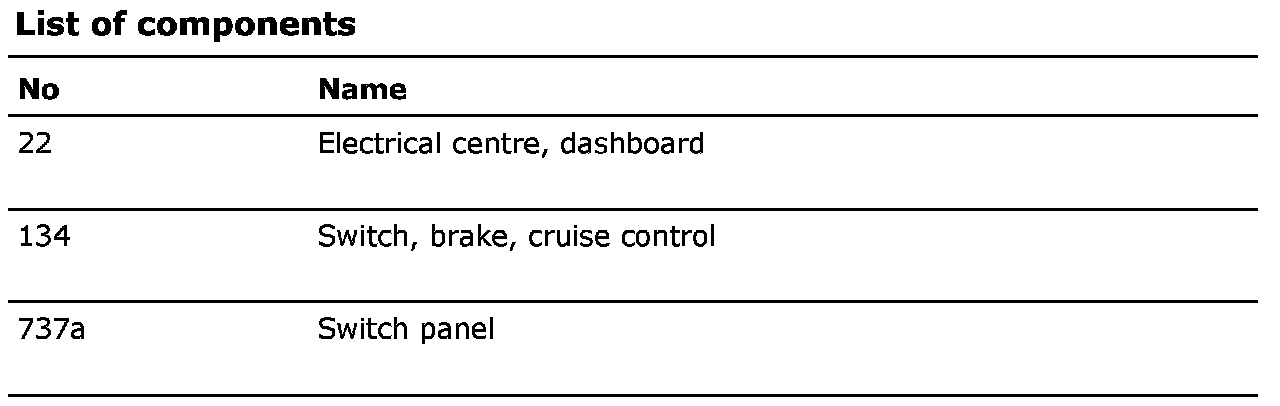

List Of Components:
