Crimp Connection J175, Soft Top Harness

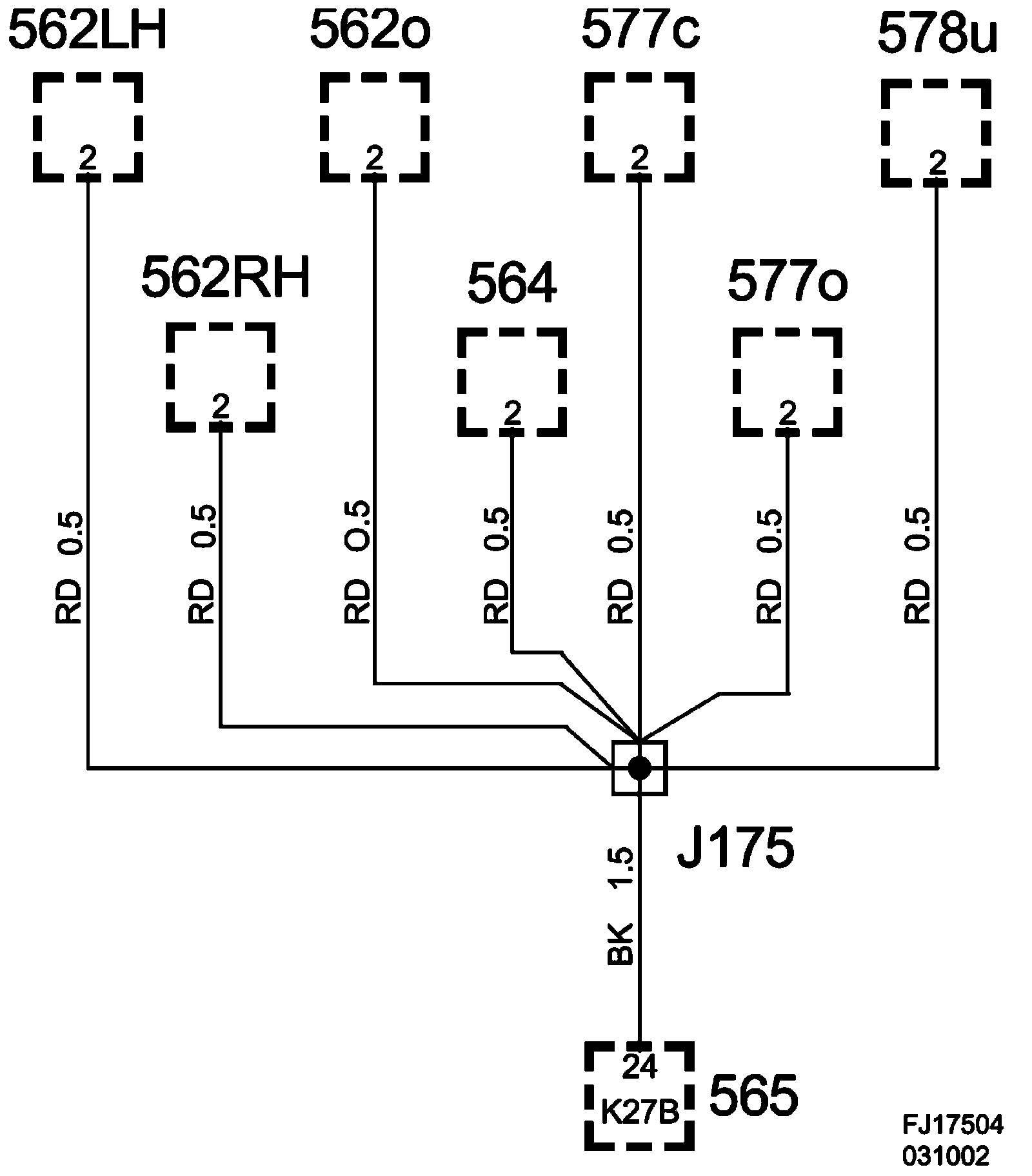

Crimp Connection J175, Soft Top Harness:

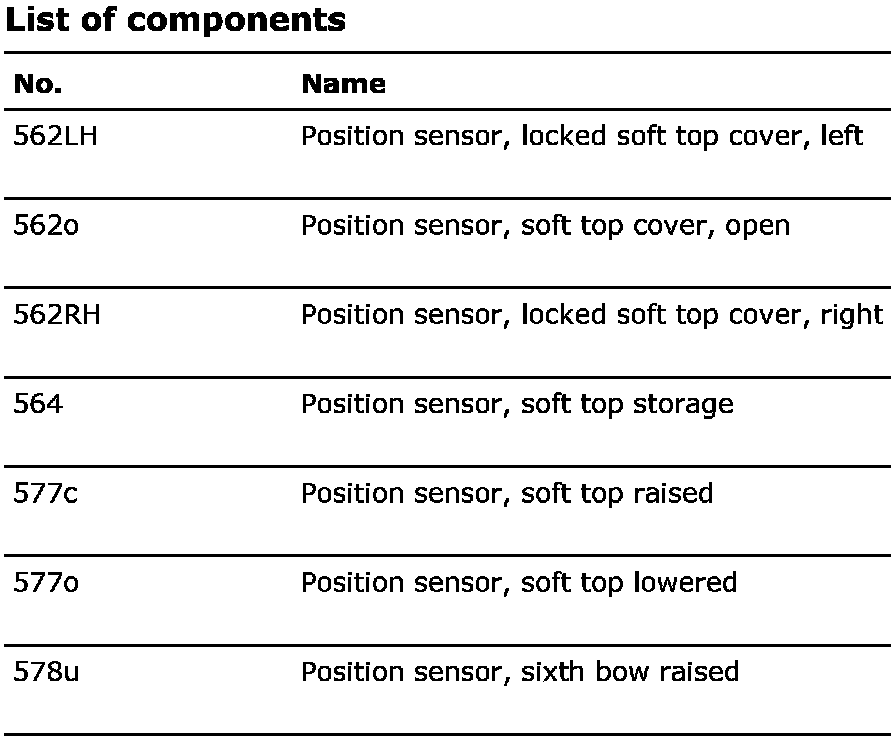

List Of Components:






Location: Approx. 50 mm from branching point soft top storage position sensor towards the main cylinder
