Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light >> Interior Lighting and Reading Lamps CV

Interior Lighting and Reading Lamps CV

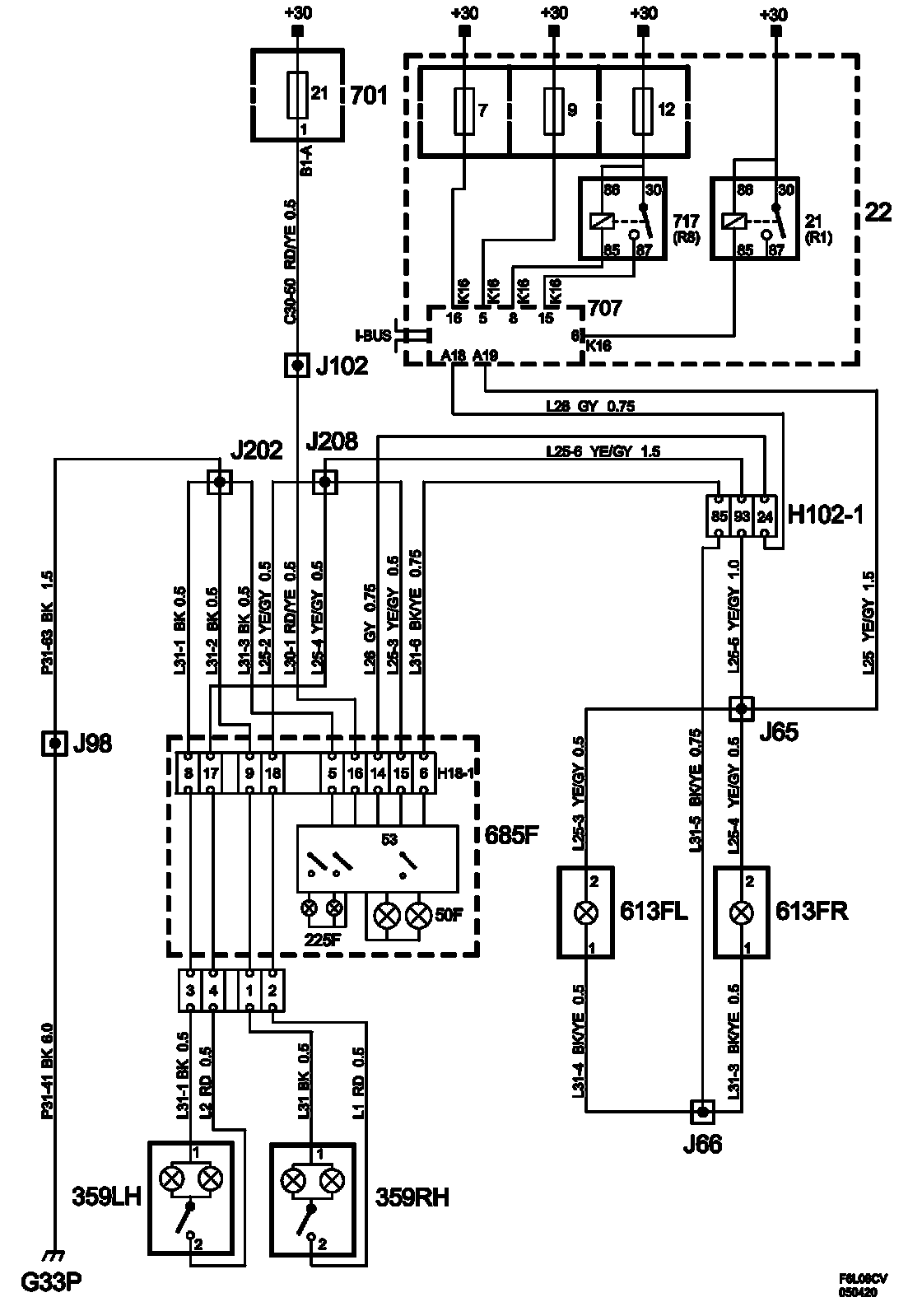

Interior Lighting And Reading Lamps CV:

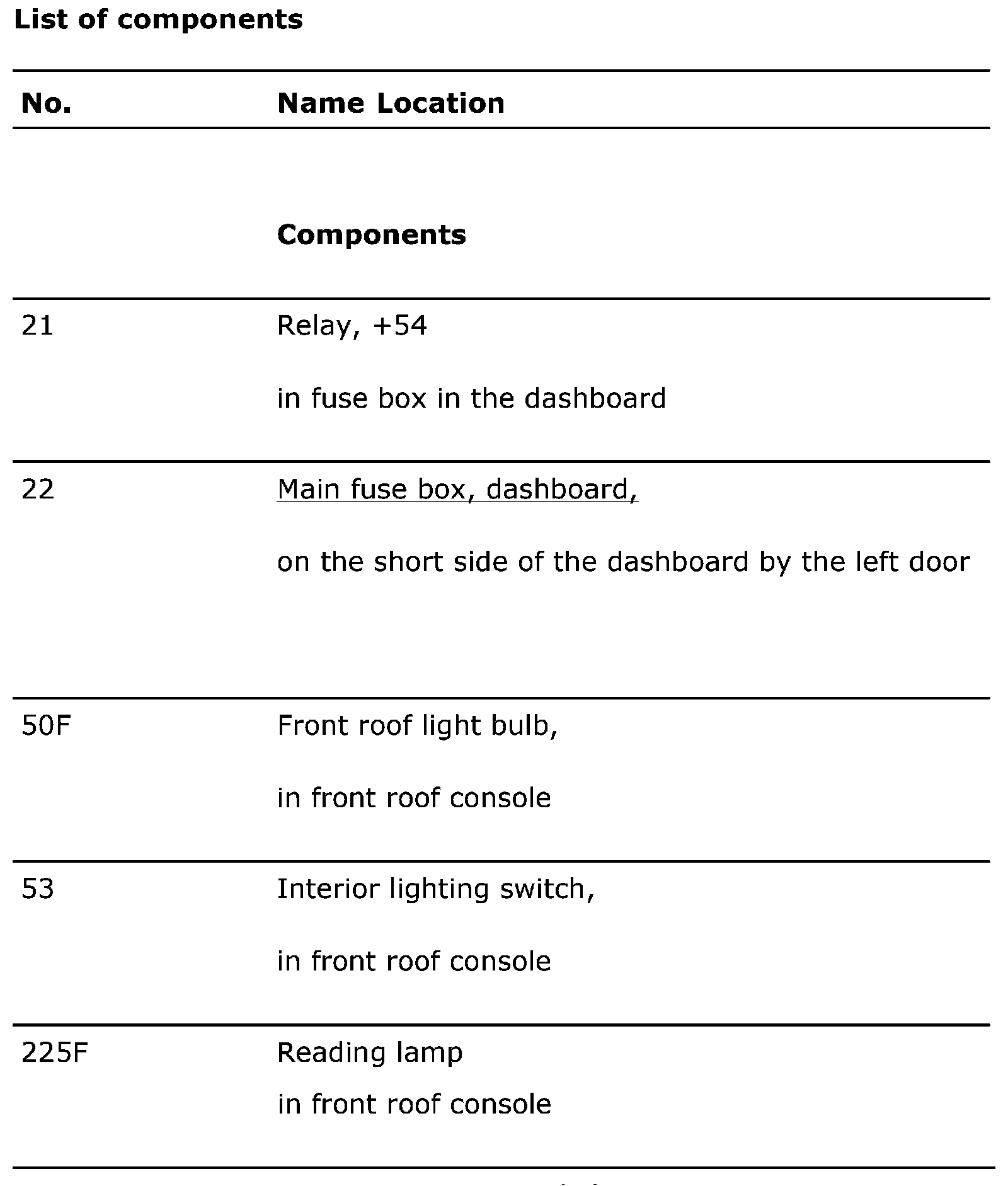

List Of Components (Part 1):

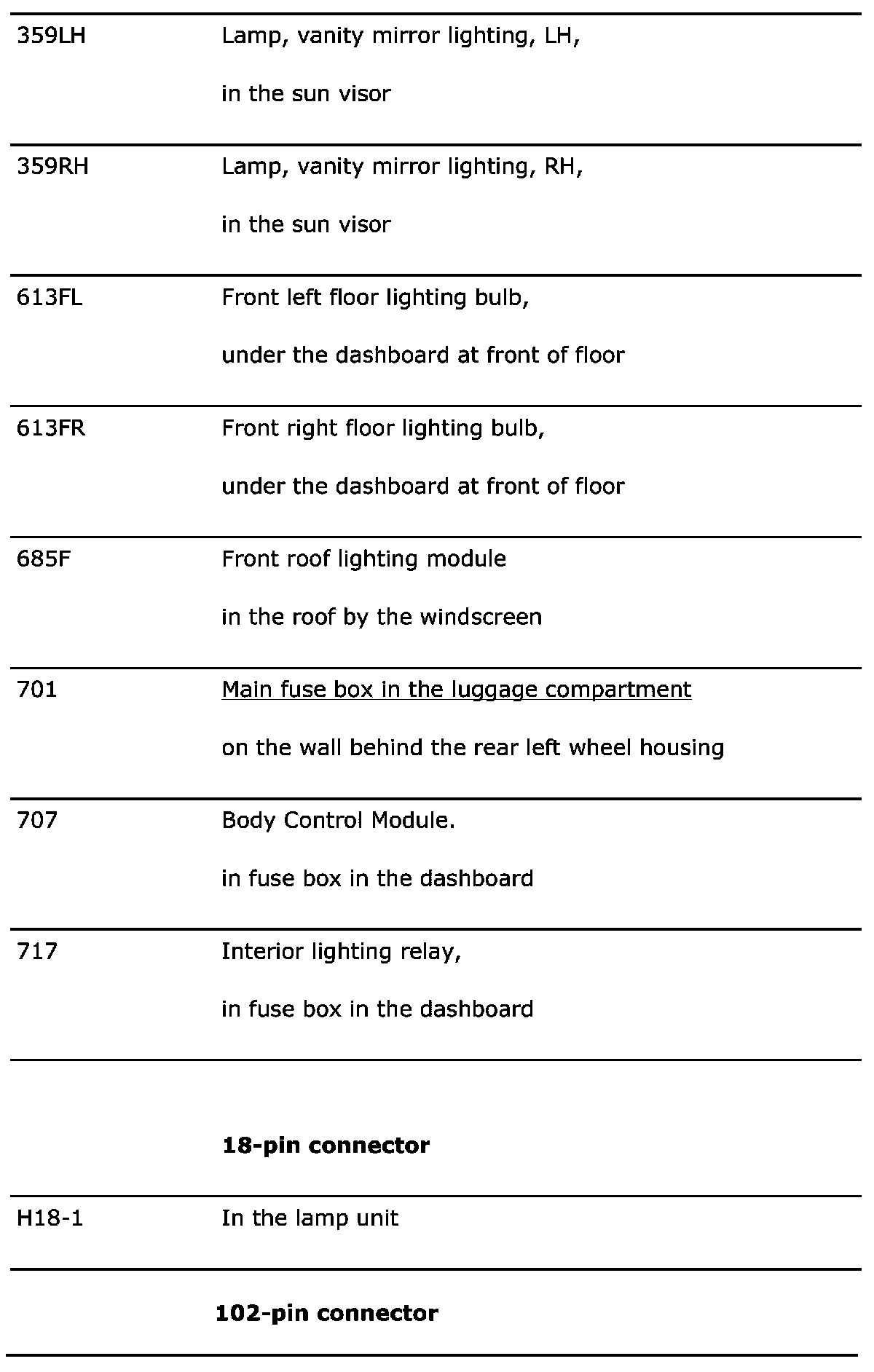

List Of Components (Part 2):

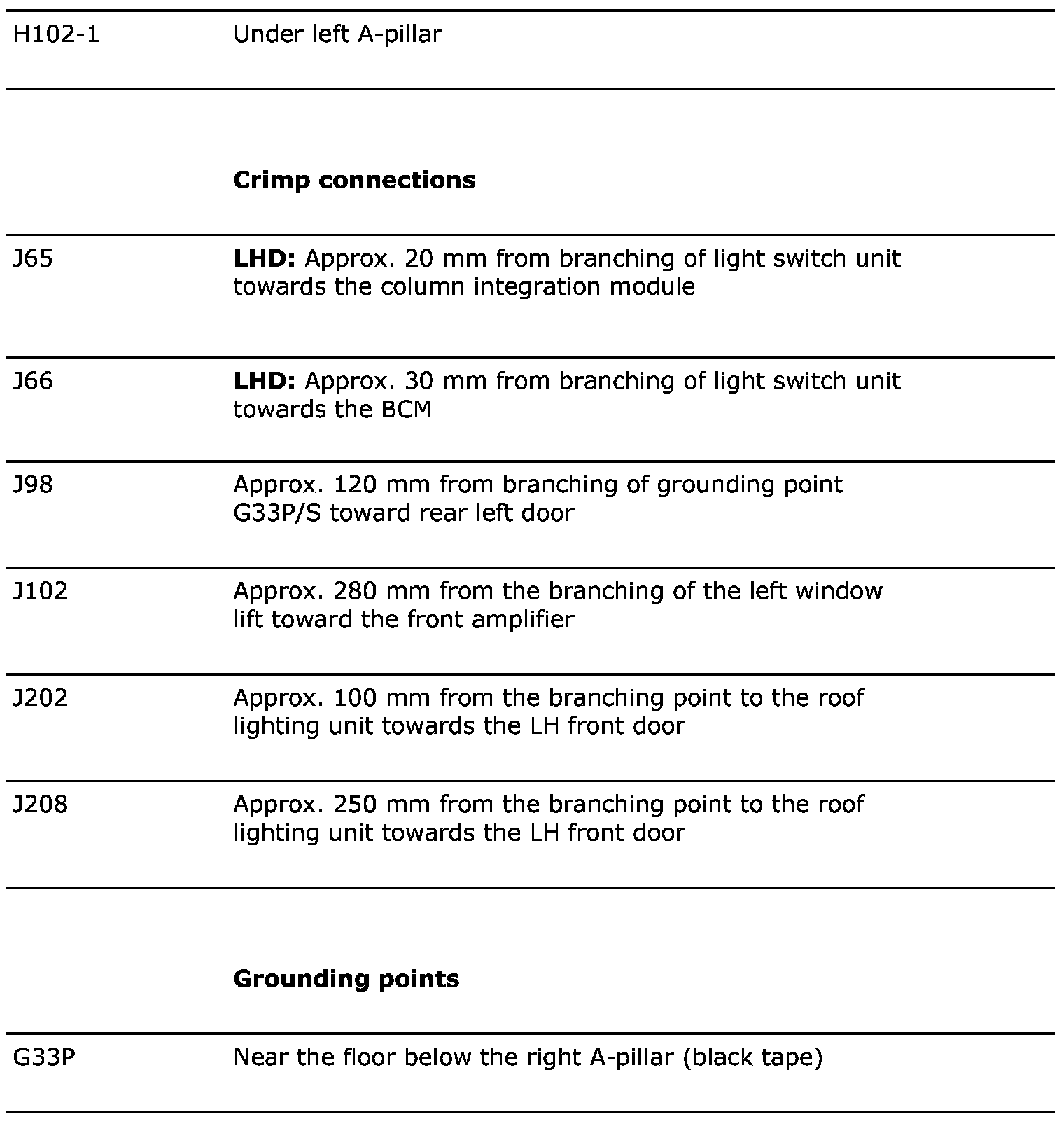

List Of Components (Part 3):
