Automatic Climate Control (Part 2/2)
Automatic Climate Control (Part 2/2)

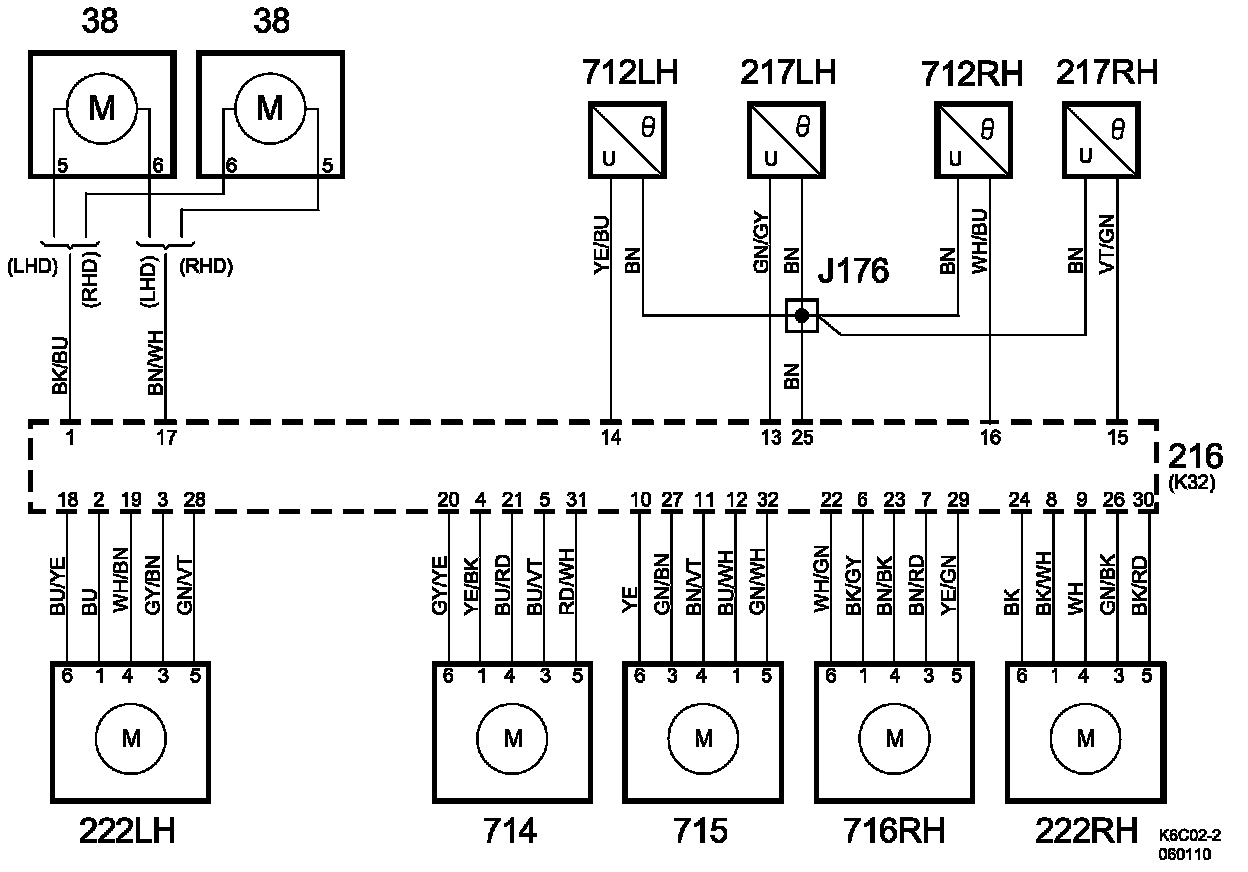

Automatic Climate Control (Part 2/2):

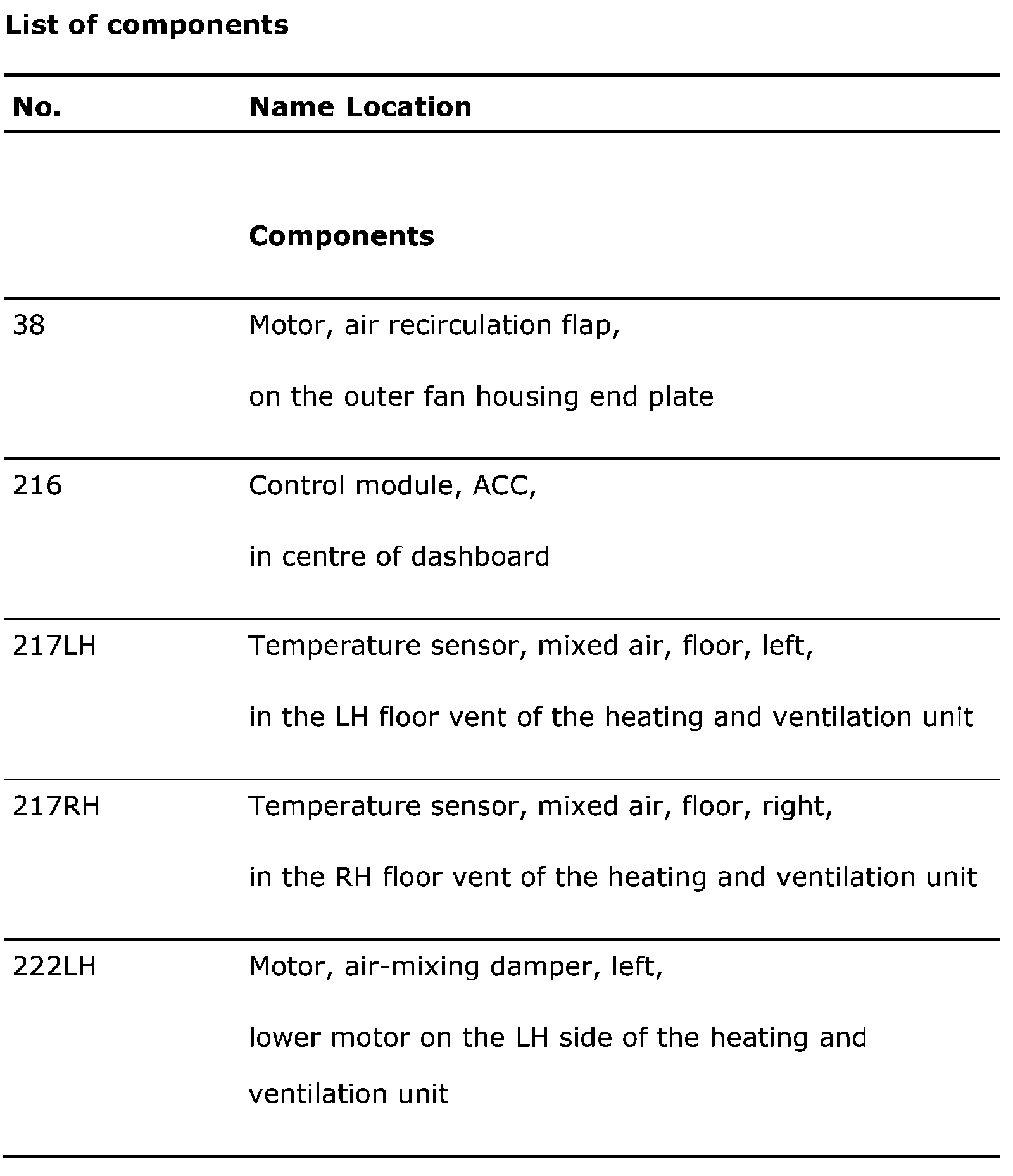

List Of Components (Part 1):

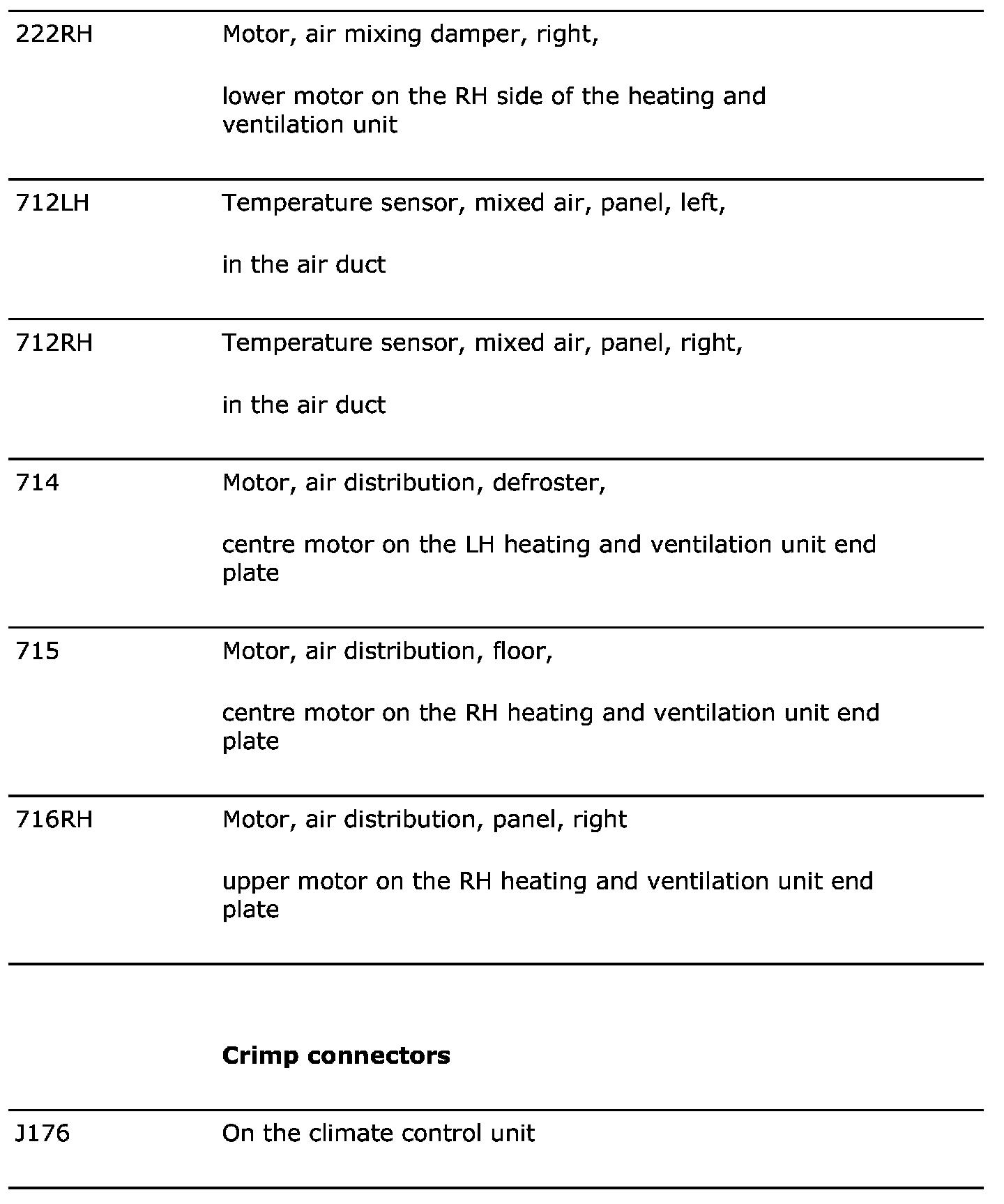

List Of Components (Part 2):
