Connector H8-12
Connector H8-12

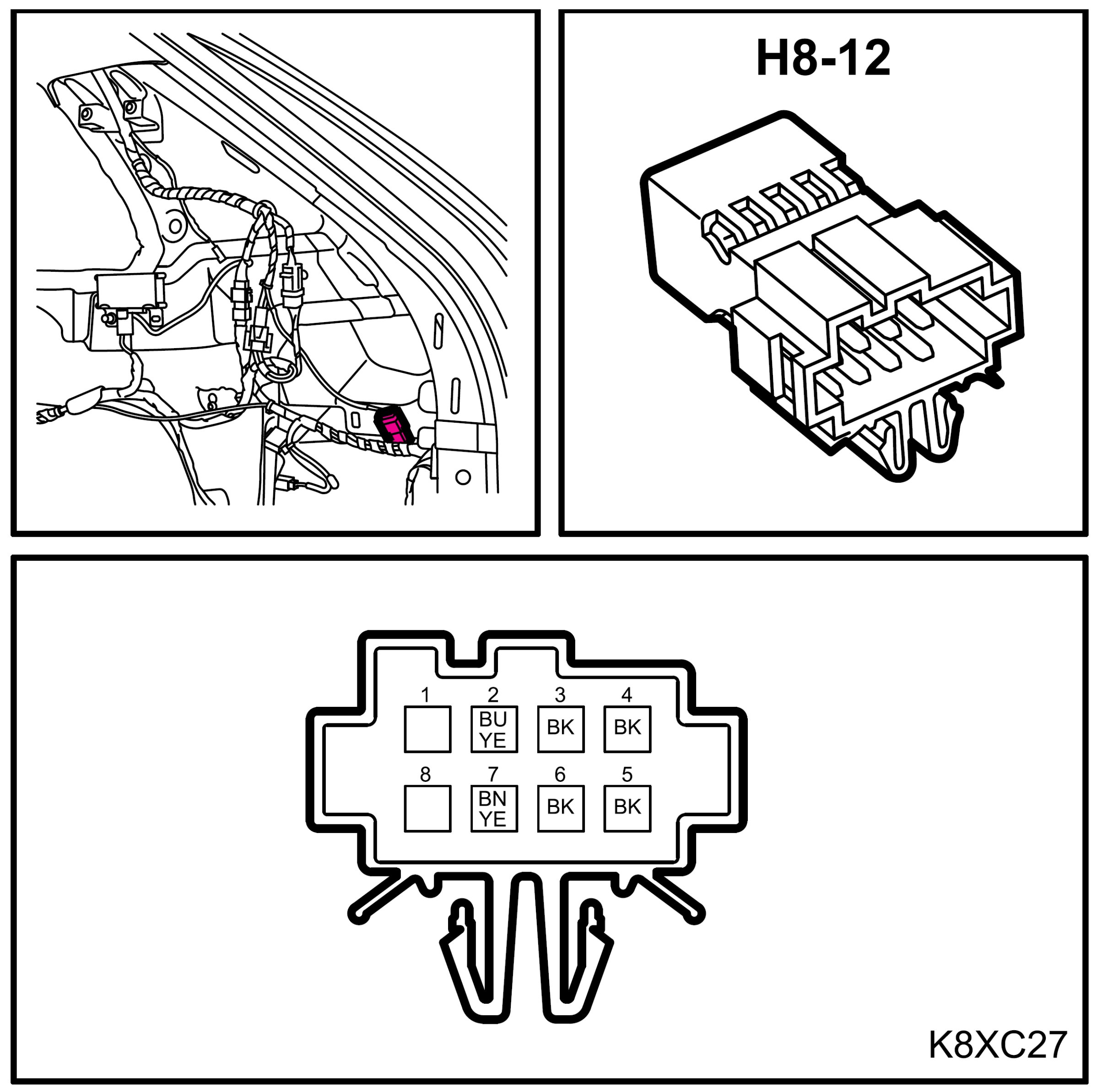

Connector H8-12:
Location:
on the side under the right-hand D-pillar closest to the tailgate
