Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor >> Windscreen Wiper Motor (62F)

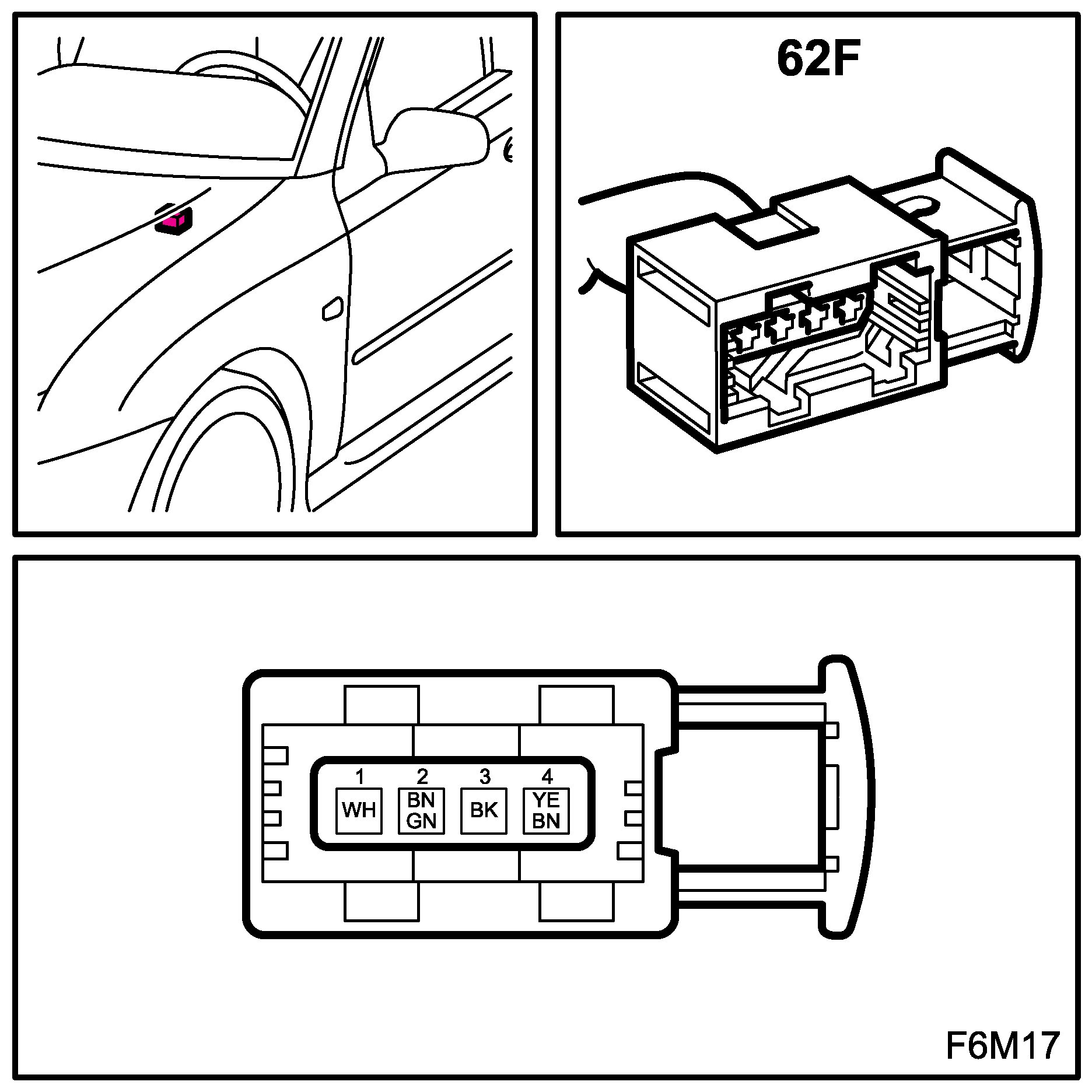

Windscreen Wiper Motor (62F)



Windscreen Wiper Motor (62F)

Location:
LHD: in engine bay on right of bulkhead partition
RHD: in engine bay on left of bulkhead partition


Windscreen Wiper Motor (62F):
