9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ultrasonic Sensor, Antitheft
>>
4D/5D
4D/5D

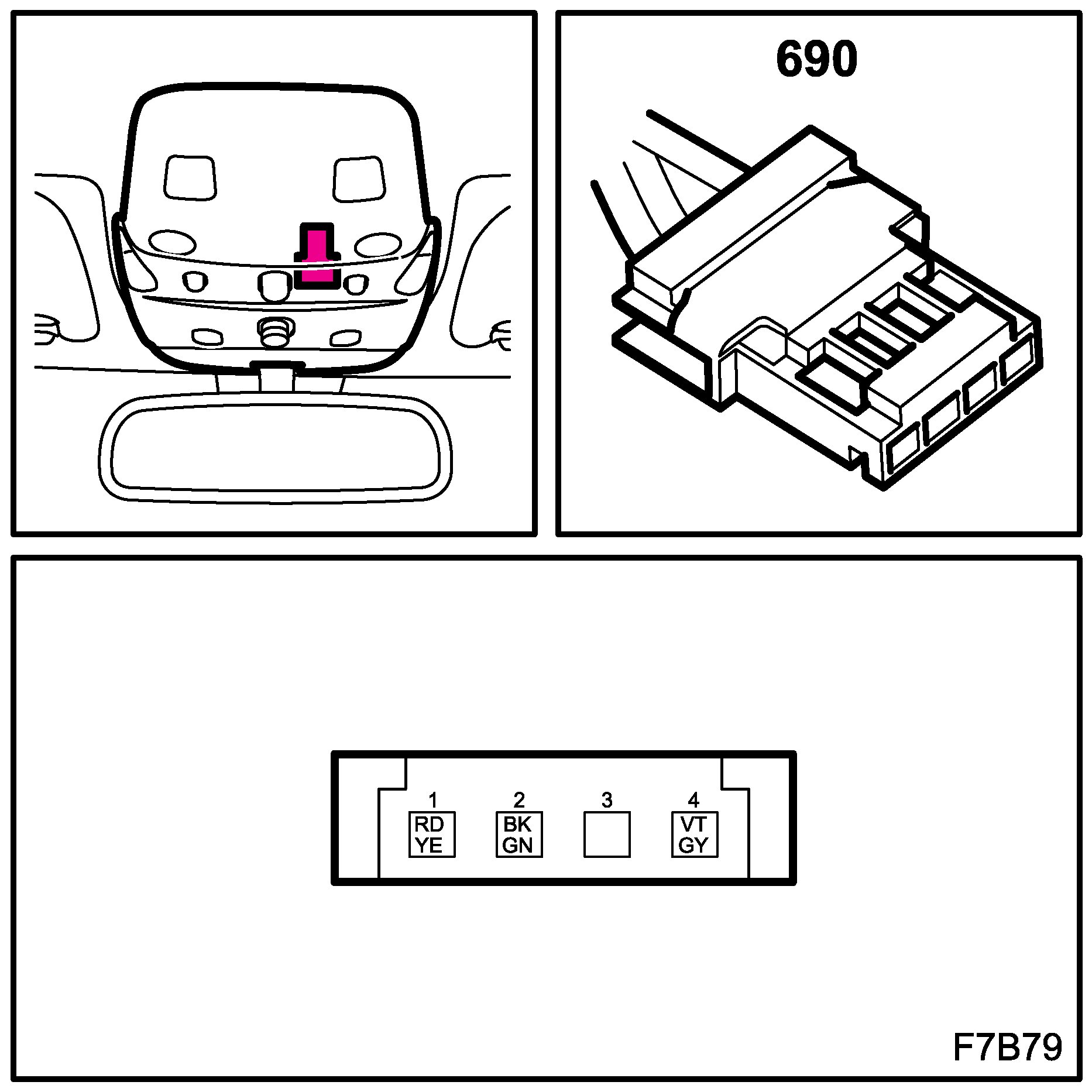

Theft Alarm Sensor (690)
Location:
in front roof console
4D/5D
Theft Alarm Sensor (690):
