Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk/Liftgate Sensor/Switch (For Alarm)
>>
Bootlid Lock Microswitch (622)
>>
5D
5D

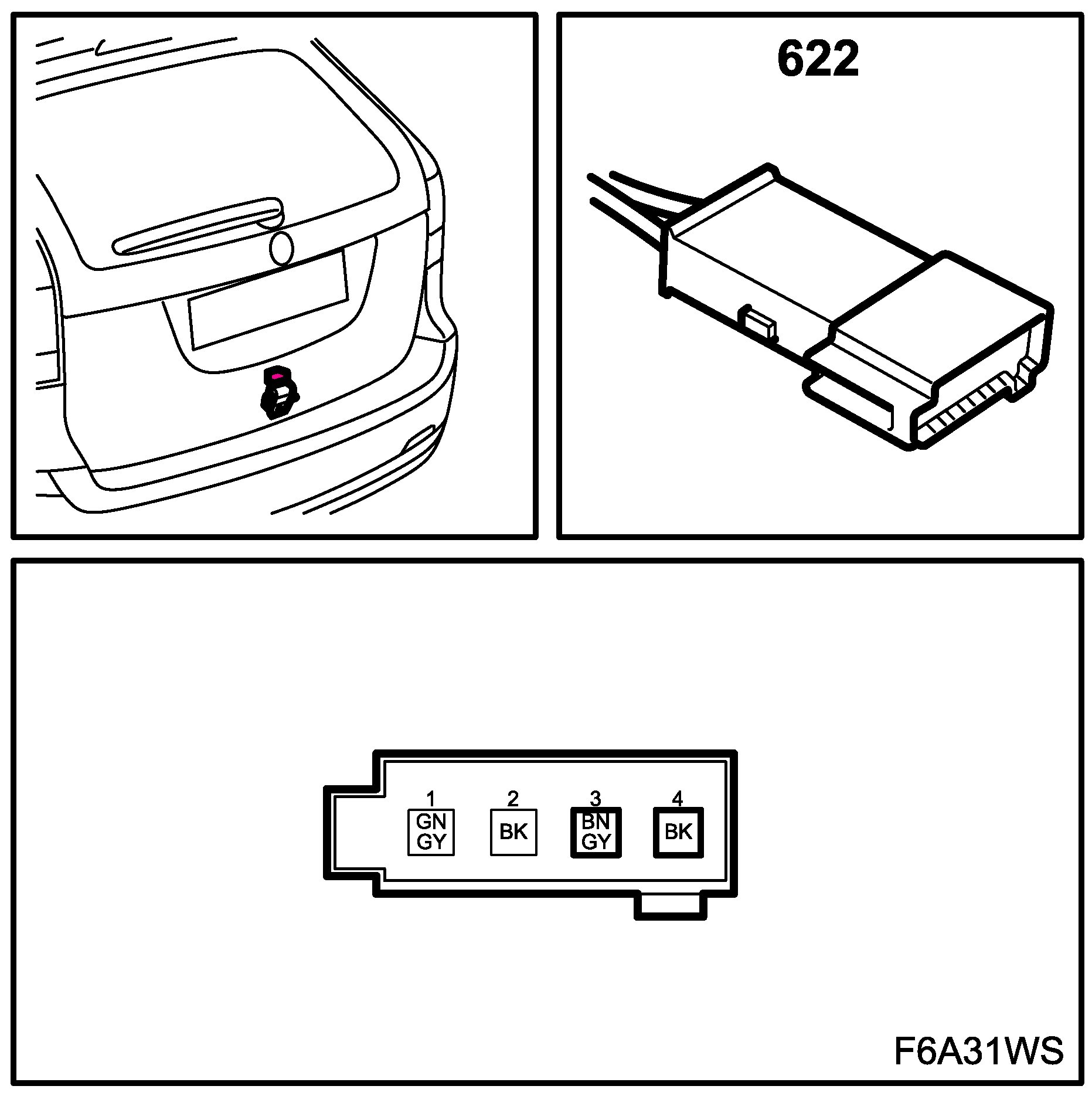

Bootlid Lock Microswitch (622)
Location:
in the bootlid's handle module
5D
Bootlid Lock Microswitch (622):
