Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Communication Module

Steering Mounted Controls Communication Module



Location: on the steering column below the steering wheel

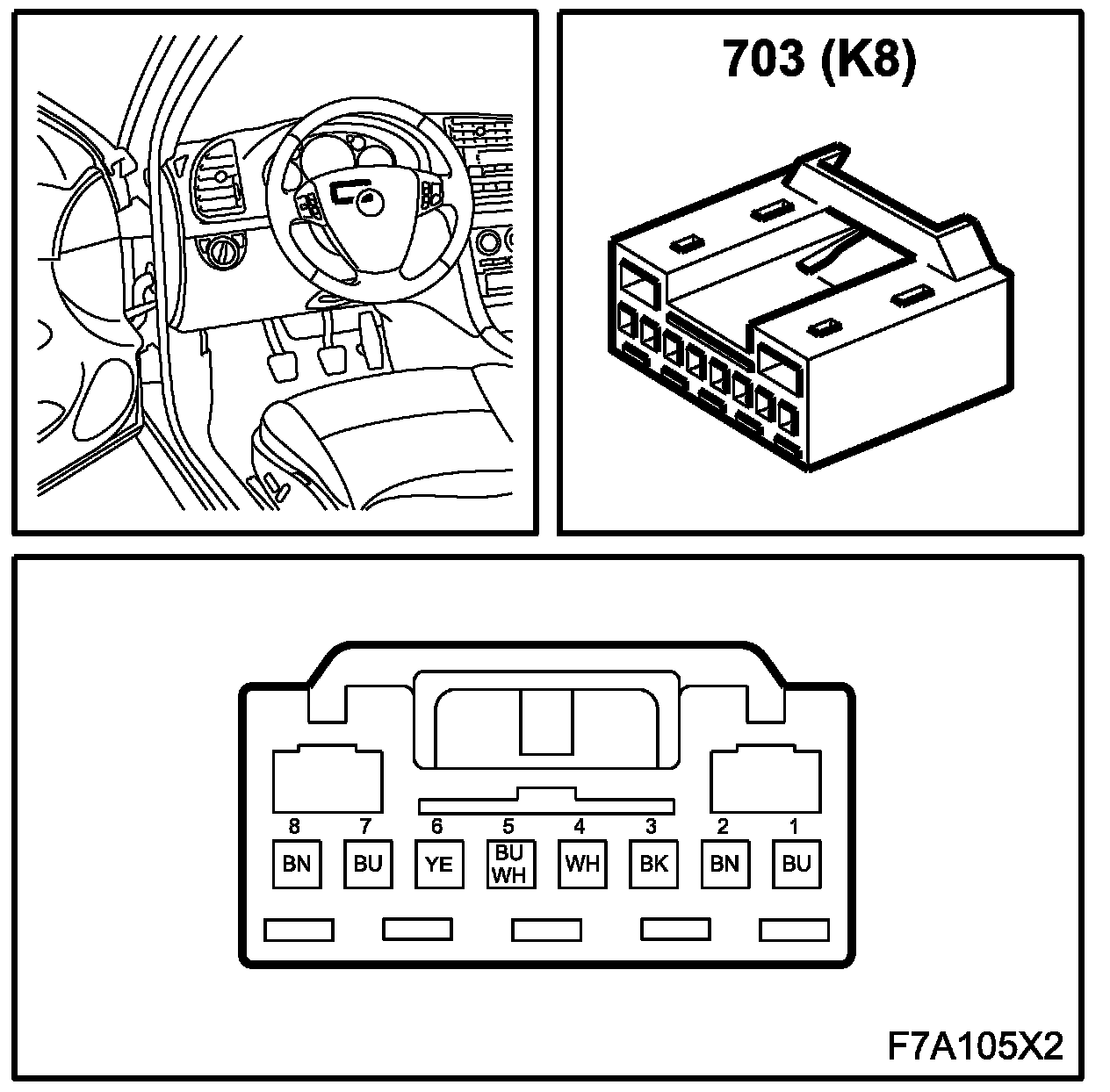

K8

Unit, Steering Column Assembly, (CIM) (703):

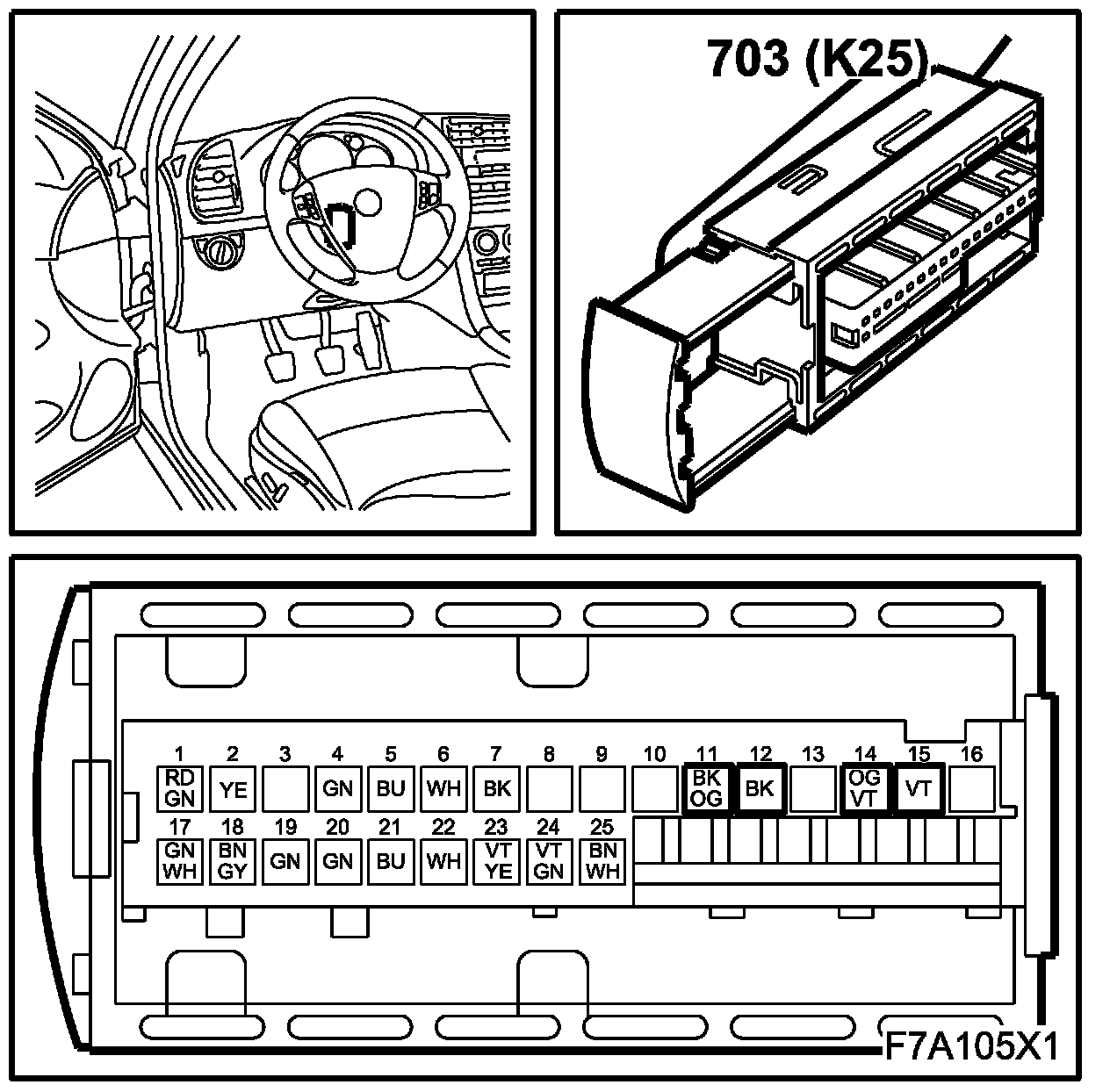

K25

Unit, Steering Column Assembly, (CIM) (703):
