Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock, A/T >> System Diagram >> Start Inhibitor Switch, Automatic In 245 (77)

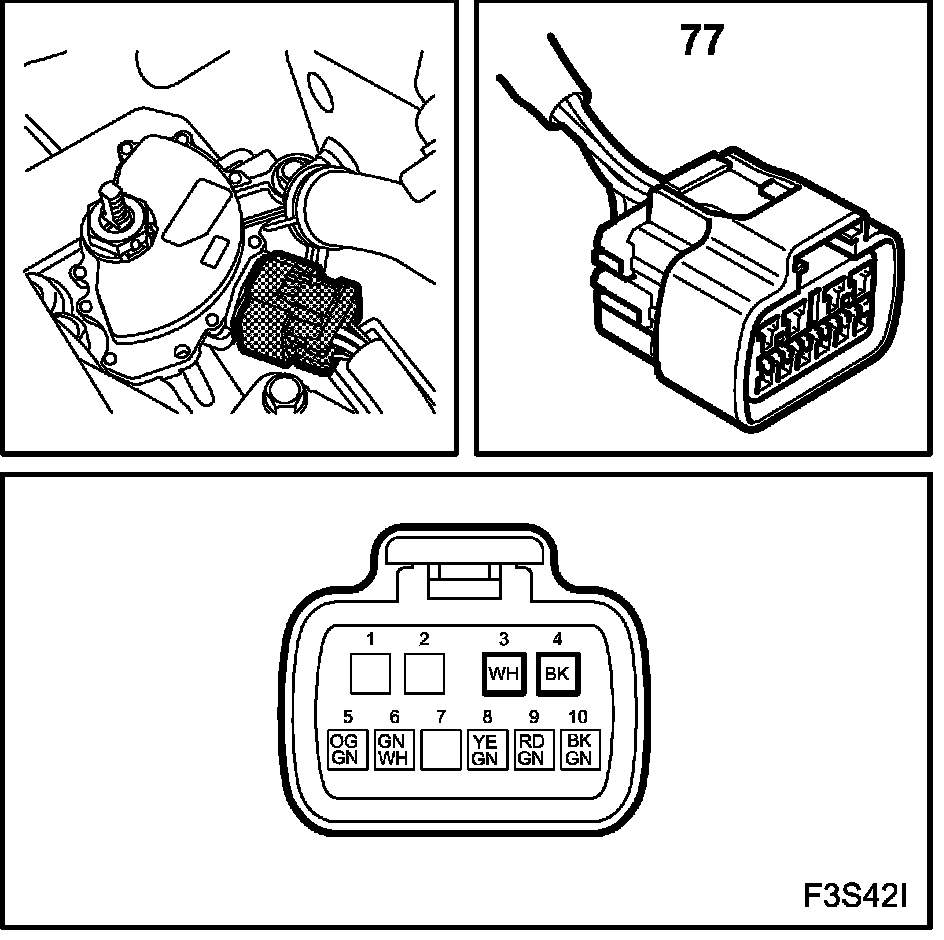

Start Inhibitor Switch, Automatic In 245 (77)






Location: In transmission range switch on transmission casing.
