CV



Motor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357Da)

Location: in the seat under the seat cushion

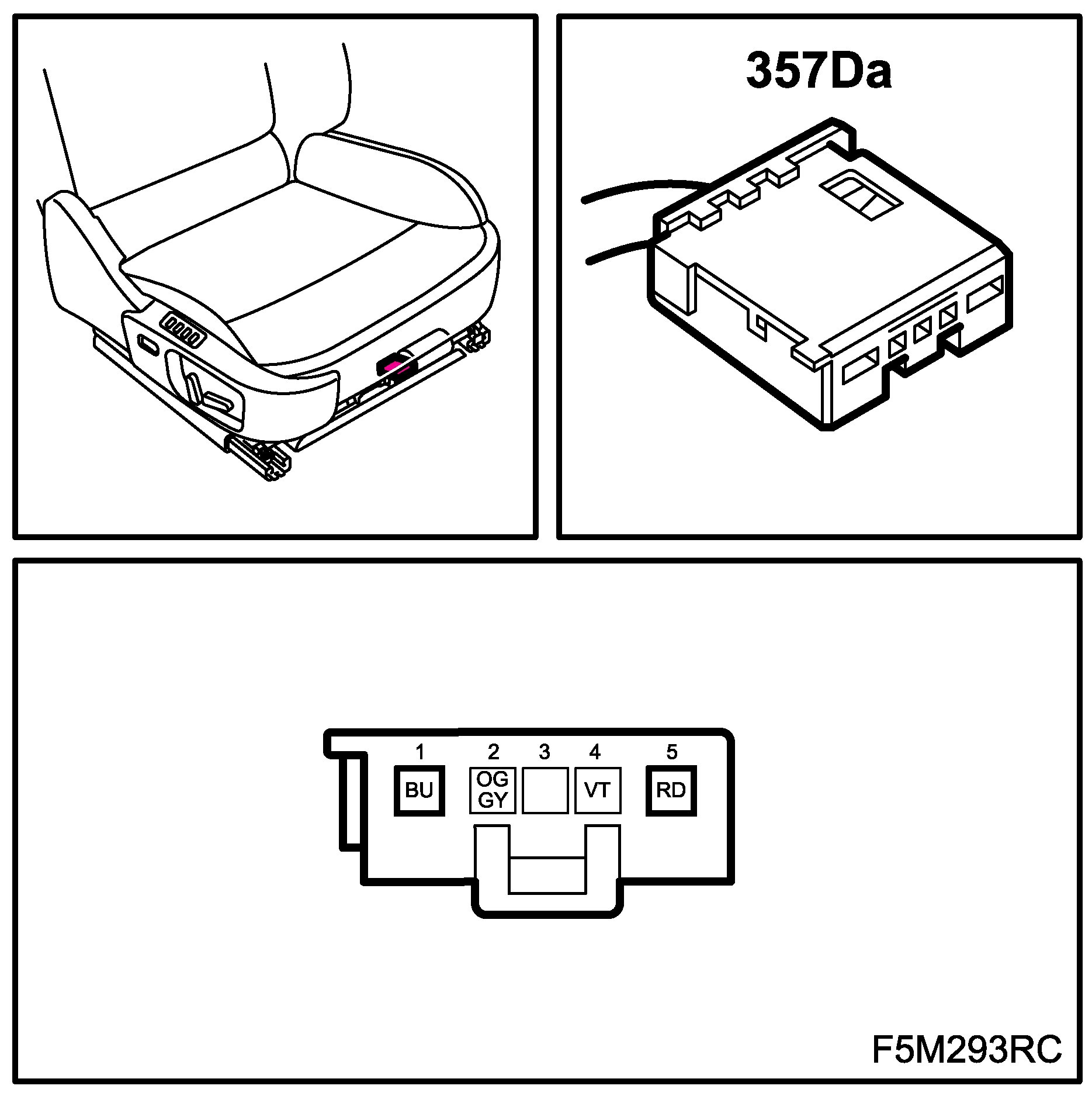

CV LH


Motor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357Da):

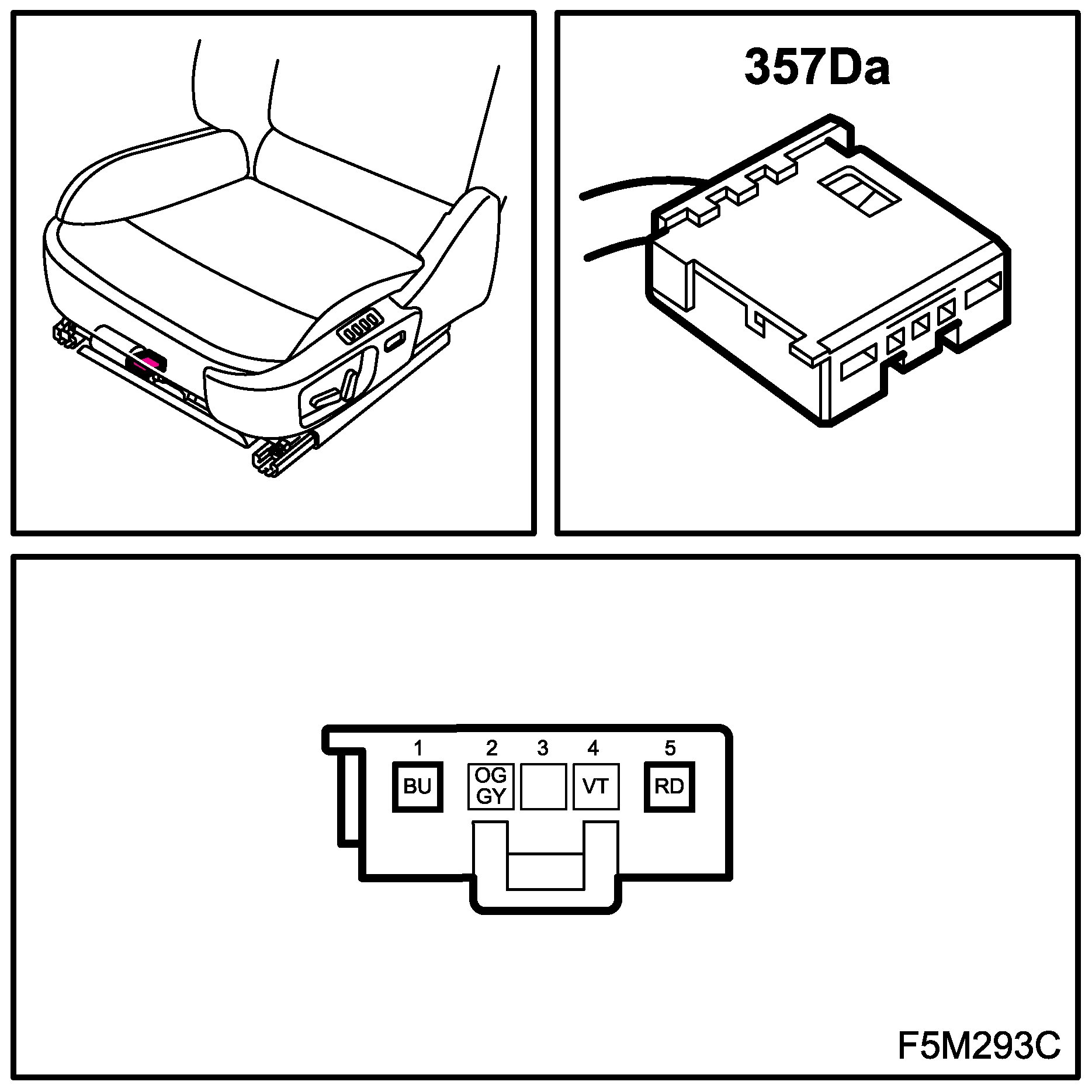

CV RH


Motor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357Da):
