Main Unit, Radio (353)
Location:
in centre console

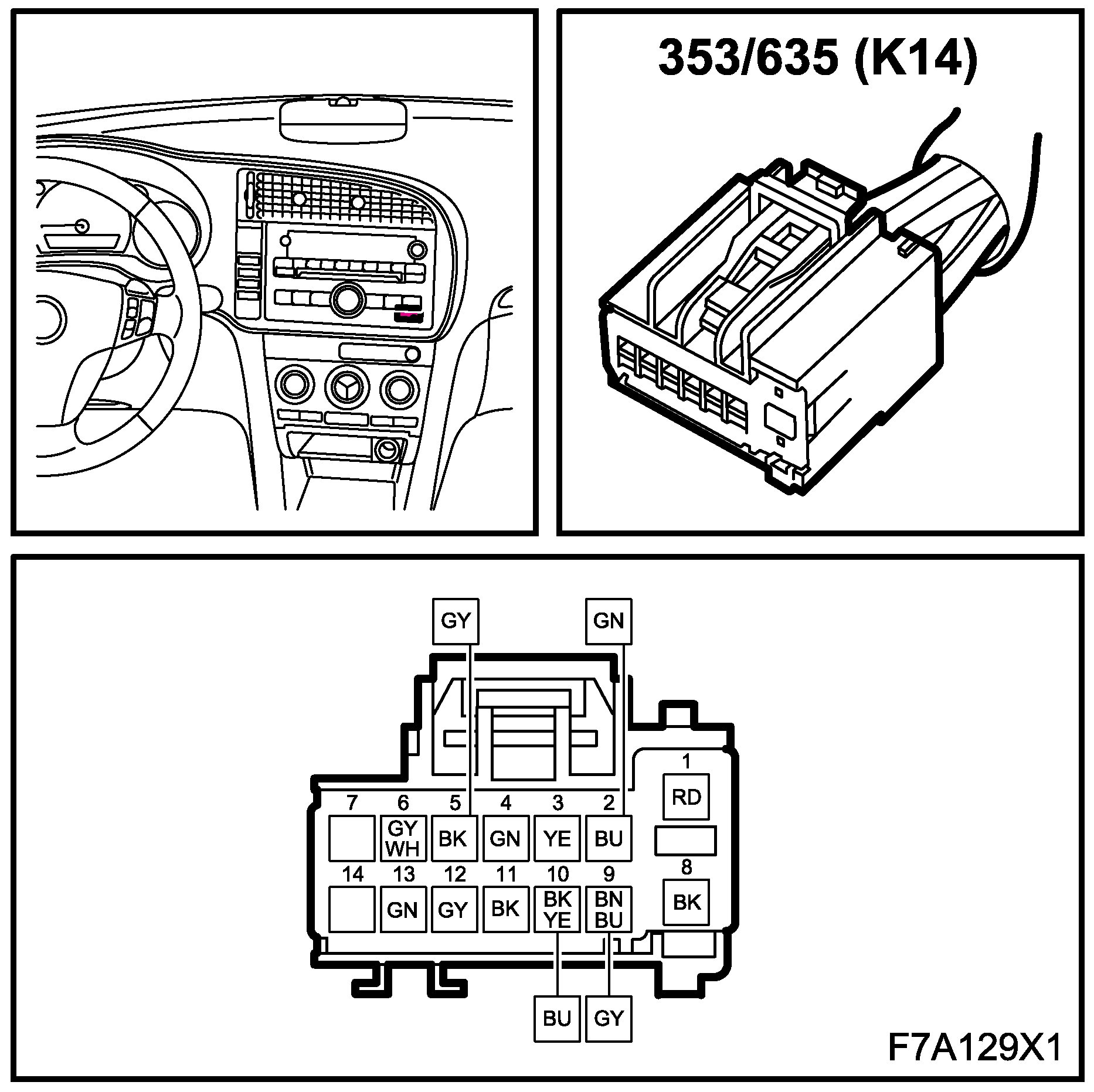

K14
Main Unit, Radio (353):
K16
Main Unit, Radio (353):
