Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Subwoofer (266RCW)
>>
CV
CV

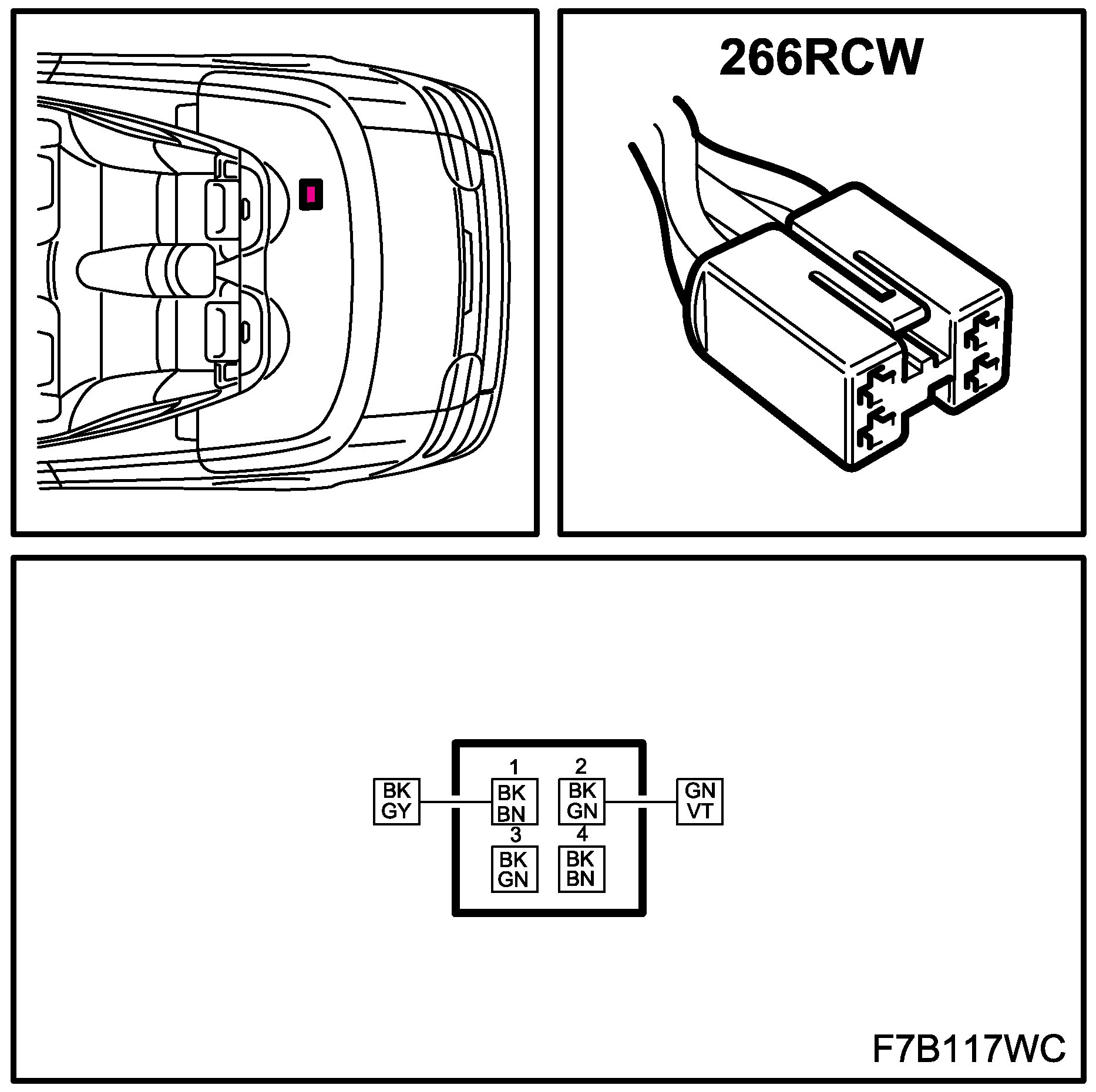

Subwoofer (266RCW)
Location:
CV:
in rear seat backrest
Subwoofer (266RCW):
