Radio Receiver, TMC (718)



Radio Receiver, TMC (718)

Location:
4D: above right wheel housing
5D: behind left wheel housing
CV: within the rear seat RH side trim

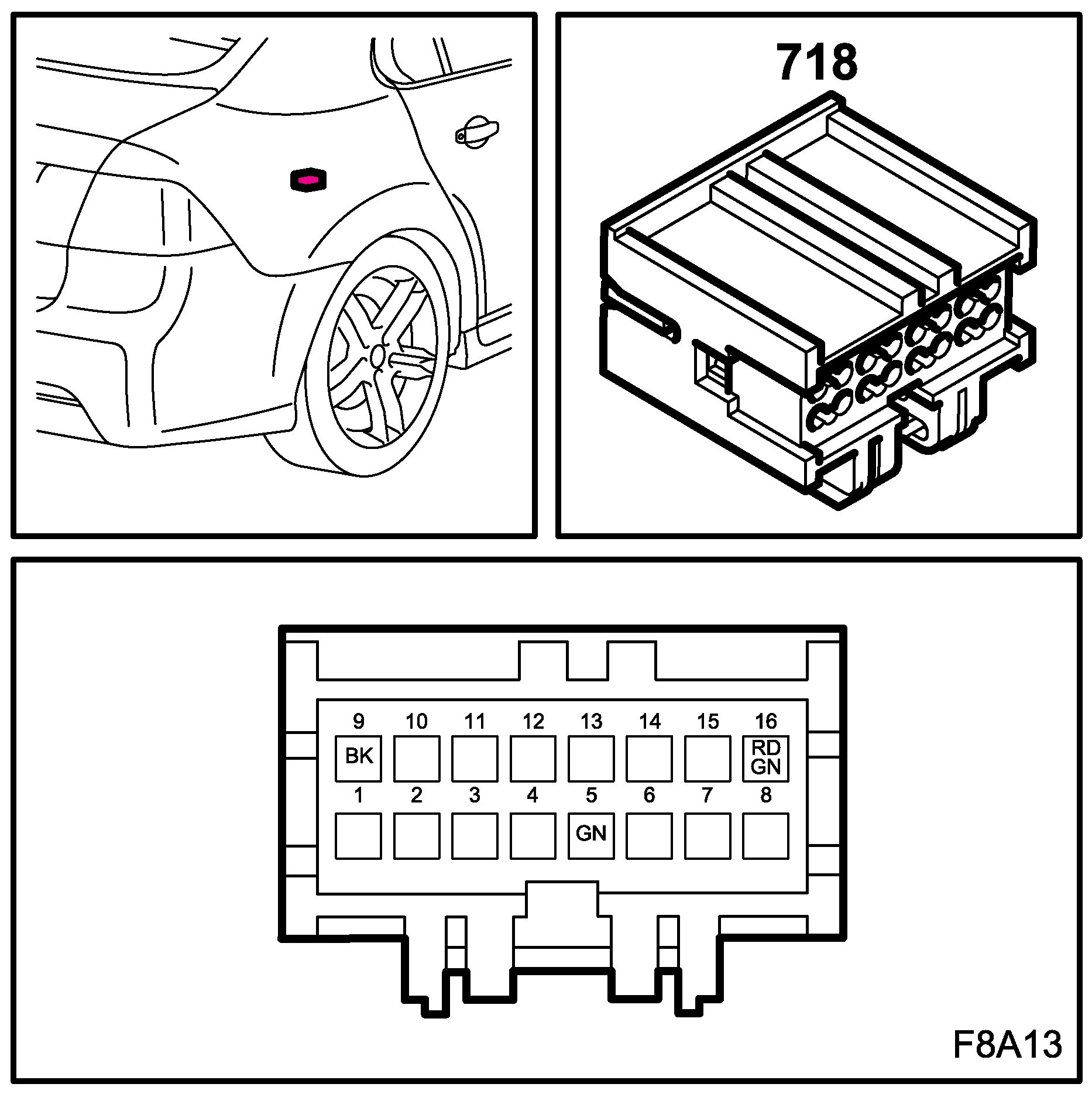

Radio Receiver, TMC (718):
