Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>
Speaker Amplifier (354)
Speaker Amplifier (354)
Speaker Amplifier (354)
Location:
at the rear left wheel housing

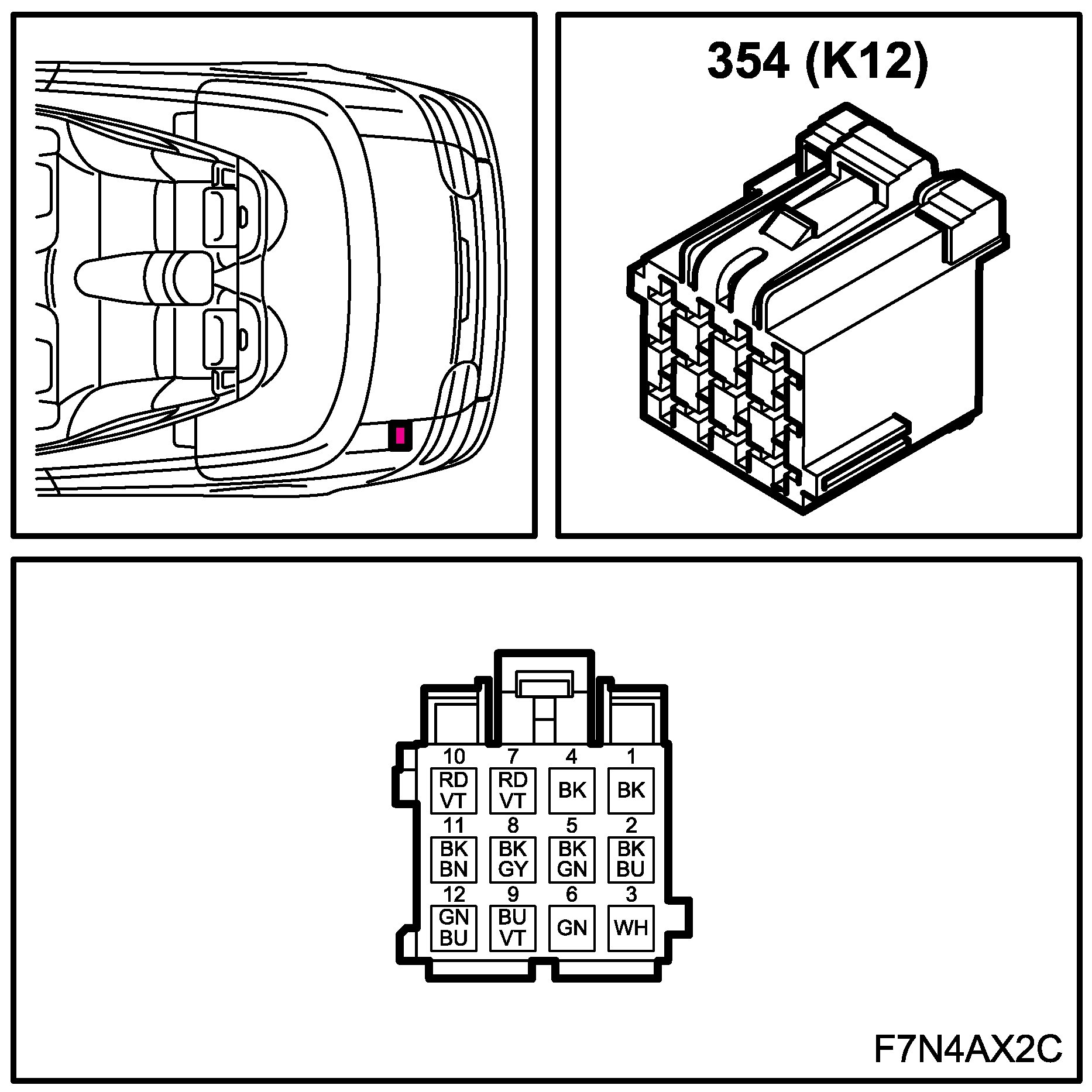

K12
Speaker Amplifier (354):

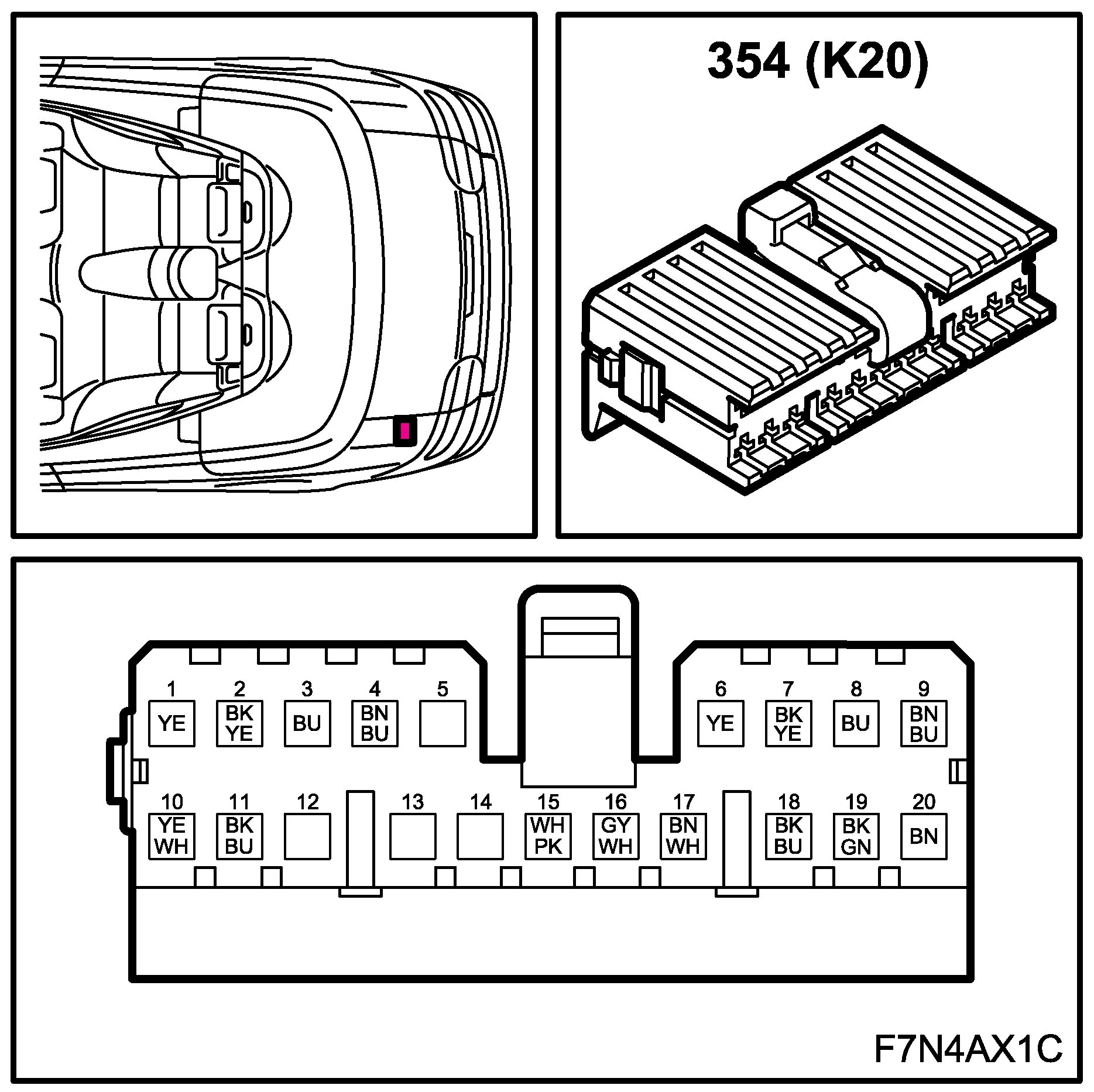

K20
Speaker Amplifier (354):
