Bass Speaker Amplifier (354S)
Location:
CV:
at the rear left wheel housing

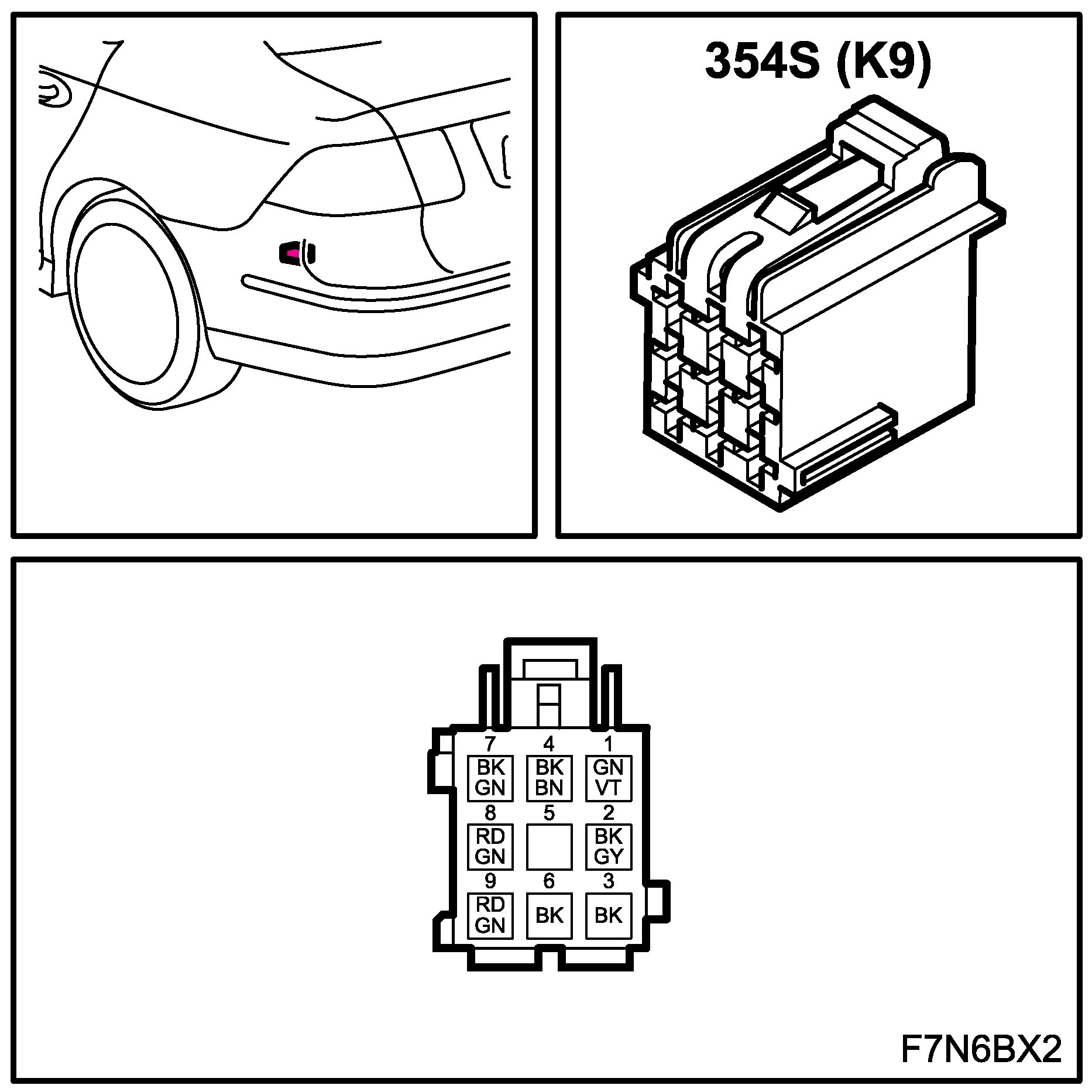

K9
Bass Speaker Amplifier (354S):

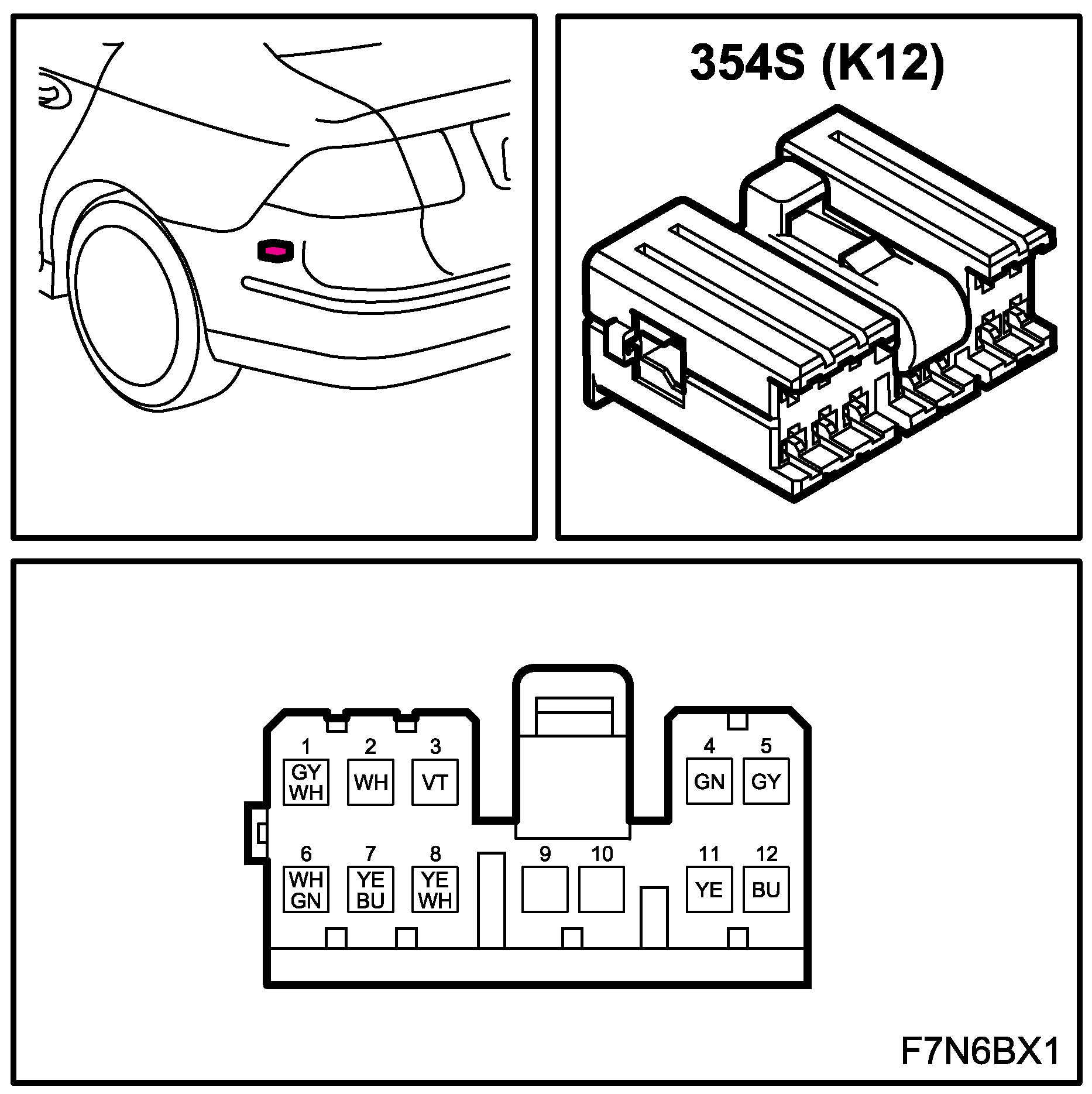

K12
Bass Speaker Amplifier (354S):
