Amplifier, Rear Speakers (354R)



Amplifier, Rear Speakers (354R)

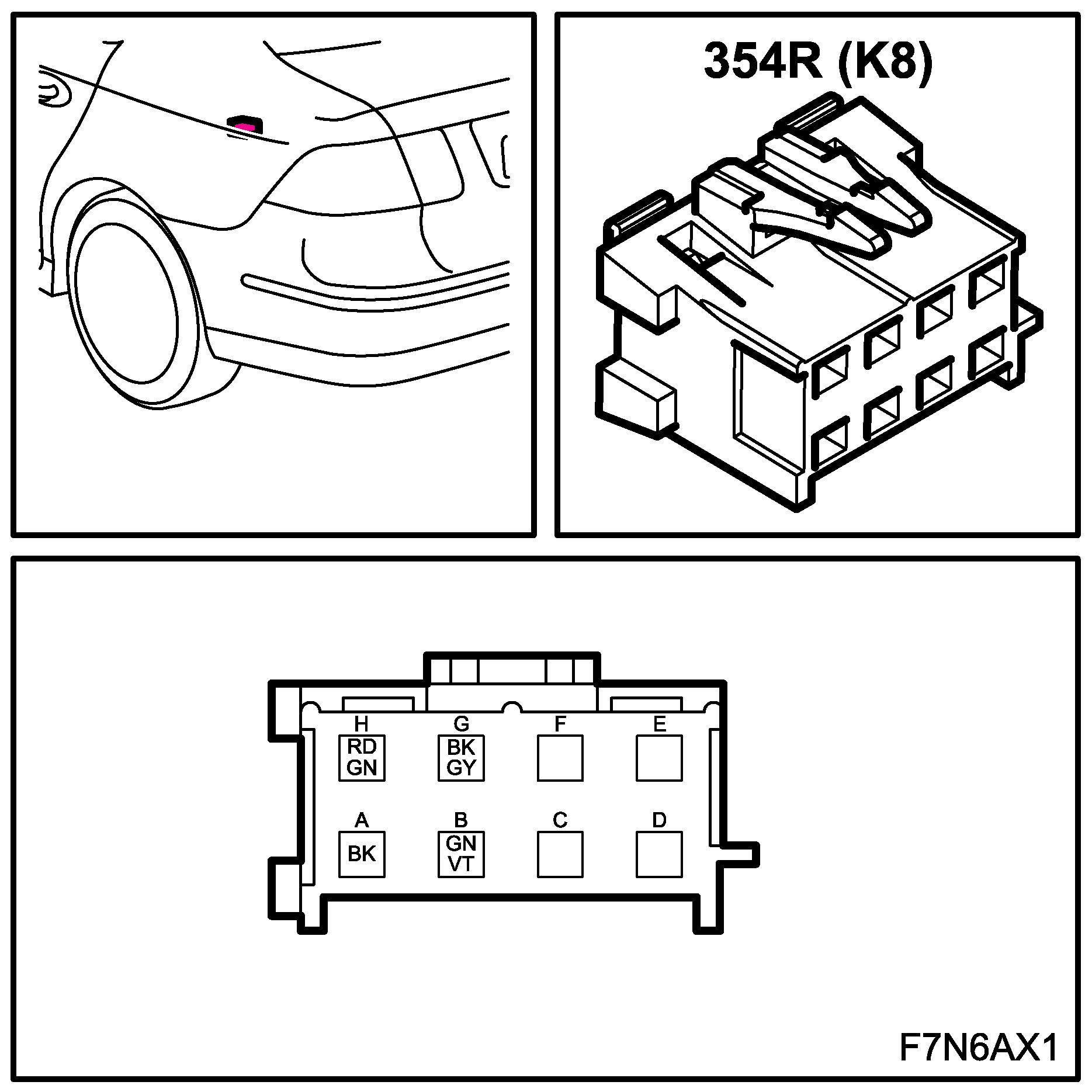

Location: inner amplifier on bracket at rear left wheel housing

K8


Amplifier, Rear Speakers (354R):






K24


Amplifier, Rear Speakers (354R):
