Amplifier, Front Speakers (354F)



Amplifier, Front Speakers (354F)

Location: outer amplifier on bracket at rear left wheel housing

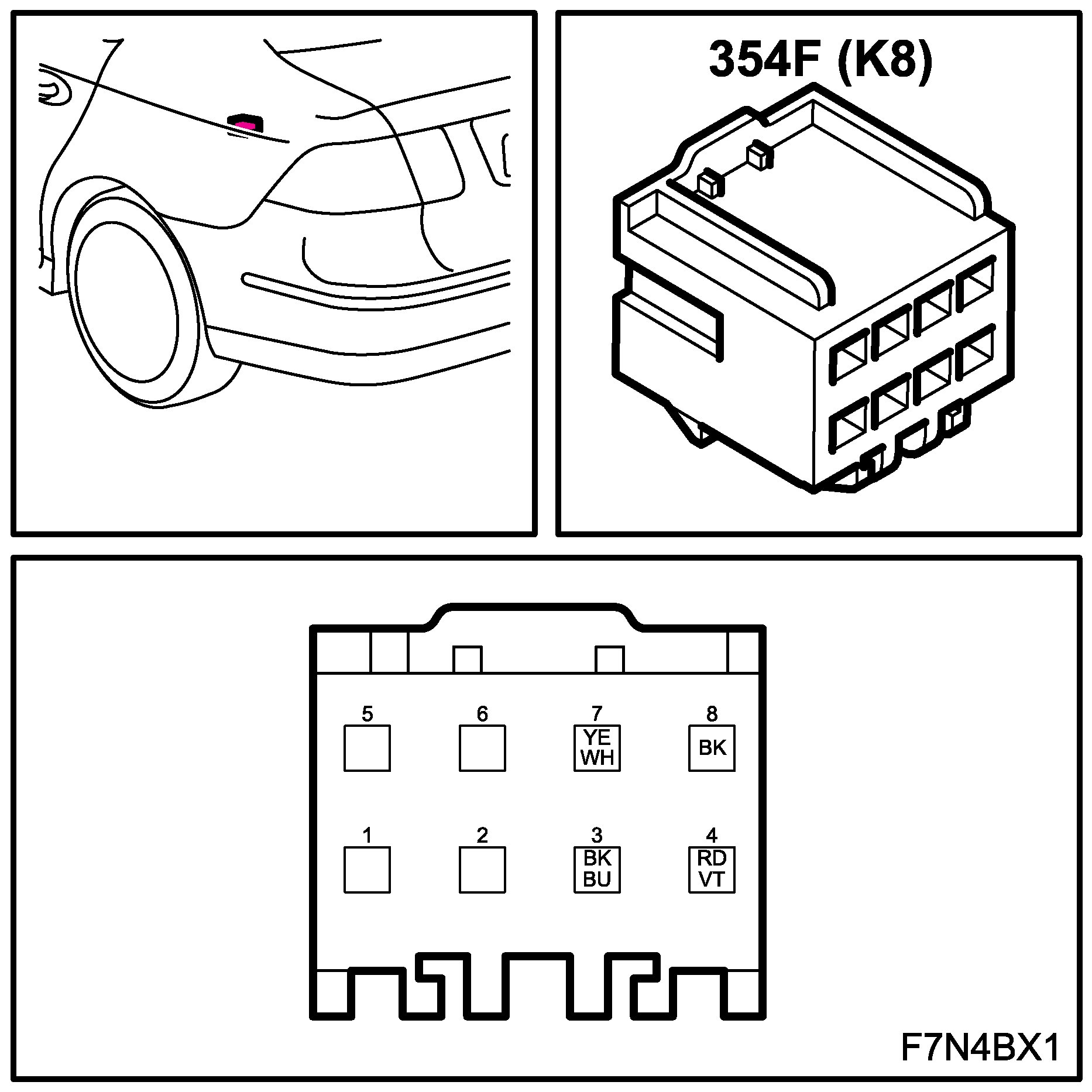

K8


Amplifier, Front Speakers (354F):

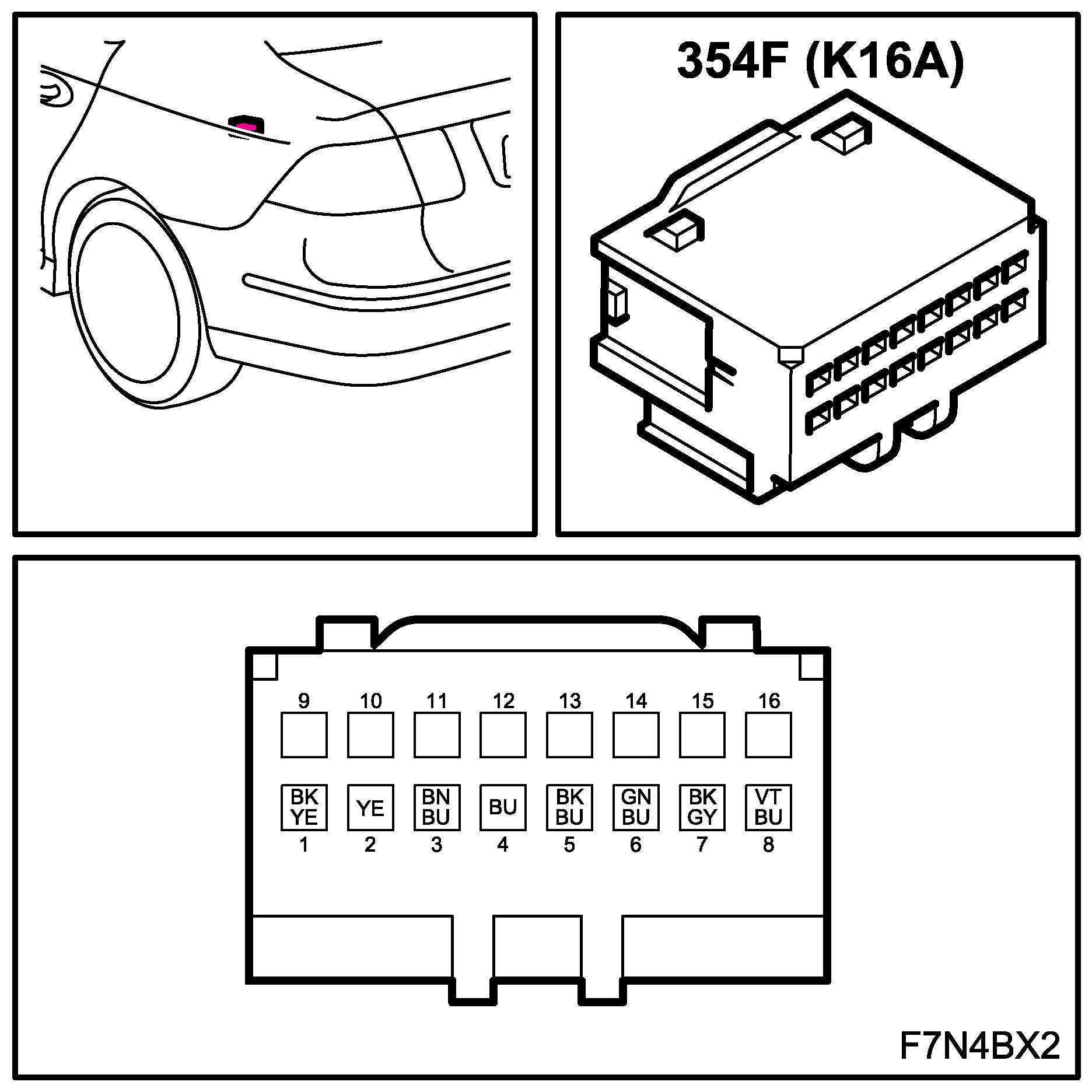

K16A


Amplifier, Front Speakers (354F):

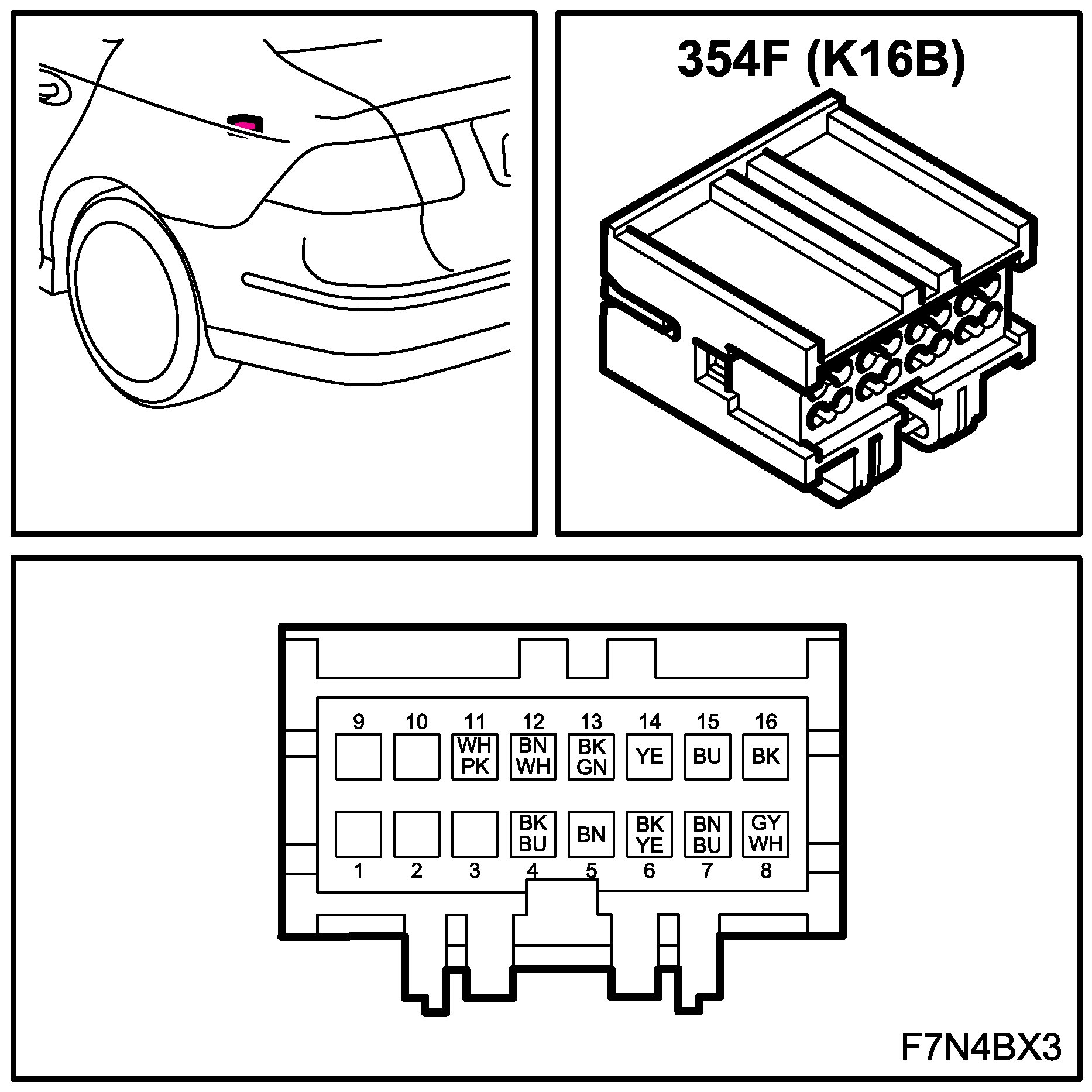

K16B


Amplifier, Front Speakers (354F):
