Amplifier (354SM), Bose(R) Centerpoint (R) Surround System

Location:
4D: at the rear left wheel housing

K8

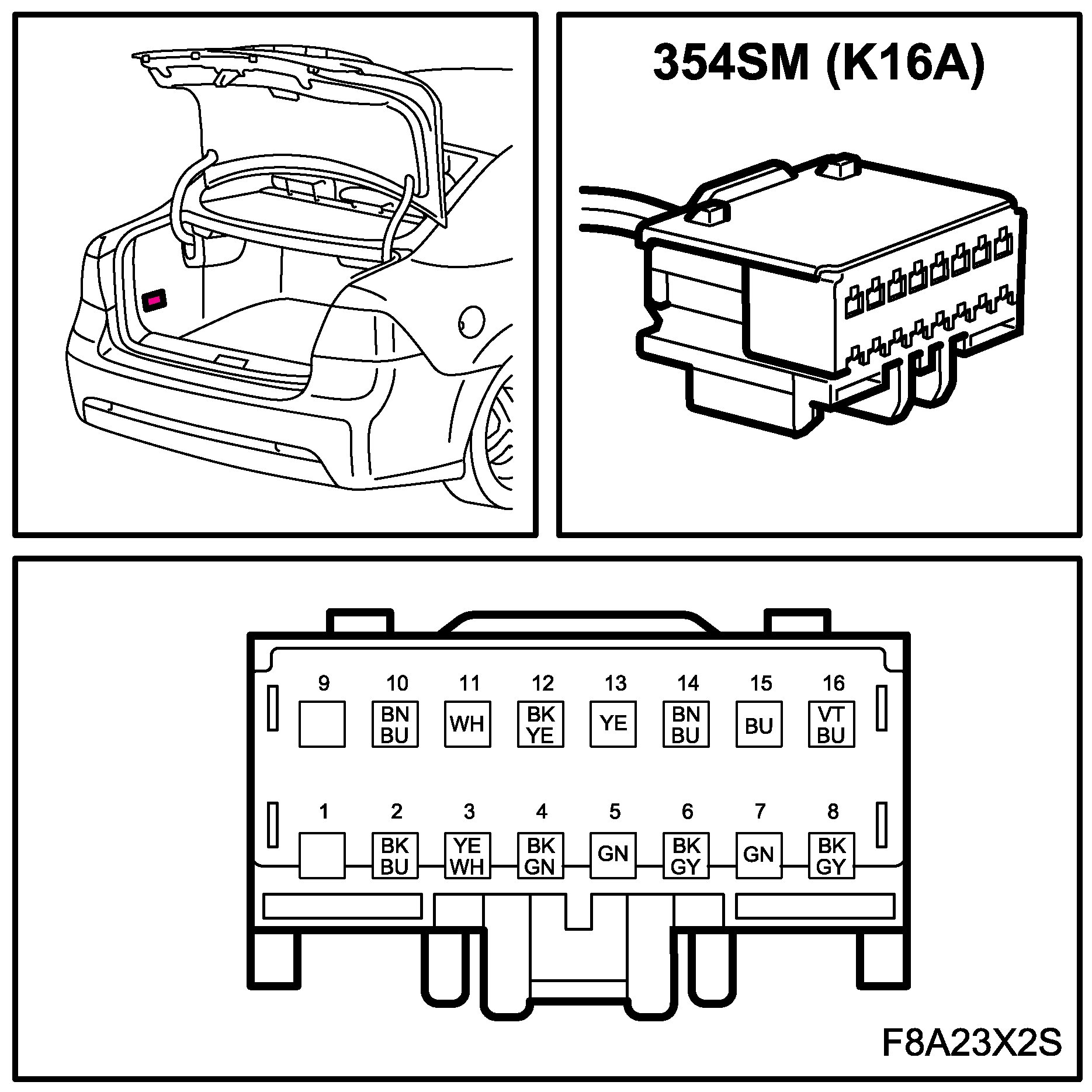

Amplifier (354SM), Bose(R) Centerpoint(R) Surround System:






K16A

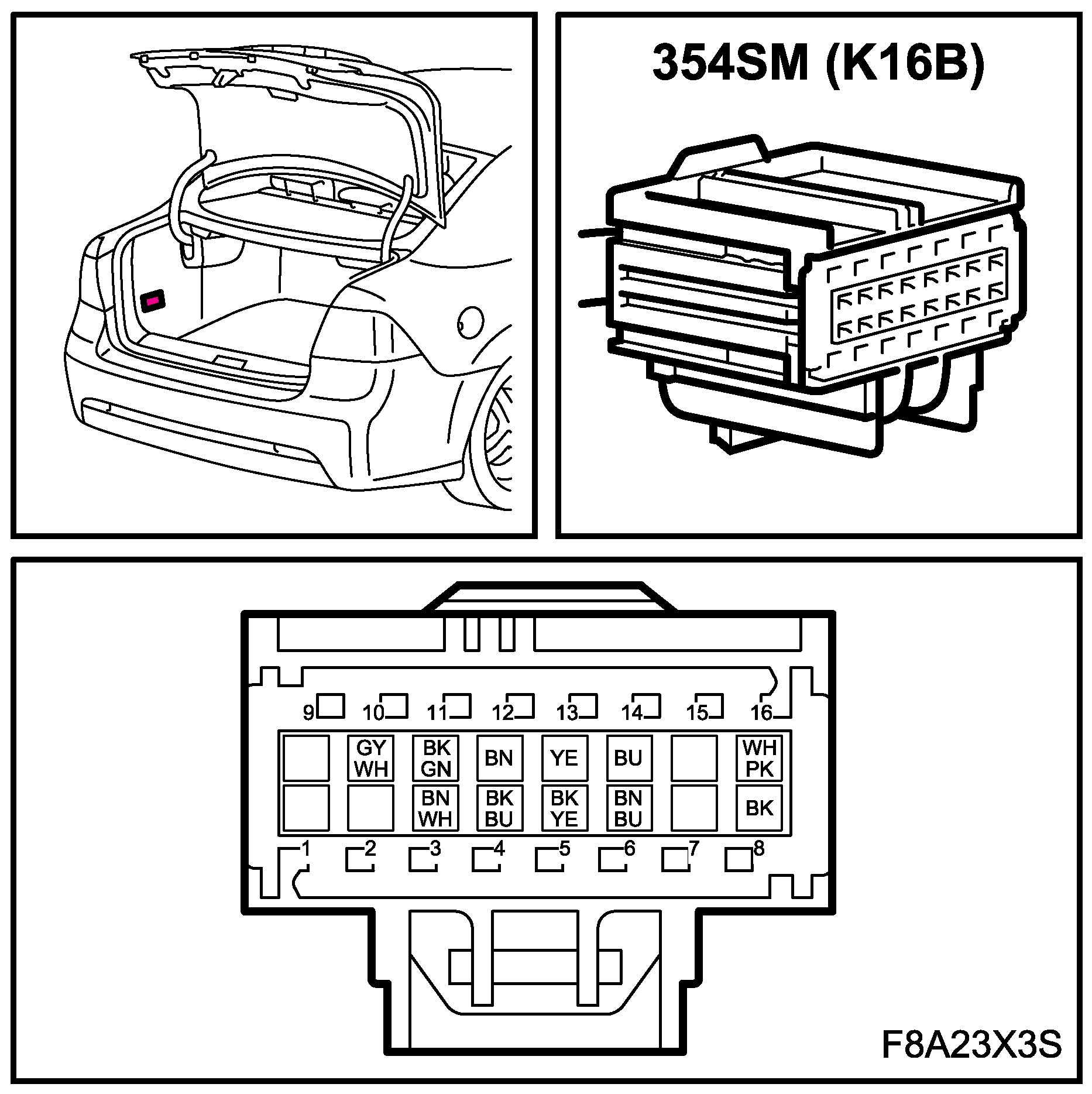

Amplifier (354SM), Bose(R) Centerpoint(R) Surround System:






K16B


Amplifier (354SM), Bose(R) Centerpoint(R) Surround System:
