Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> SPA Control Module (630), K18, 5D

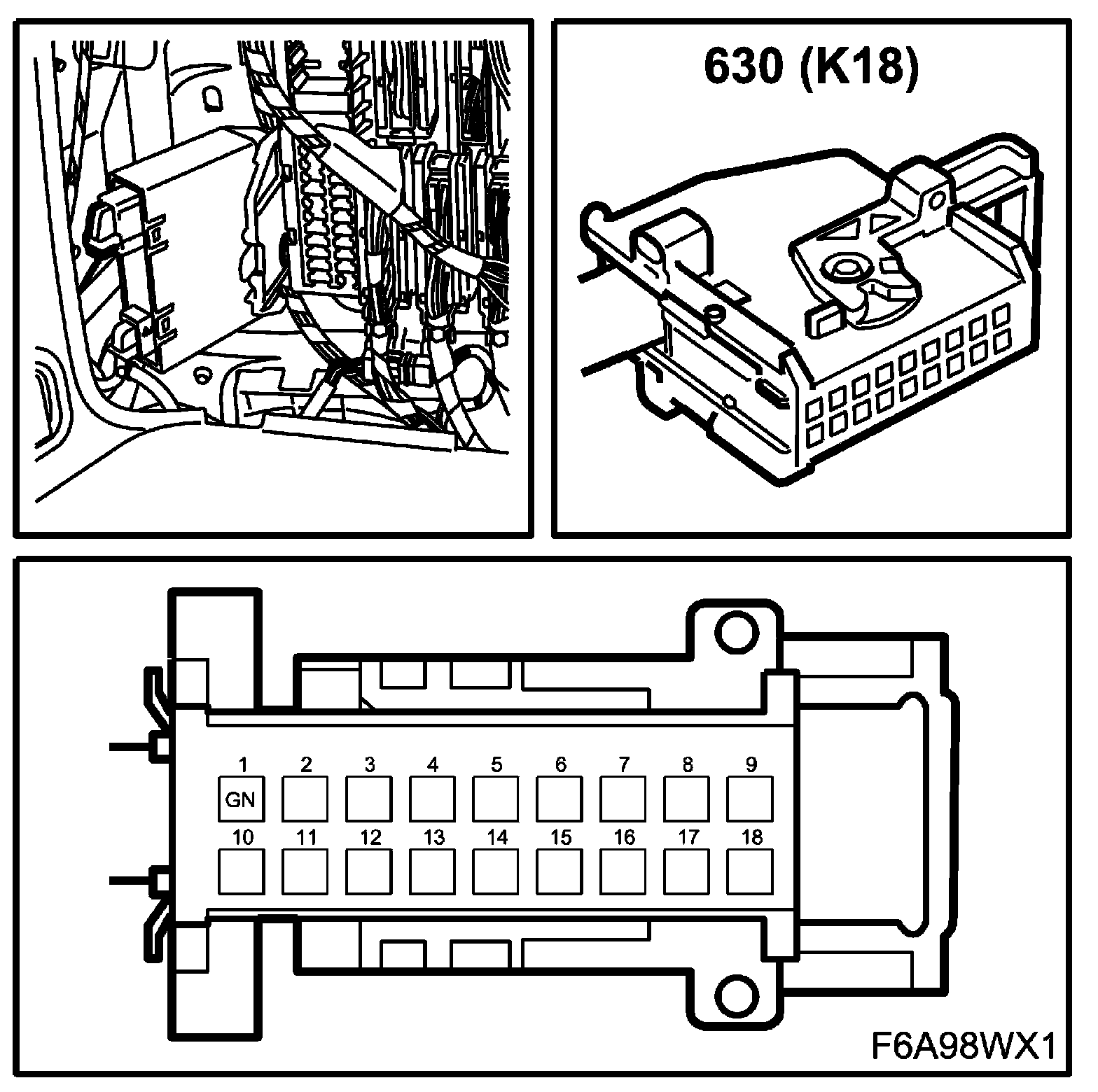

SPA Control Module (630), K18, 5D

SPA Control Module (630), K18, 5D:
