Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> 5D

5D

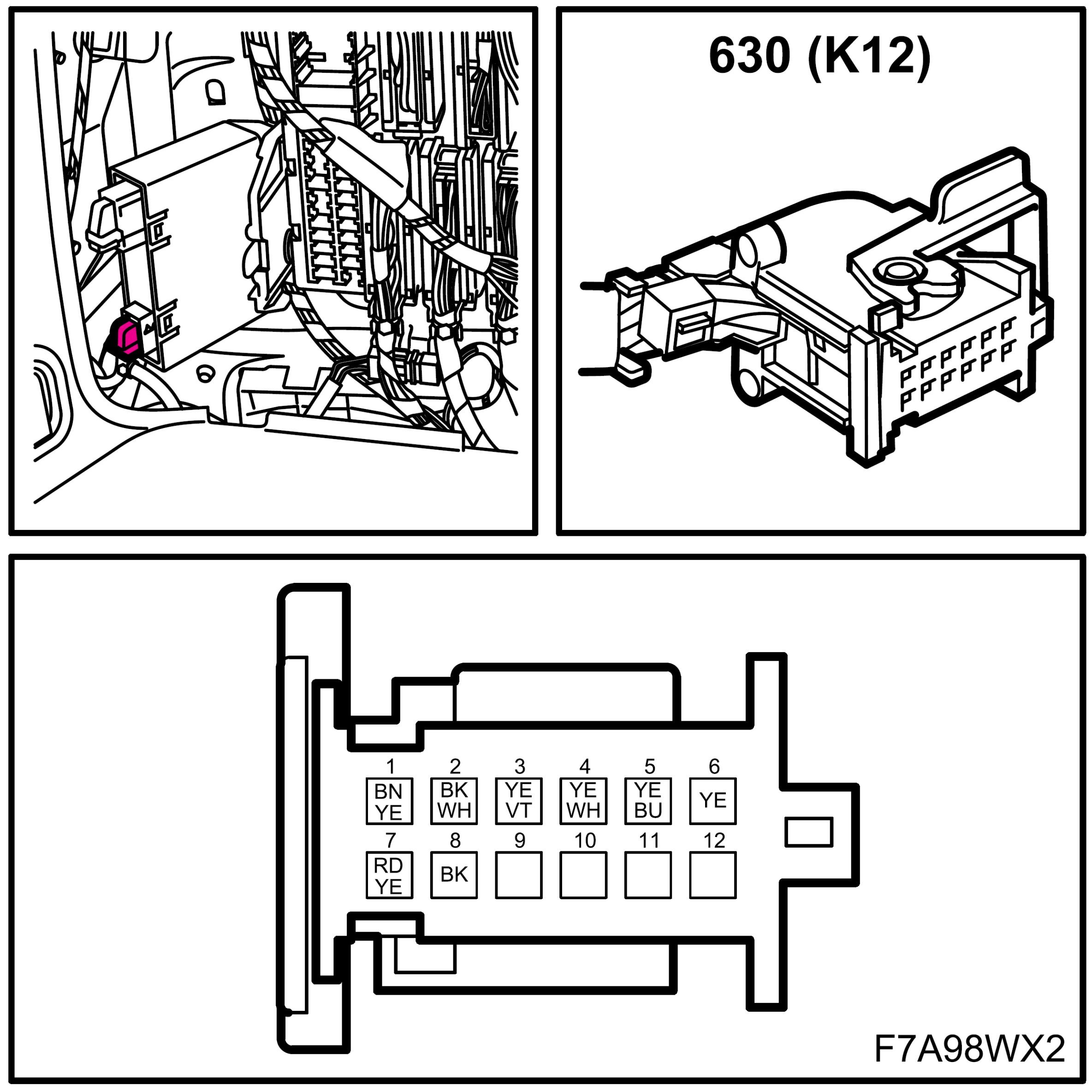

SPA Control Module (630):






Location: on side of rear electrical centre. K12


SPA Control Module (630):






Location: on side of rear electrical centre. K18
