Integrated Accessory Switch Assembly
>>
Switch Panel (737A)

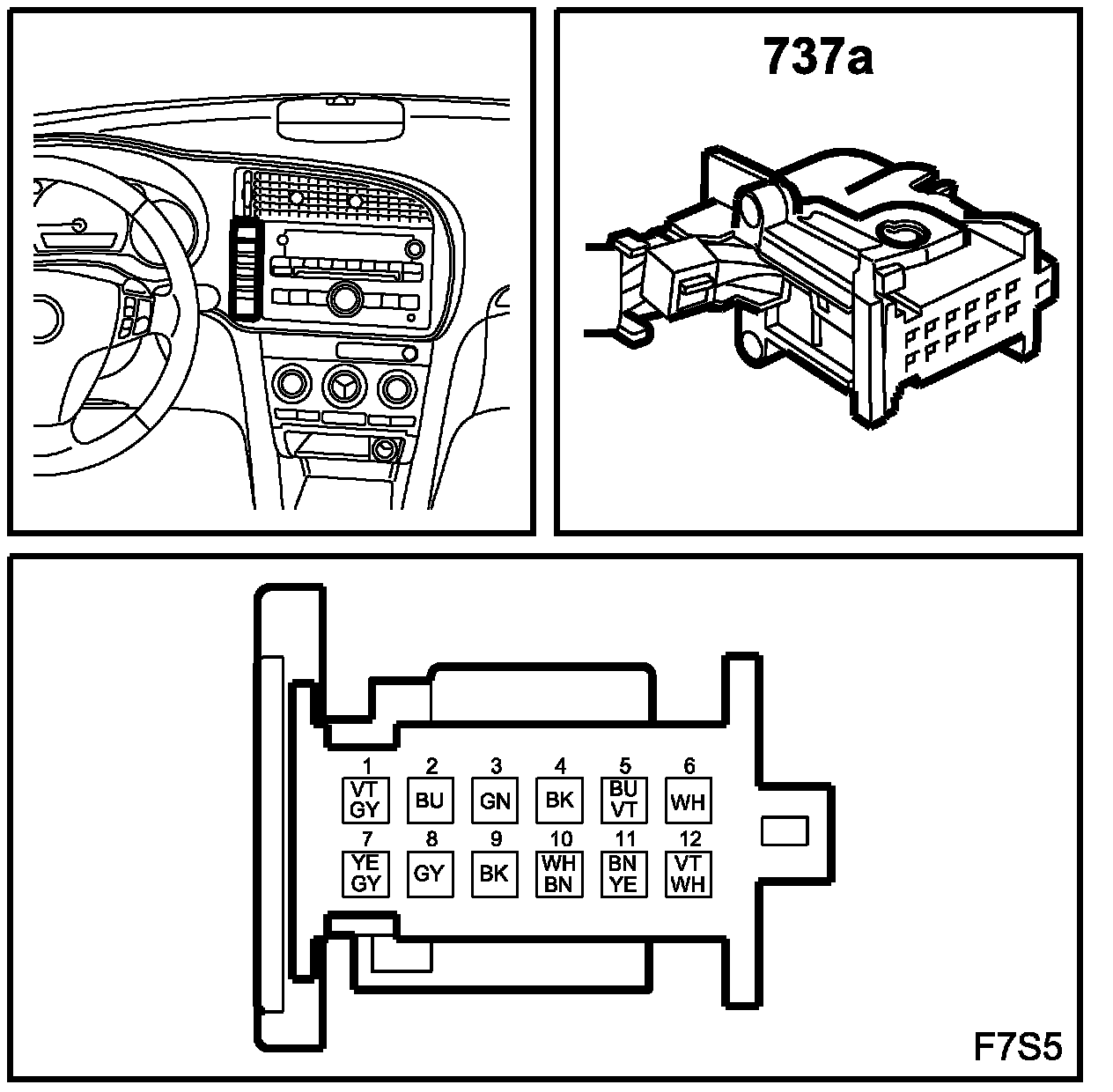

Switch Panel (737A)
Location:
on the dashboard panel next to the main instrument unit
Switch Panel (737a):
