Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display

Driver/Vehicle Information Display

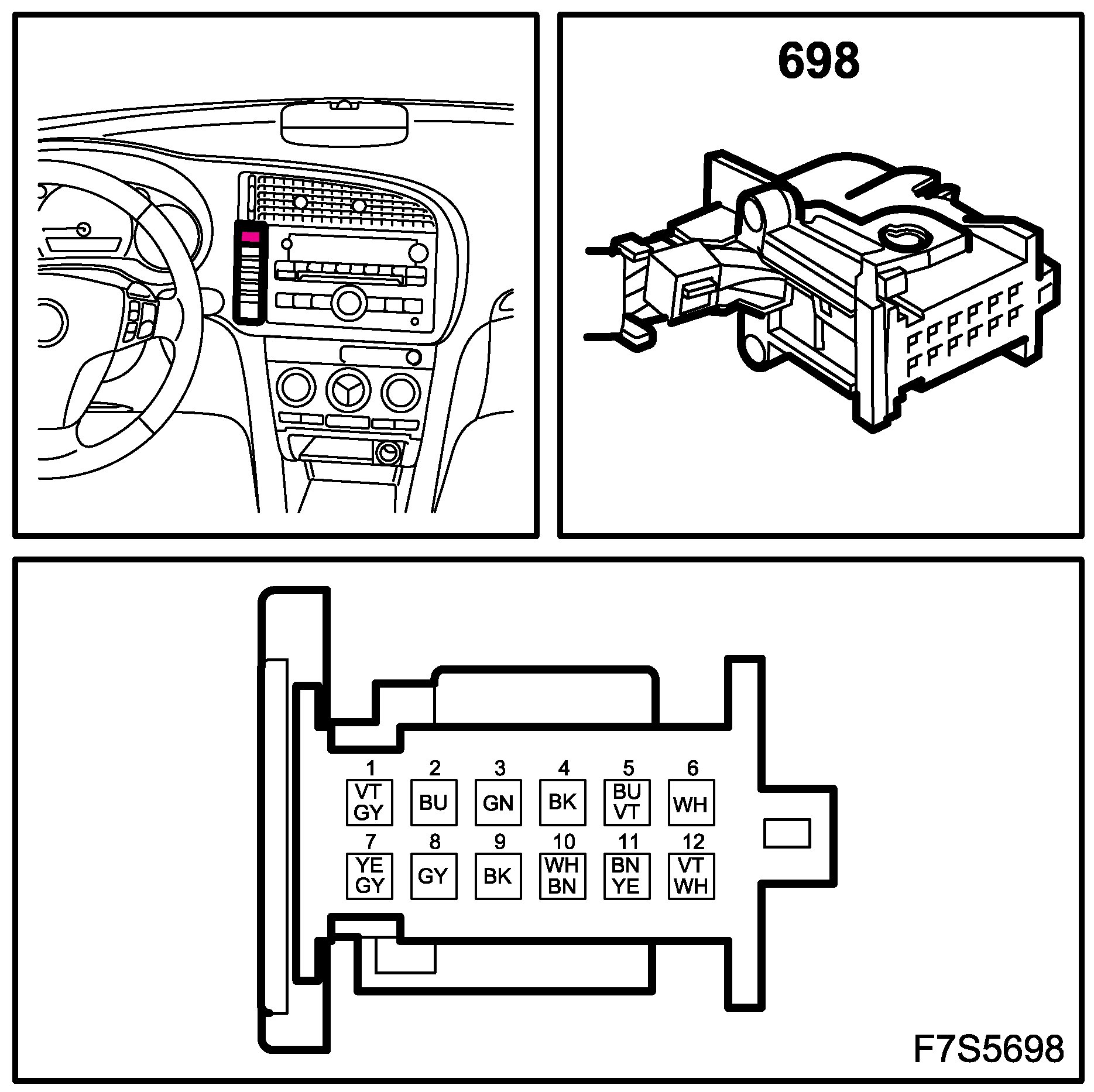

NIGHT PANEL Switch (698)

Location: integrated in switch panel (737a), on dashboard next to main instrument unit

NIGHT PANEL Switch (698):
