Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Vacuum Pump HVAC

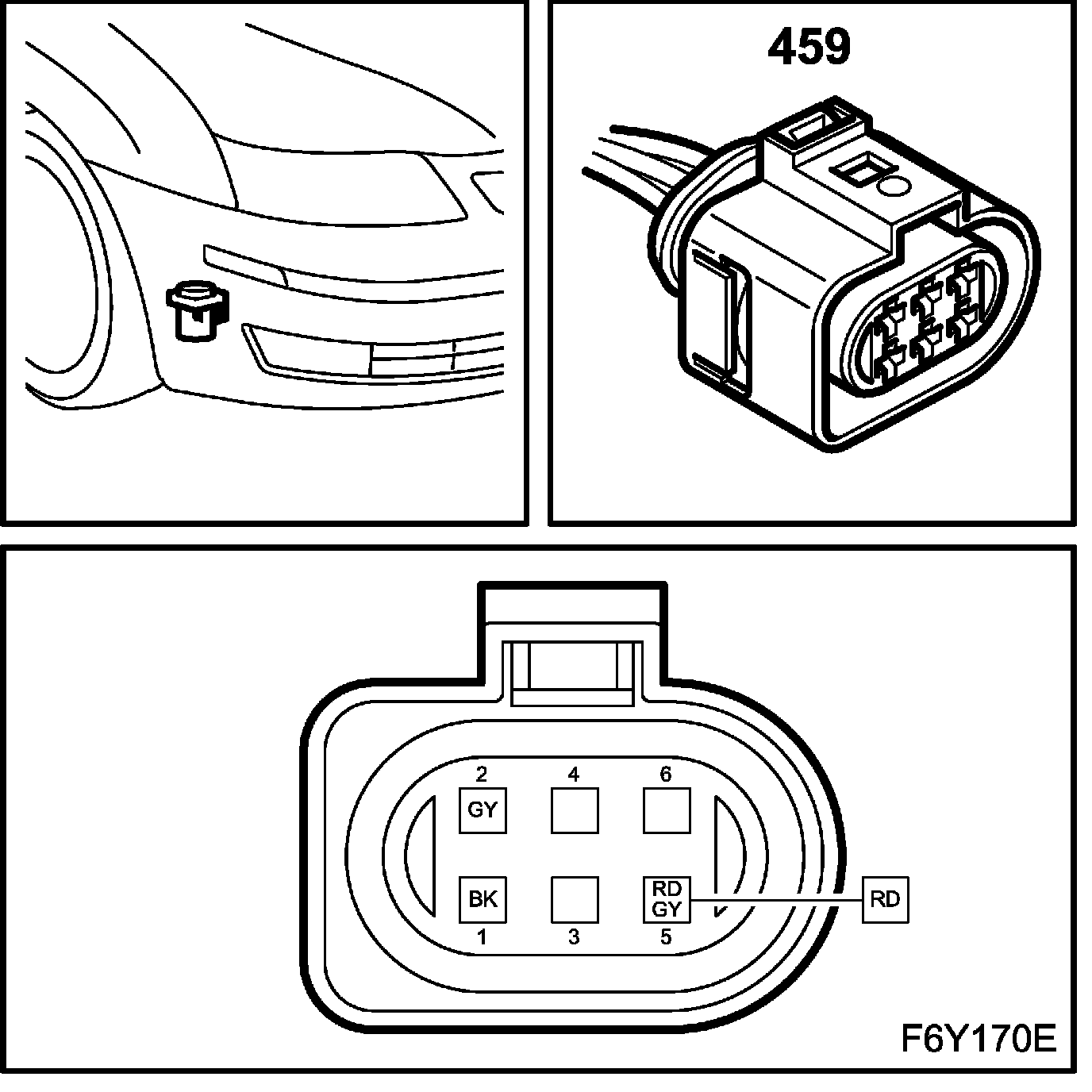

Vacuum Pump HVAC
Location:
in front part of right-hand wheel housing
Vacuum Pump Unit (459):
