Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Module HVAC

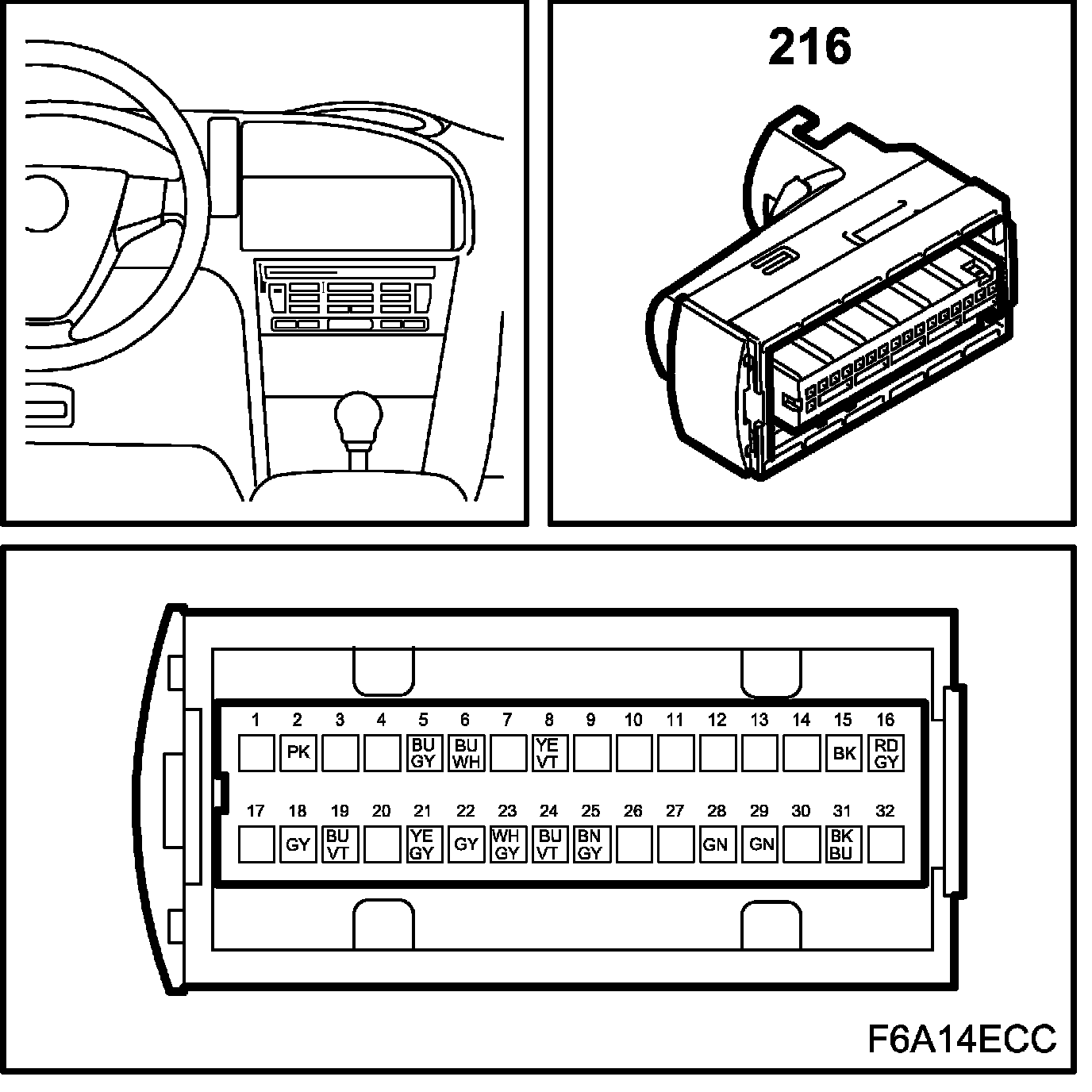

Control Module HVAC



Location: in the center of the dashboard

Automatic Climate Control (216):
