9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
>>
Xenon Lamp Ballast (663b)
Xenon Lamp Ballast (663b)
Xenon Lamp Ballast (663b)
Location:
under the headlamp assembly

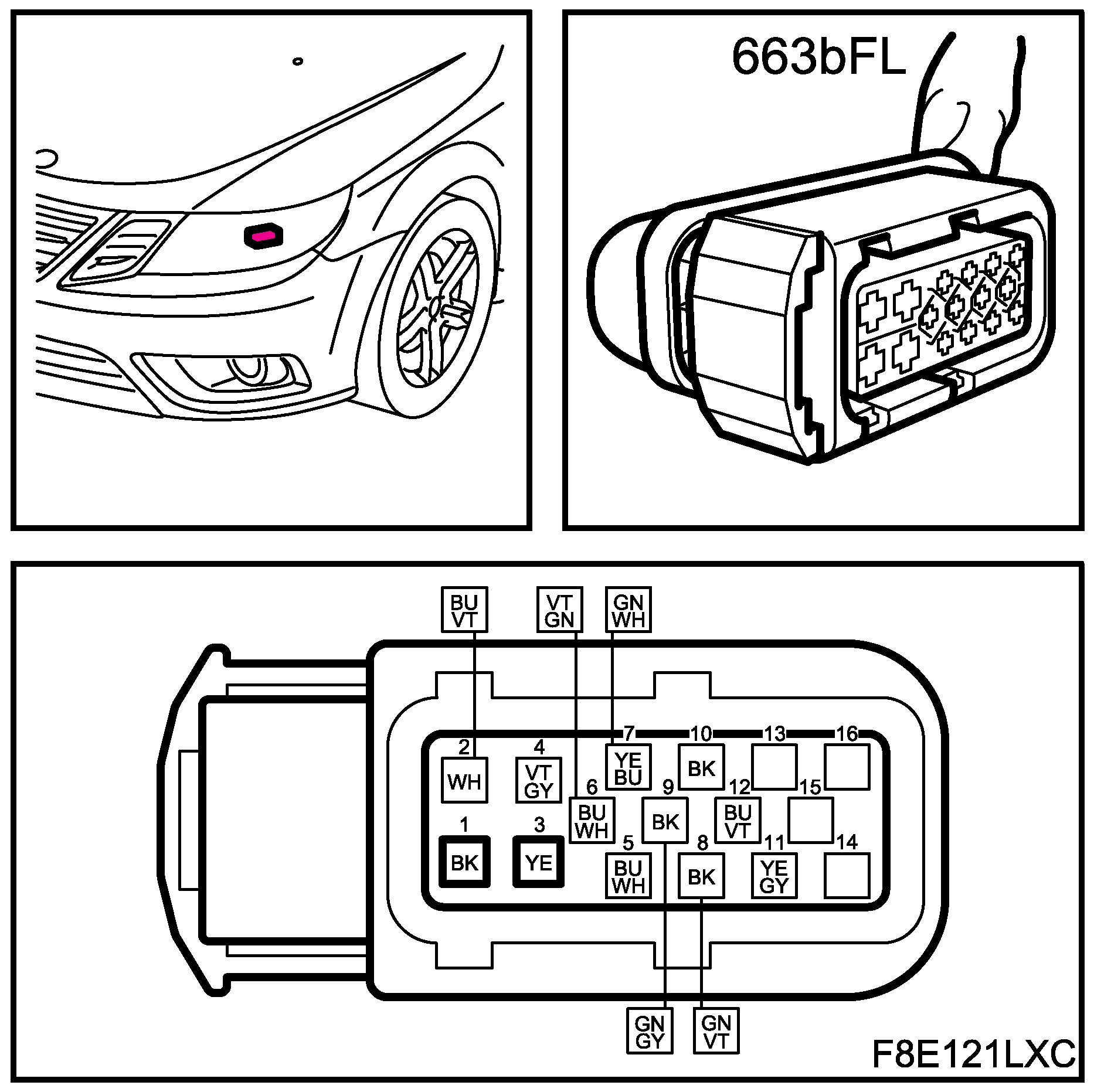

FL
Xenon Lamp Ballast (663b):

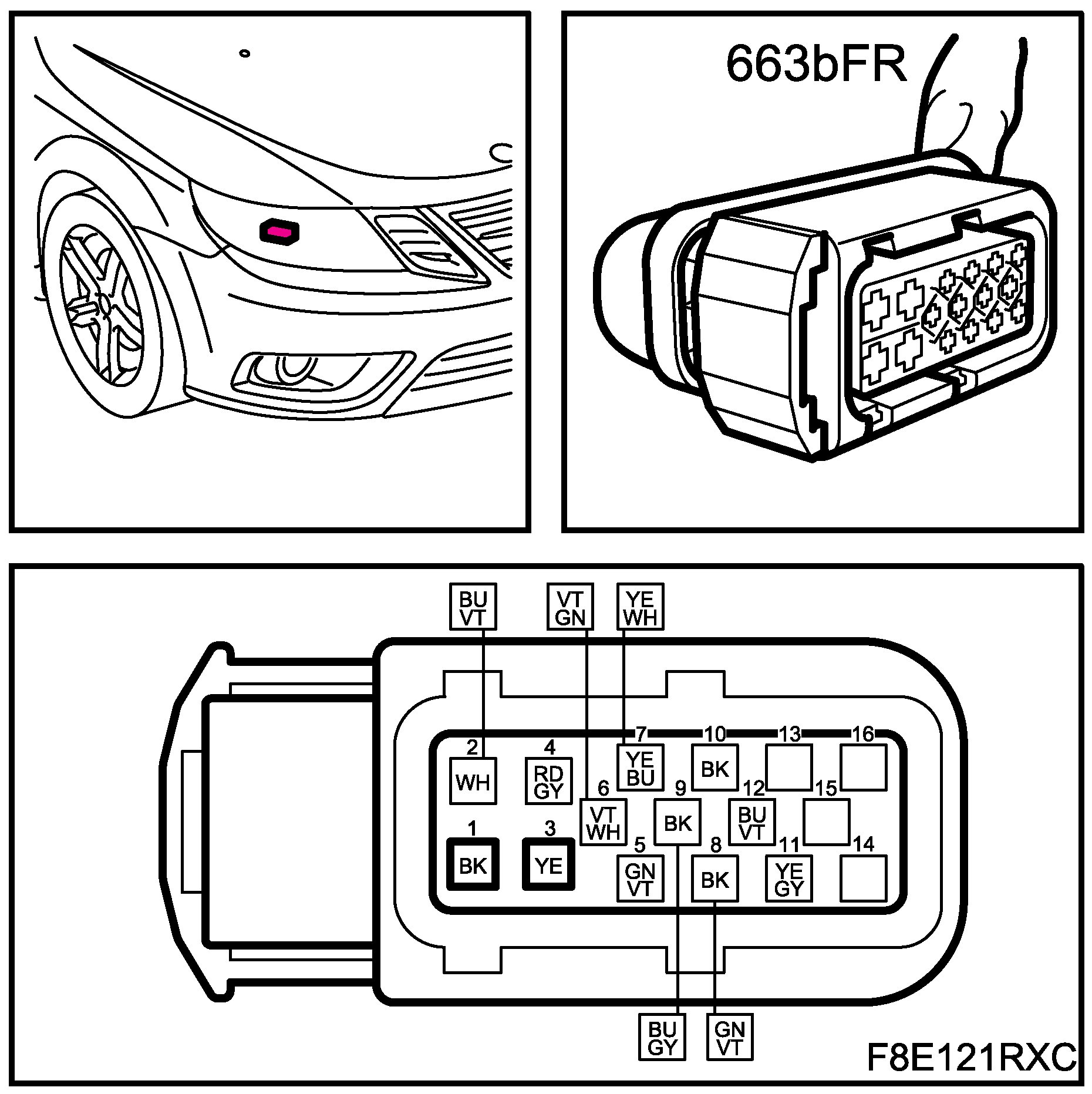

FR
Xenon Lamp Ballast (663b):
