Headlamp
>>
System Diagram
>>

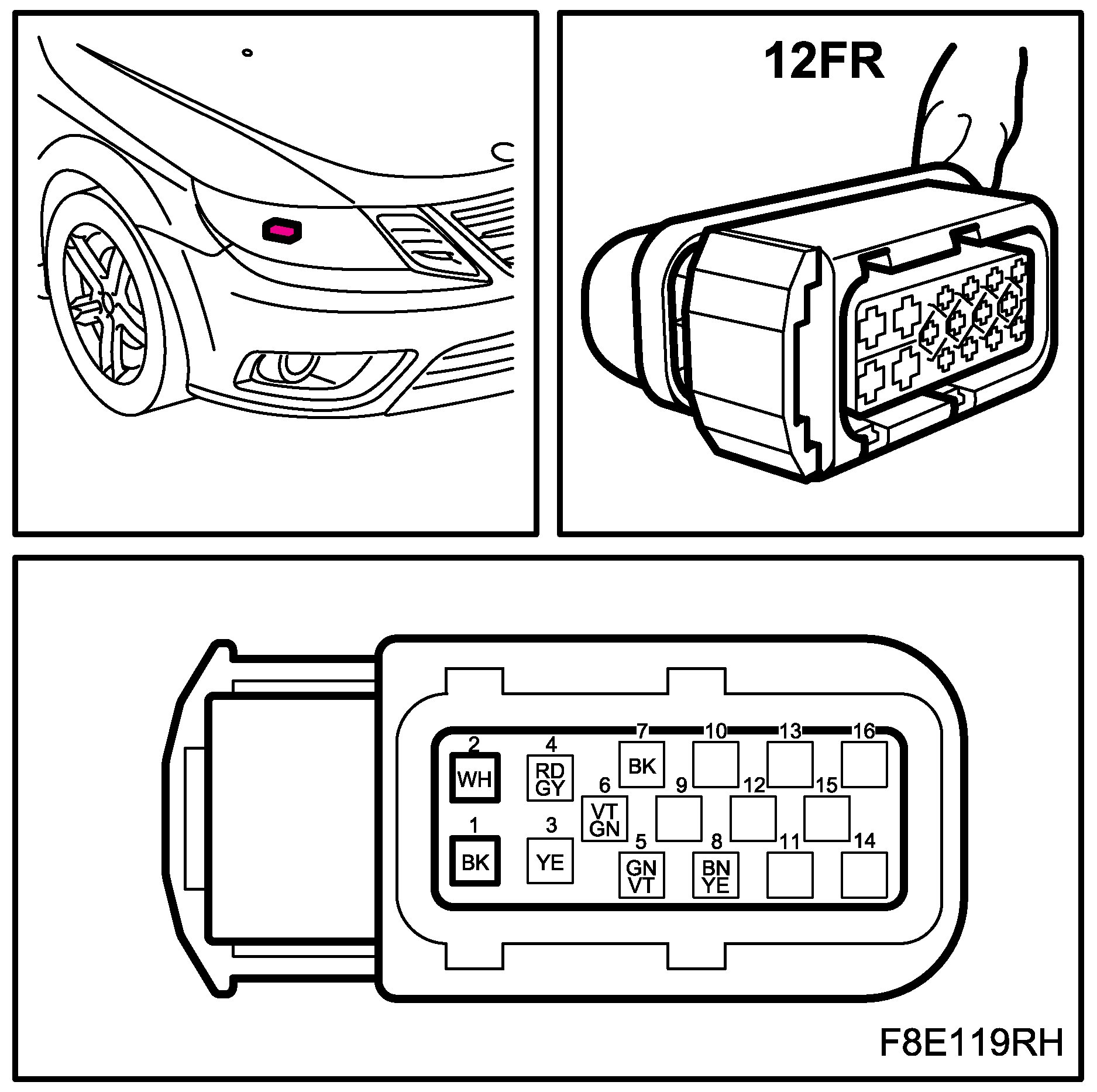

Right Dipped Beam Lamp (12FR)
Right Dipped Beam Lamp (12FR)
Right Dipped Beam Lamp (12FR)
Location:
in the headlamp module
Right Dipped Beam Lamp (12FR):
