Global Positioning System
>>
System Diagram
>>
CV
CV

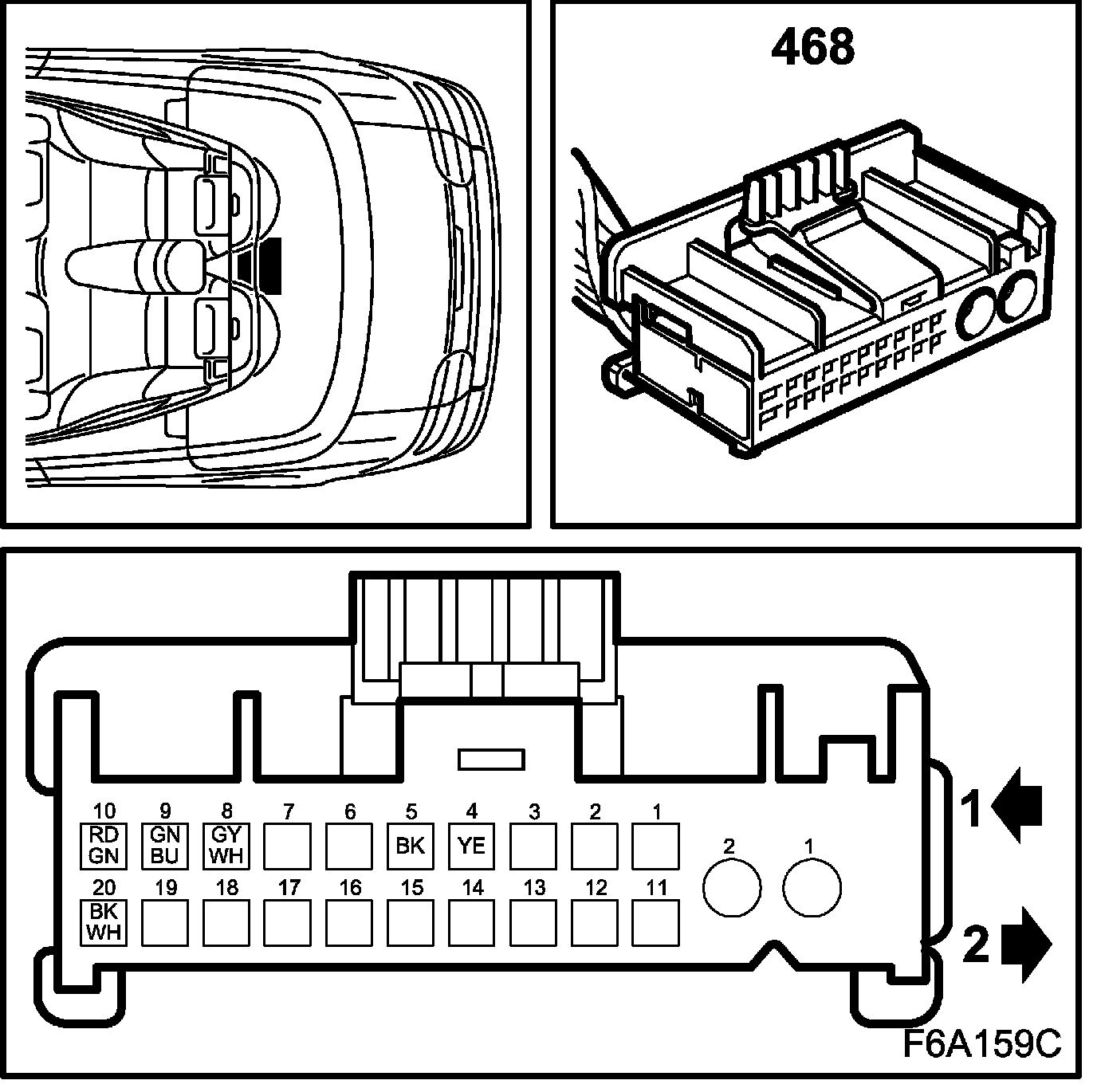

Location:
in front edge of luggage compartment
Unit, Telematics (468):
