OnStar Control Module (673) CV
OnStar Control Module (673) CV
Location:
in torsion box

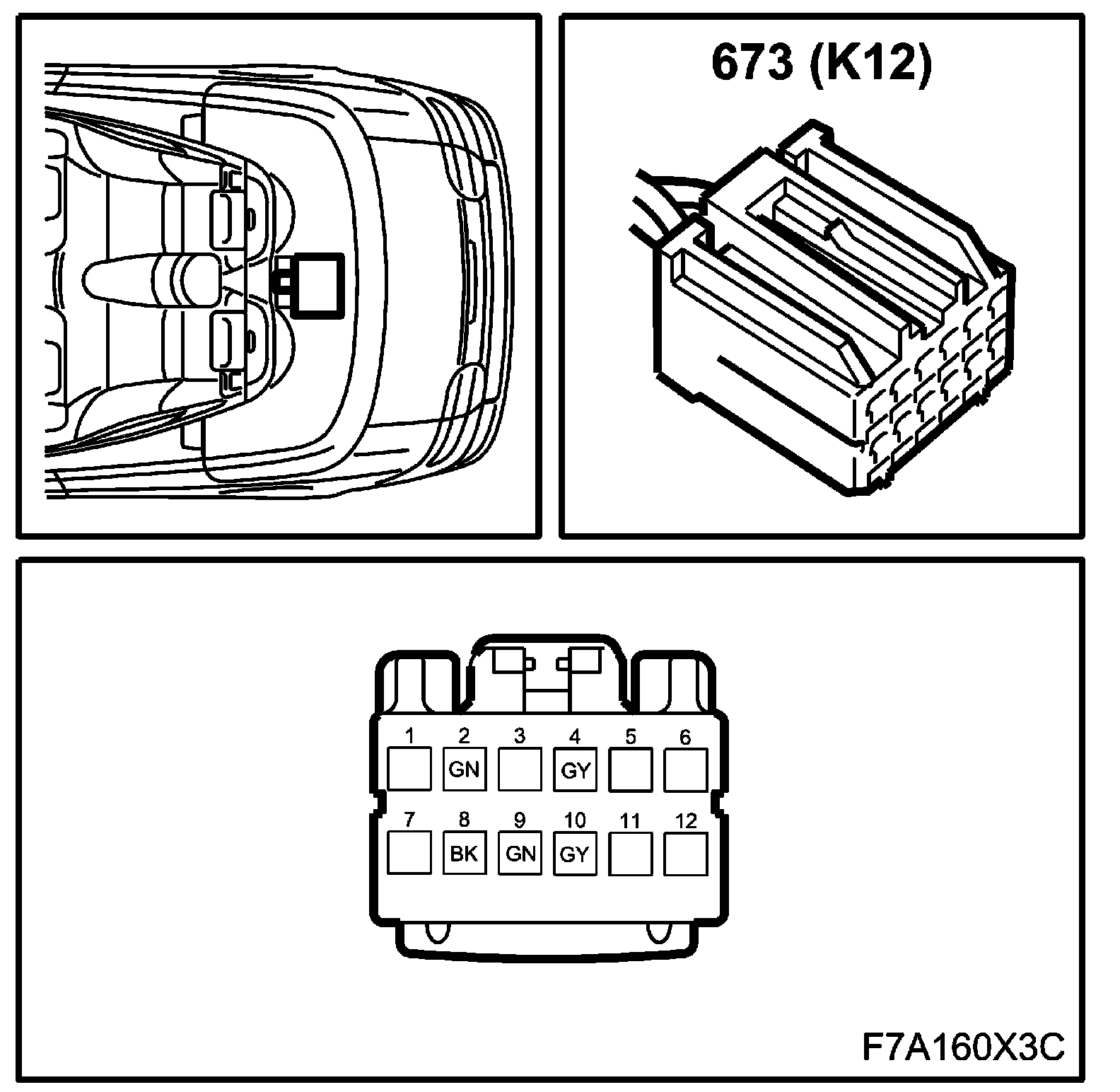

K12
OnStar Control Module (673):
K16A
OnStar Control Module (673):

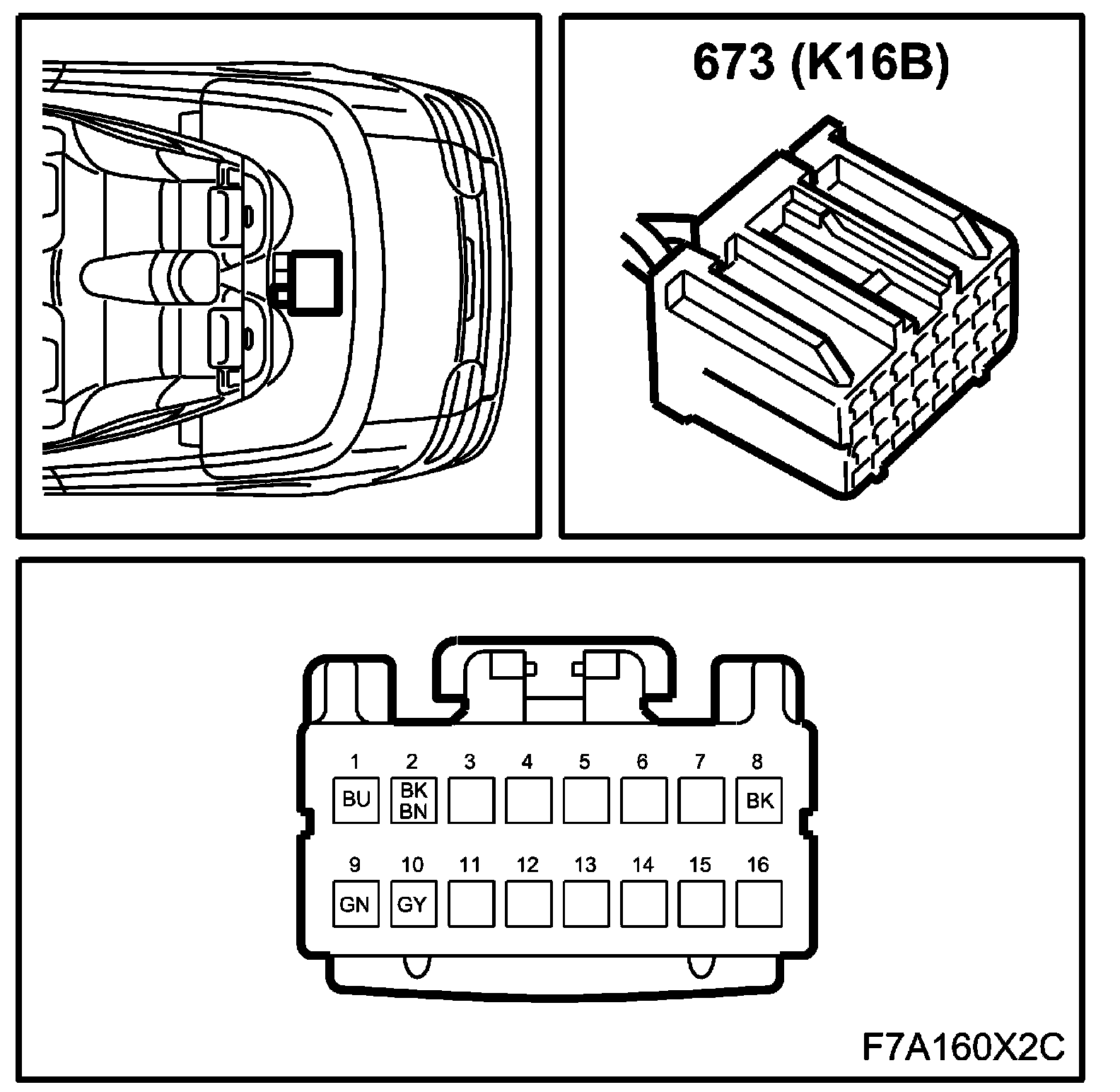

K16B
OnStar Control Module (673):
