Exhaust Gas Recirculation
Exhaust Gas Recirculation

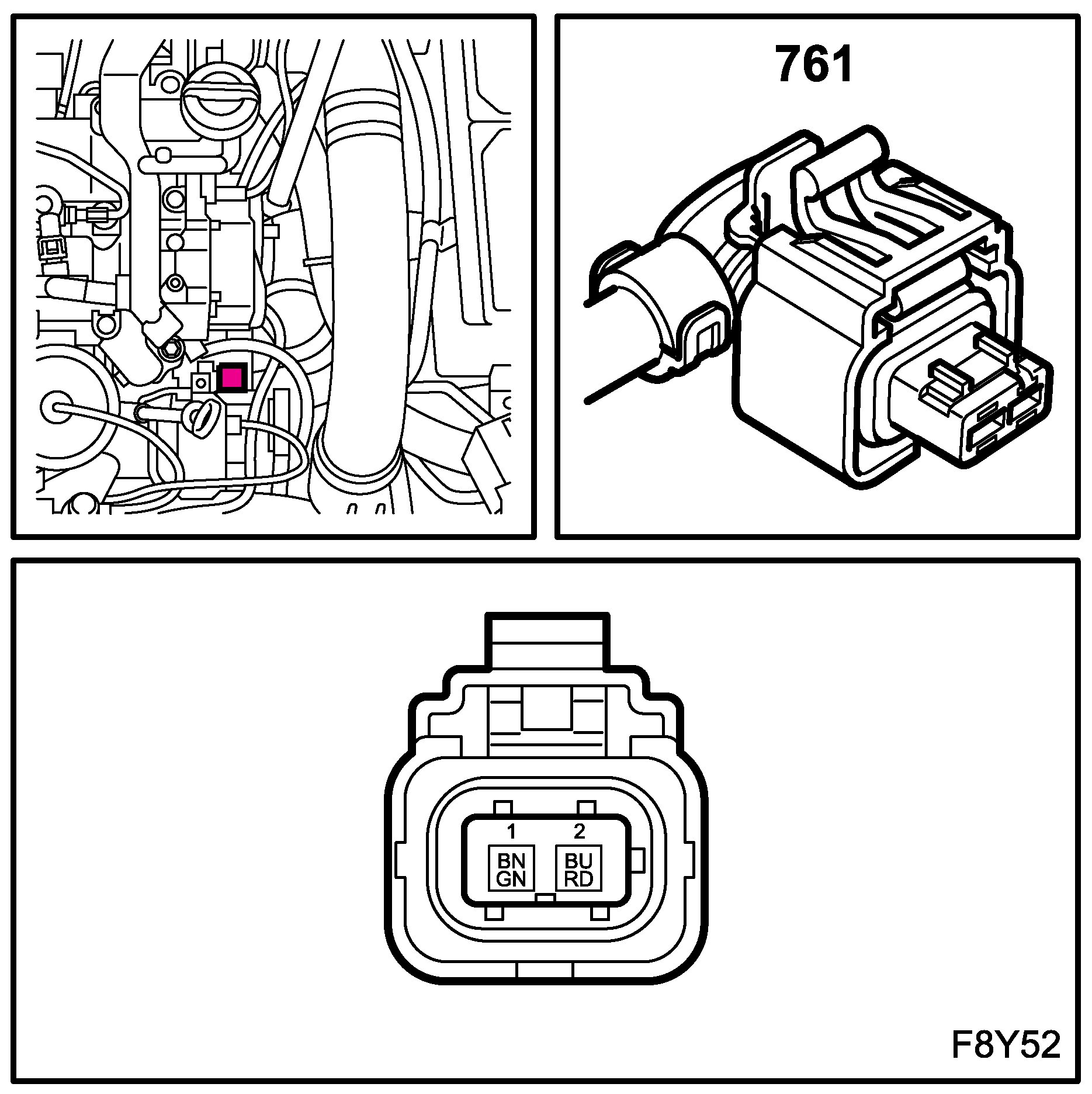

Solenoid Valve, Bypass EGR Cooling (761)
Location:
at the side of the dipstick tube
Solenoid Valve, Bypass EGR Cooling (761):
