Engine Control Module
>>

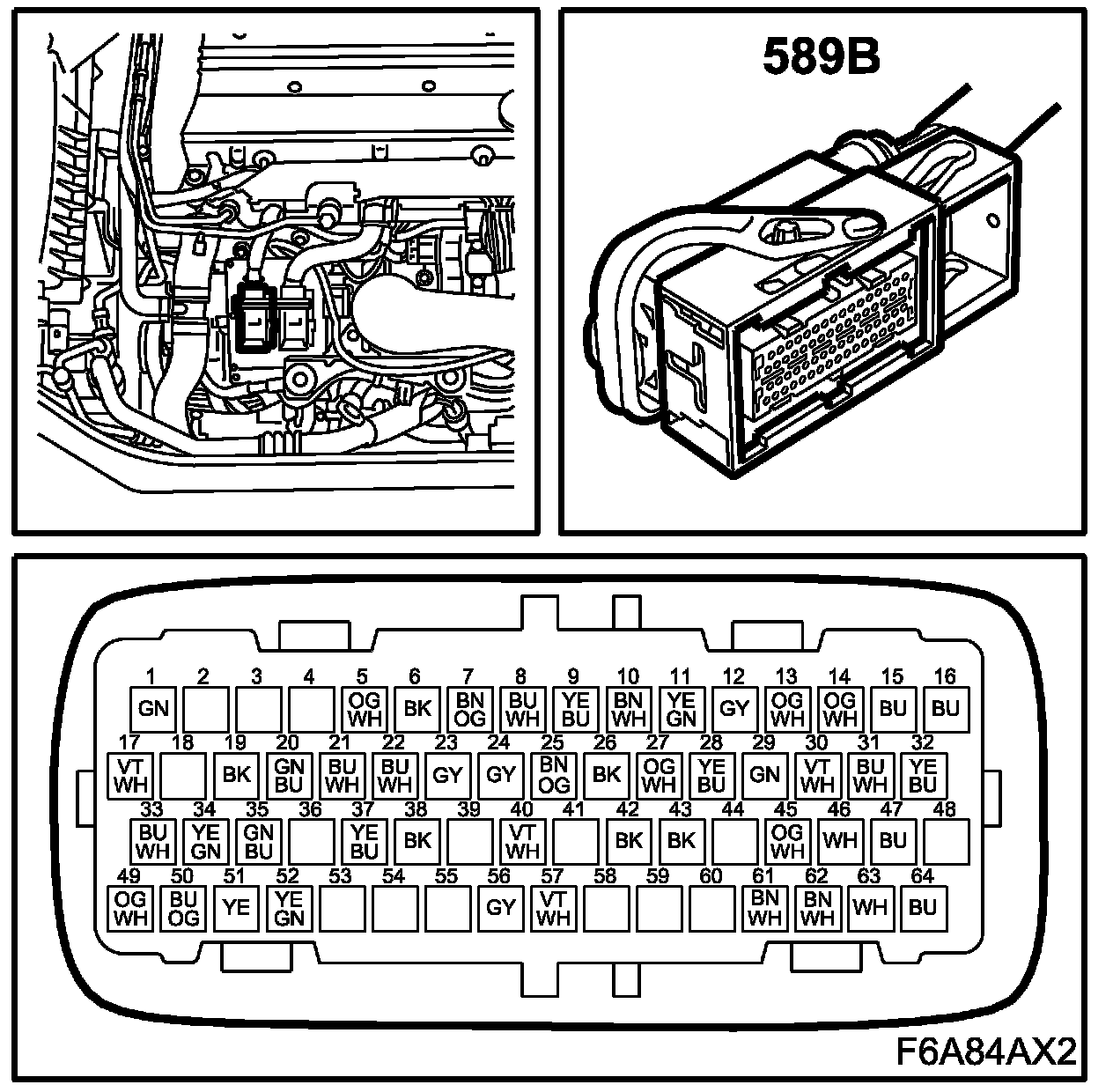

Control Module, Trionic, Switch B (589B)
Control Module, Trionic, Switch B (589B)
Location:
in front on the engine
Control Module, Trionic, B207, Switch B (589B):
