Engine Control Module
>>
Control Module, Trionic, Switch A (589A)
Control Module, Trionic, Switch A (589A)
Location
: engine front

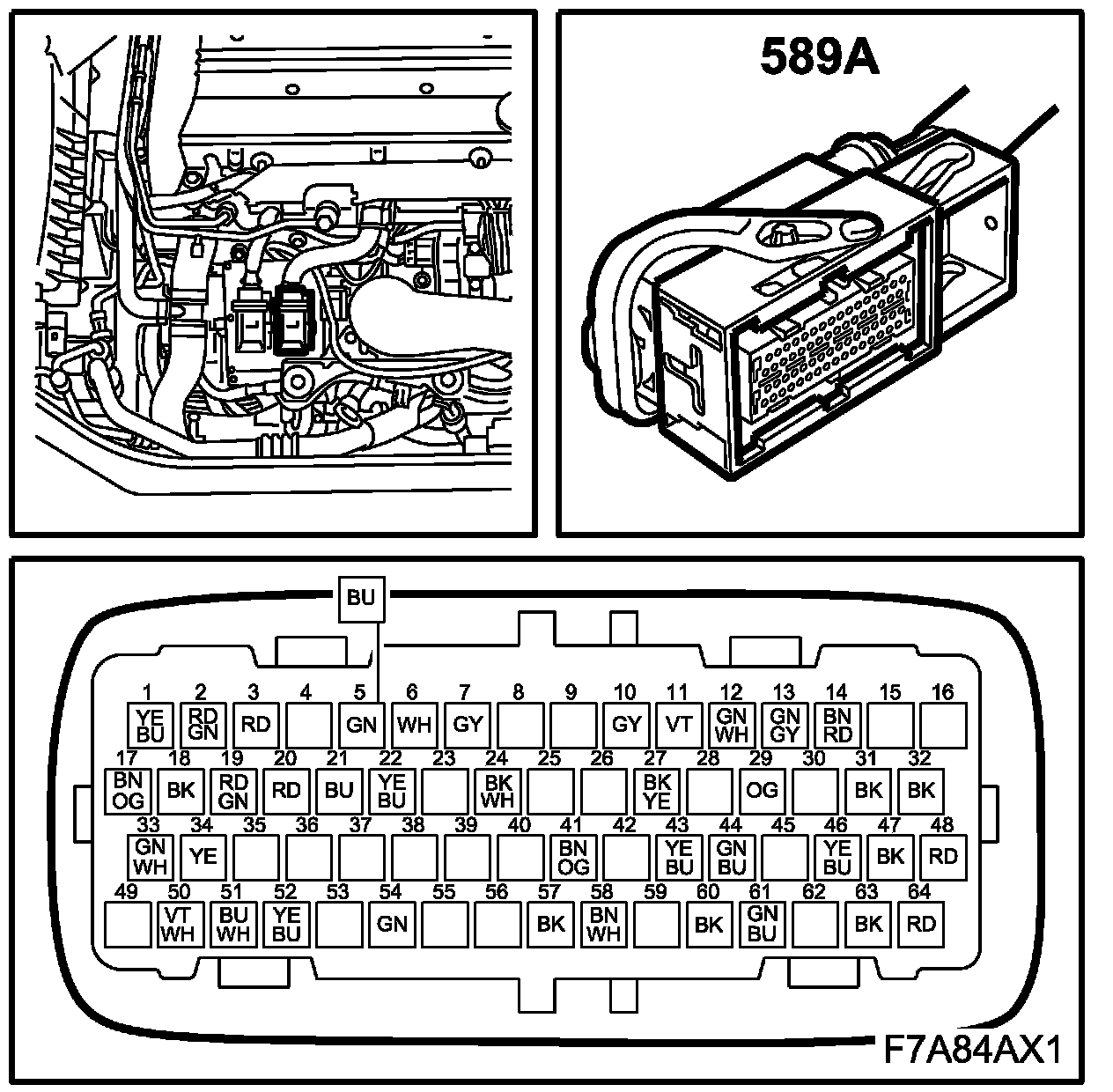

Control Module, Trionic, B207, Switch A (589A):
